Introduction
Vehicle engine 1.9 D 70cv
-
-
Disconnect the negative terminal of the battery. It has a "-" sign on it.
-
Use a 10mm wrench to loosen the retaining nut.
-
Put the pod aside.
-
-
-
In the same way as the previous step, remove the positive terminal marked with the “+” symbol.
-
Use a 10mm wrench.
-
-
-
The battery is held in place in its housing using a clamp.
-
Using a ratchet, a 150 mm extension and a 10 mm socket, remove the flange fixing screw.
-
-
-
Once the clamp is completely removed, the battery can be removed.
-

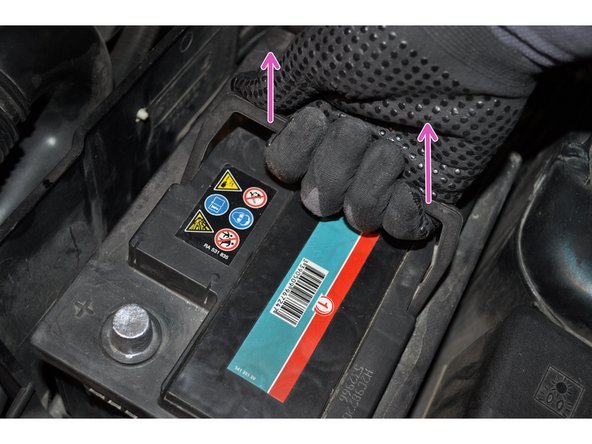

Grasp the battery handle and pull upwards.
-
-
-
Compare the features of the new battery and the old one.
-
Remove the protective covers from the new battery.
-
-
-
Place the battery in its location in the same way as the old one.
-
Replace the clamp and screw at the bottom of the tray. Check that the battery is properly held in place.
-
-
-
Tighten the positive terminal.
-
Then the negative terminal
-
Check for proper operation.
-
Drop off the old battery at an approved recovery center.
-
