  1.
Remove the wheel hub cover using the tool provided for this purpose.

To secure the vehicle, click on the link below: Securing the vehicle: removing and refitting the wheel
    • Remove the wheel hub cover using the tool provided for this purpose.

    • To secure the vehicle, click on the link below: Securing the vehicle: removing and refitting the wheel

    • Take advantage of the fact that the car is on the ground to slightly loosen the wheel studs.

    • Raise the car using a jack and then finish loosening the wheel studs.

    • Place the vehicle on a jack stand and remove the wheel.

    • Before starting the disassembly procedure, repeat the operation for the other side, so that the stabilizer bar is not supported.

  2.
Use the flat wrenches to loosen the bottom nut that is connected to the stabilizer bar
    • Use the flat wrenches to loosen the bottom nut that is connected to the stabilizer bar

    • Repeat the operation to loosen the upper nut located on the strut.

    • The stabilizer bar link is ready to be removed to position the new one

    • IT IS IMPORTANT TO CHECK THE DIRECTION OF POSITIONING

  3.
Place the used one next to the new one to check if they match.

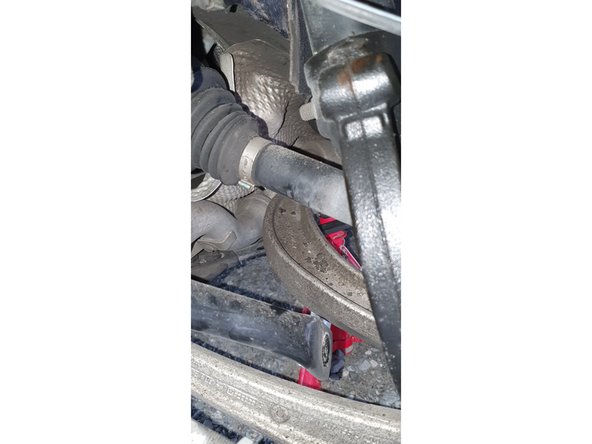

Be careful when reassembling, the silent blocks are different

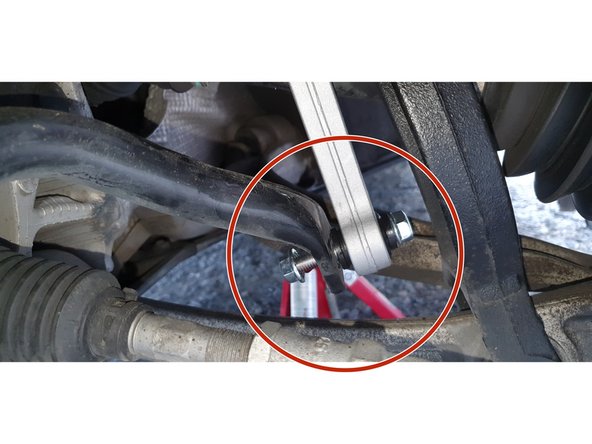

Apply thread lock to the new screws
    • Place the used one next to the new one to check if they match.

    • Be careful when reassembling, the silent blocks are different

    • Apply thread lock to the new screws

    • Start by tightening the top nut on the shock absorber strut.

    • Then tighten the bottom nut

    • Reassemble the wheel

Finish Line

One other person completed this guide.

Alban BRAZ

Member since: 10/24/2016

919 Reputation

9 Guides authored

One Comment

I did an a4 b8 on mine

The first side was done in 5 minutes but on the second the top screw wouldn't go in.

However, I had taken my wheels off and put them on jack stands.

Another thing I hope I put the connecting rods in the right direction and didn't make a mistake

How do you know it's mounted correctly? Do you hear anything? The steering became harder.
