Introduction

How to change the air temperature sensor on Peugeot 106 1.4i (tutorial made on TU3J2)

Video Overview

  1. The air temperature sensor is located on the air box cover Disconnect the connector by pinching and pulling on it Disconnect the connector by pinching and pulling on it

    • The air temperature sensor is located on the air box cover

    • Disconnect the connector by pinching and pulling on it

    Edit

  2. With the help of a key of 19, loosen the probe With the help of a key of 19, loosen the probe

    • With the help of a key of 19, loosen the probe

    Edit

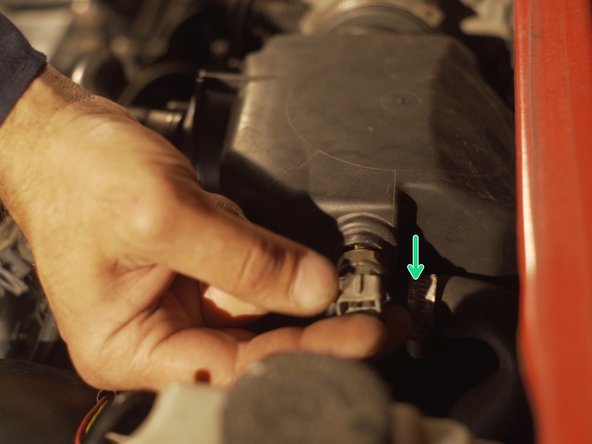

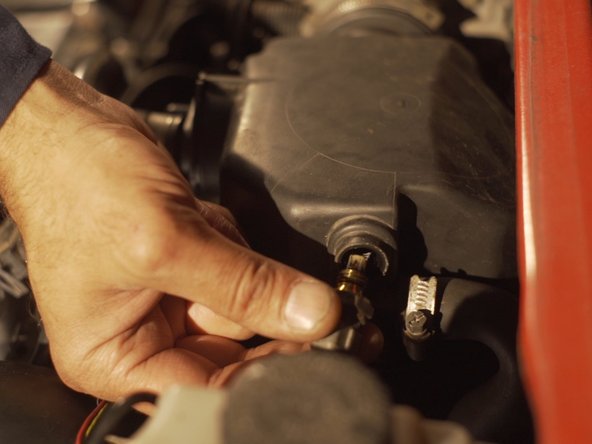

  3. Unscrew the probe and remove it Unscrew the probe and remove it

    • Unscrew the probe and remove it

    Edit

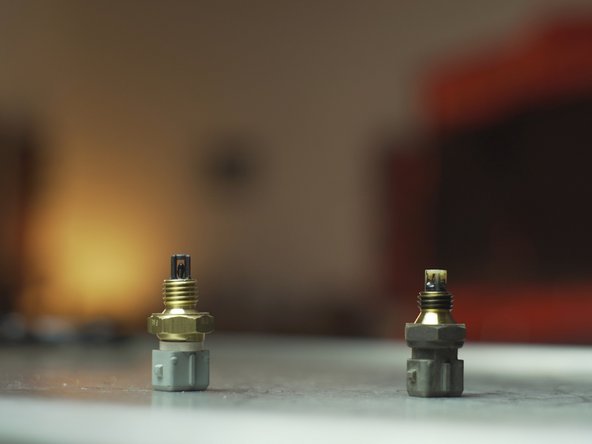

  4. Compare the dimensions of the new probe with the old one

    • Compare the dimensions of the new probe with the old one

    Edit

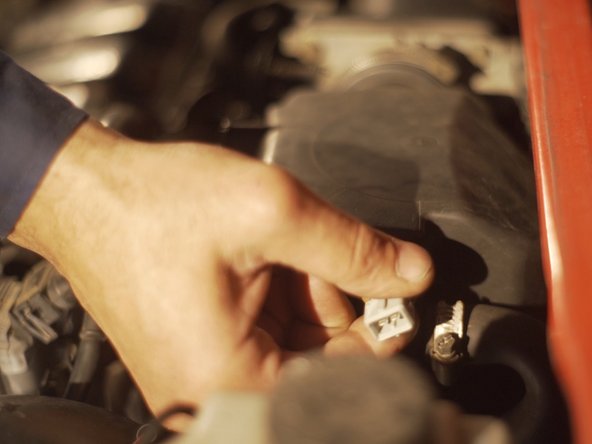

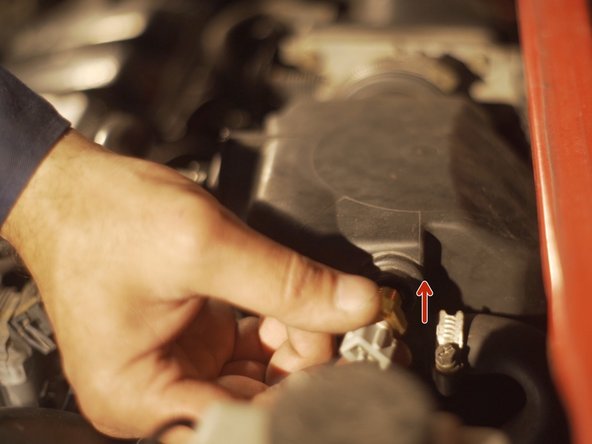

  5. Screw the new probe onto the air box cover Screw the new probe onto the air box cover

    • Screw the new probe onto the air box cover

    Edit

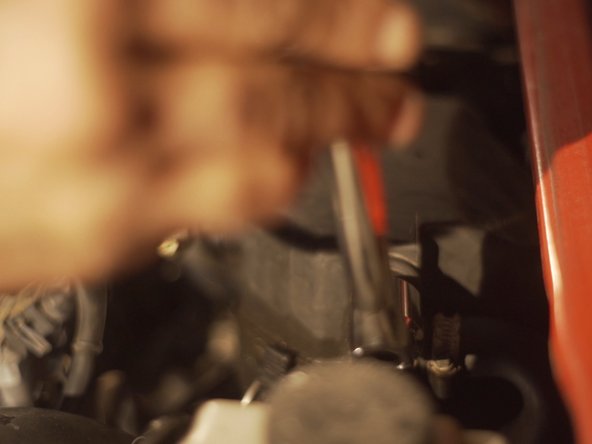

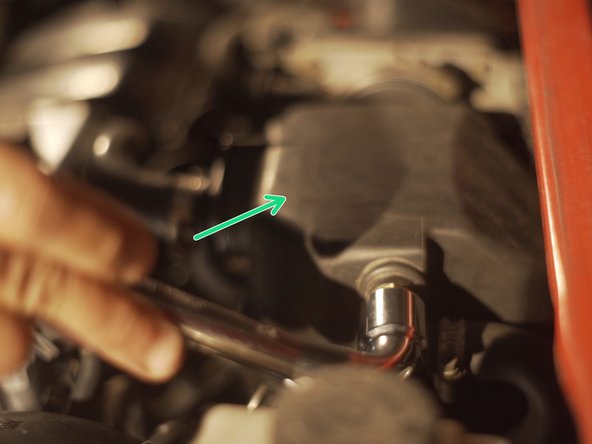

  6. Tighten the probe with the key of 19 Tighten the probe with the key of 19

    • Tighten the probe with the key of 19

    Edit

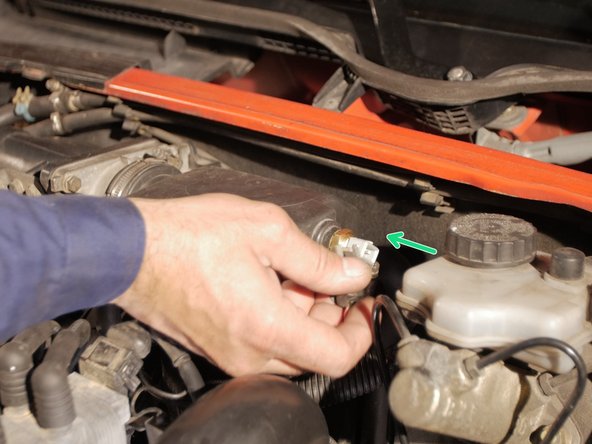

  7. Reconnect the connector Reconnect the connector

    • Reconnect the connector

    Edit
Finish Line
