Service (Drain and change of all filters) on Kia Sportage

Written By: dlychar (and one other contributor)
  • Comments: 17
  • Favorites: 0
  • Completions: 3

Difficulty

Moderate

Steps

29

Time Required

02:00:00

Sections

1

Flags

1

Ce tutoriel a été créé par la communauté

Ce tutoriel a été créé par la communauté

User contributed

Introduction

tutorial made on Kia Sportage 1.7 CRDI 115

Warm up the vehicle before starting the oil change so that the oil is more fluid.

  1. Raise the vehicle using the jack and secure it on stands Open the hood

    • Raise the vehicle using the jack and secure it on stands

    • Open the hood

    • Remove the engine cover by pulling it upwards

    Edit

  2. Remove the oil dipstick and filler cap Remove the oil dipstick and filler cap

    • Remove the oil dipstick and filler cap

    Edit

  3. The oil filter is located here The oil filter is located here

    • The oil filter is located here

    Edit

  4. Remove the oil filter using the extension ratchet and the 24 socket. Remove the oil filter using the extension ratchet and the 24 socket. Remove the oil filter using the extension ratchet and the 24 socket.

    • Remove the oil filter using the extension ratchet and the 24 socket.

    Edit

  5. Remove the screws and fixing clips Remove the under-engine plate

    • Remove the screws and fixing clips

    • Remove the under-engine plate

    Edit

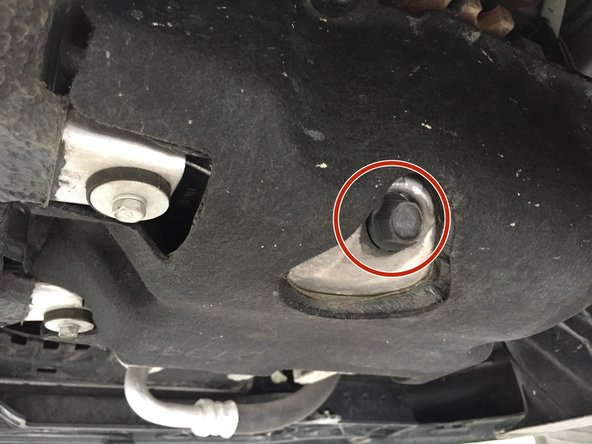

  6. Place a tray under the vehicle Using the 17 mm flat wrench, unscrew the drain plug. Using the 17 mm flat wrench, unscrew the drain plug.

    • Place a tray under the vehicle

    • Using the 17 mm flat wrench, unscrew the drain plug.

    Edit

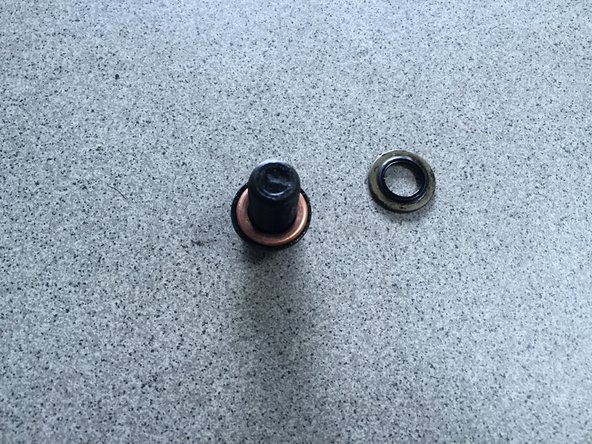

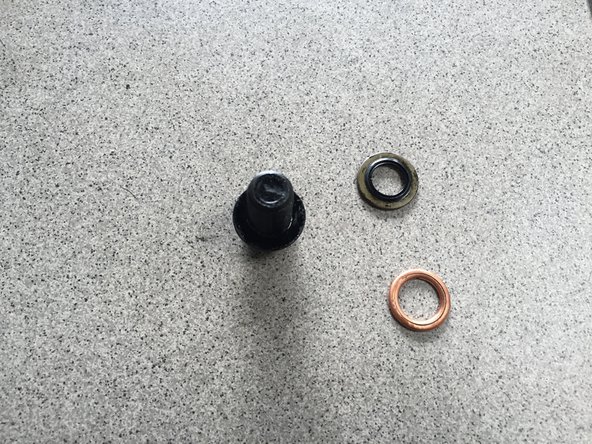

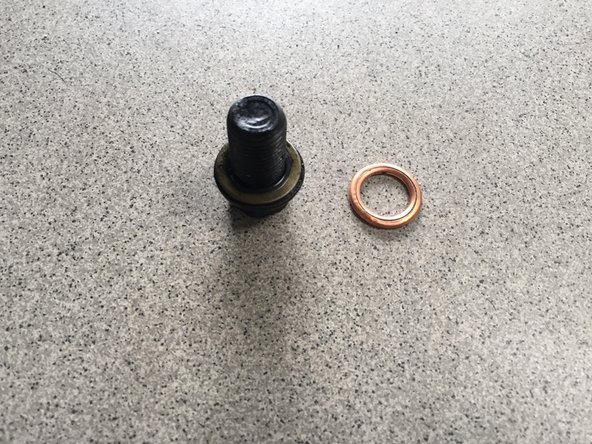

  7. Replace the seal Replace the seal Replace the seal

    • Replace the seal

    Edit

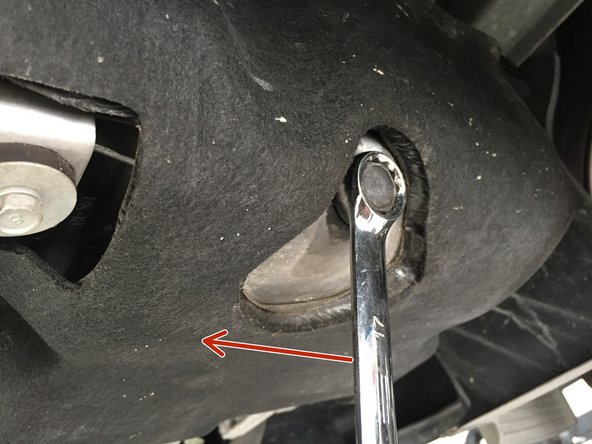

  8. Replace the drain plug with the new copper gasket. Tighten it using the 17 mm flat wrench. Tighten it using the 17 mm flat wrench.

    • Replace the drain plug with the new copper gasket.

    • Tighten it using the 17 mm flat wrench.

    Edit

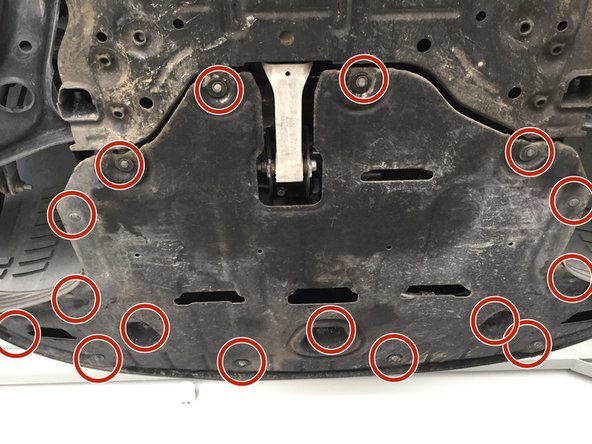

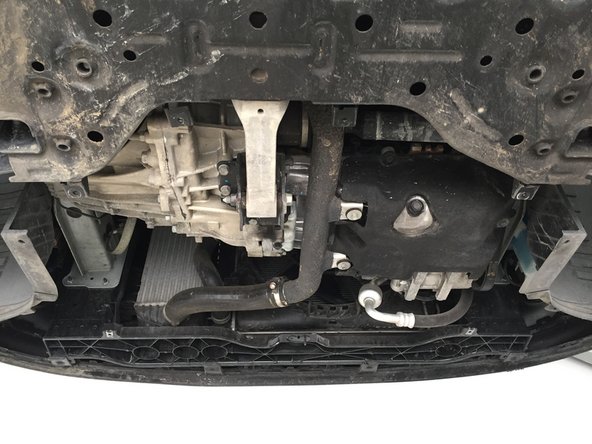

  9. Reassemble the plate under the engine Replace the clips and screws

    • Reassemble the plate under the engine

    • Replace the clips and screws

    Edit

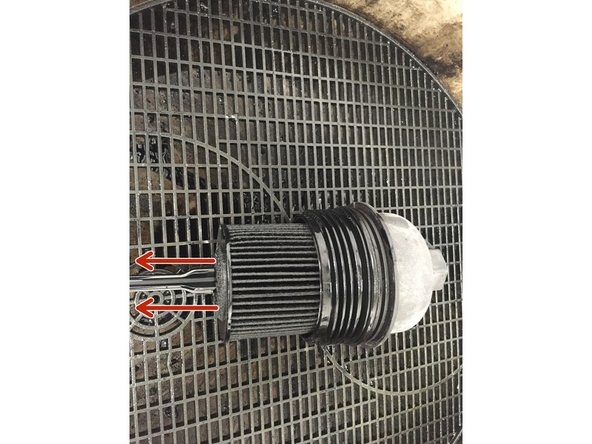

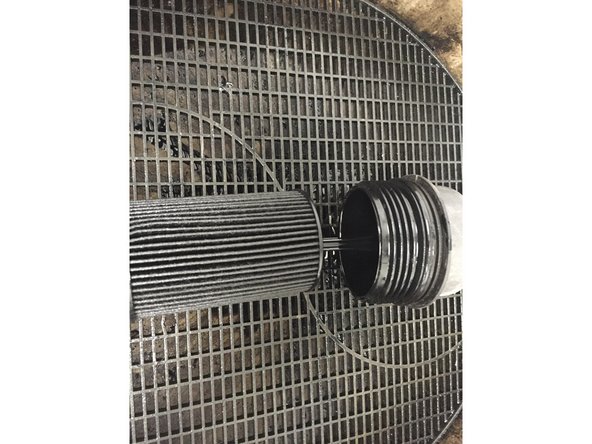

  10. Remove the oil filter cartridge Remove the oil filter cartridge

    • Remove the oil filter cartridge

    Edit

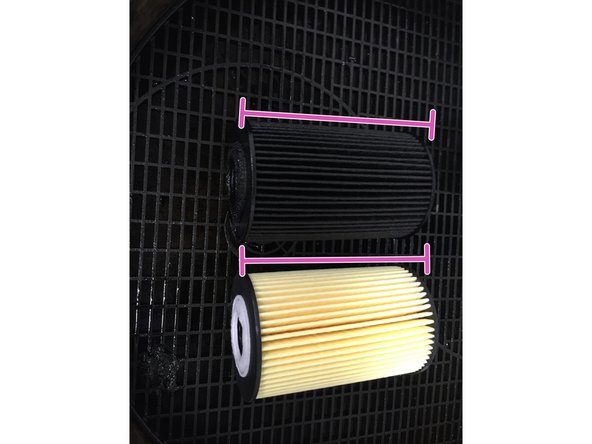

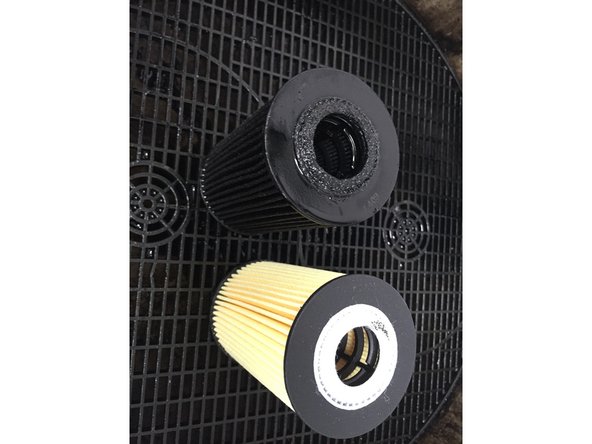

  11. Check the correspondence between the old and new oil filters Check the correspondence between the old and new oil filters

    • Check the correspondence between the old and new oil filters

    Edit

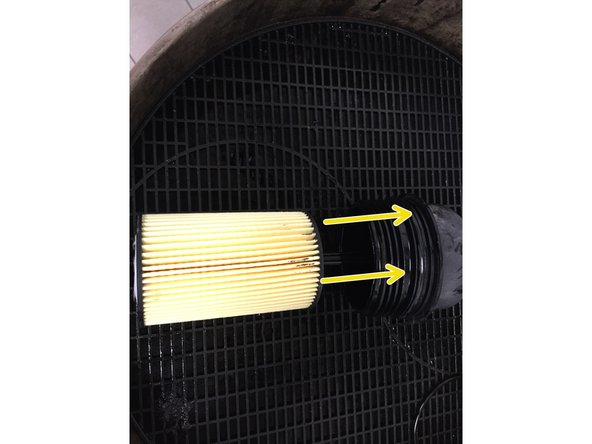

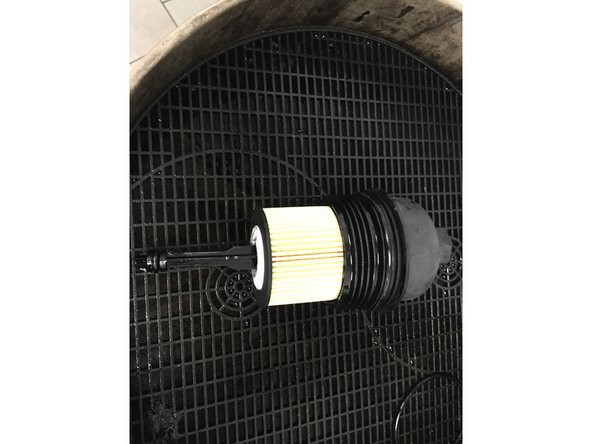

  12. Replace the oil filter gasket Install the new filter cartridge Install the new filter cartridge

    • Replace the oil filter gasket

    • Install the new filter cartridge

    Edit

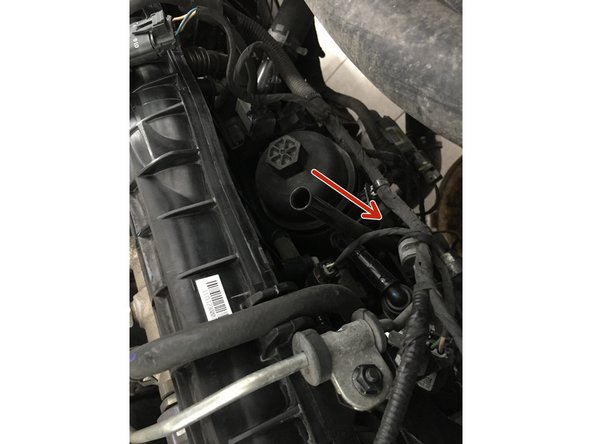

  13. Reinstall the oil filter Tighten it using the ratchet and the 24 socket.

    • Reinstall the oil filter

    • Tighten it using the ratchet and the 24 socket.

    Edit

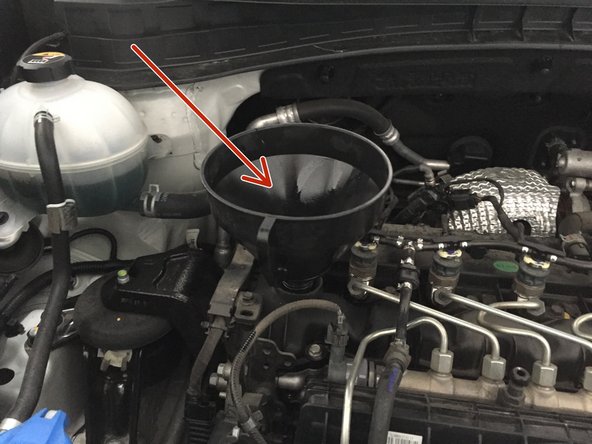

  14. Pour the oil recommended by the manufacturer into the engine through the filler hole. Check the oil level with the dipstick Replace the dipstick and cap then start the engine to fill the oil filter

    • Pour the oil recommended by the manufacturer into the engine through the filler hole.

    • Check the oil level with the dipstick

    • Replace the dipstick and cap then start the engine to fill the oil filter

    • BE CAREFUL NOT TO EXCEED THE MAXIMUM LEVEL

    Edit

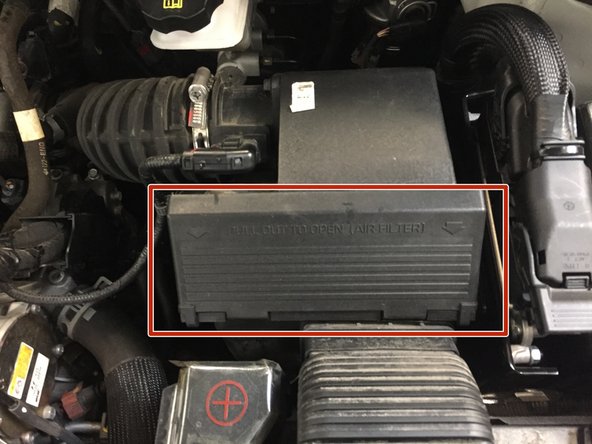

  15. The air filter is located here The air filter is located here

    • The air filter is located here

    Edit

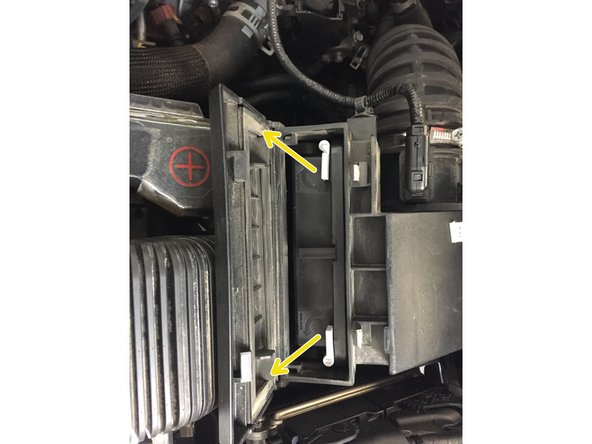

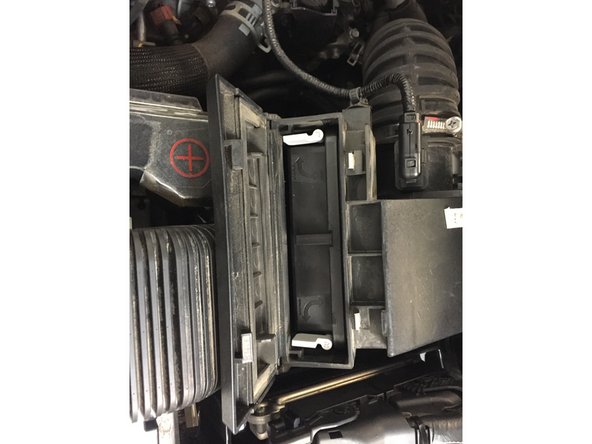

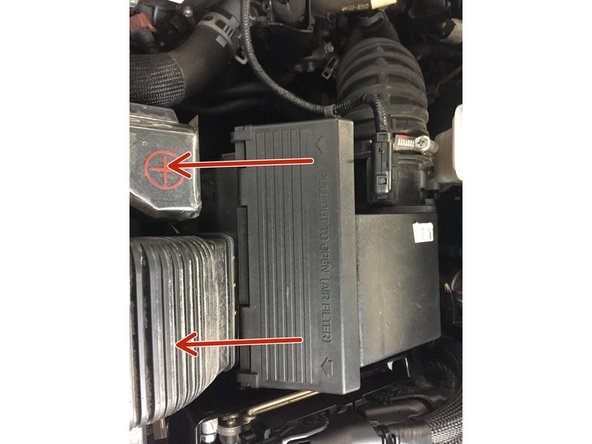

  16. Open the air box by pulling towards you Turn the retaining clips to release the filter Turn the retaining clips to release the filter

    • Open the air box by pulling towards you

    • Turn the retaining clips to release the filter

    Edit

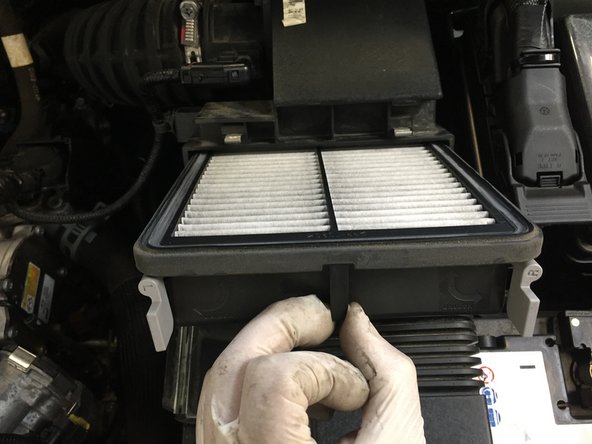

  17. Remove the air filter by pulling towards you Remove the air filter by pulling towards you

    • Remove the air filter by pulling towards you

    Edit

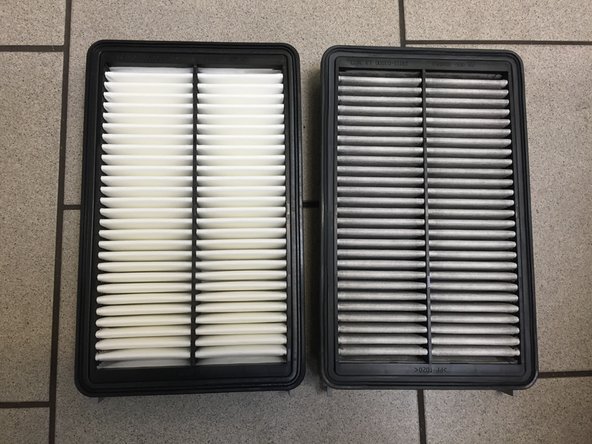

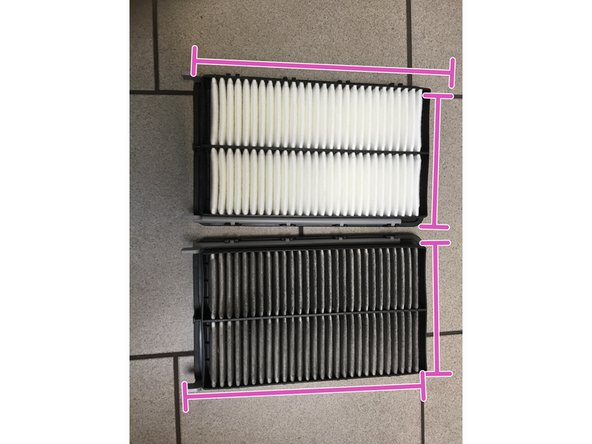

  18. Check the dimensions between the old and new air filter (length, width, shape) Check the dimensions between the old and new air filter (length, width, shape)

    • Check the dimensions between the old and new air filter (length, width, shape)

    Edit

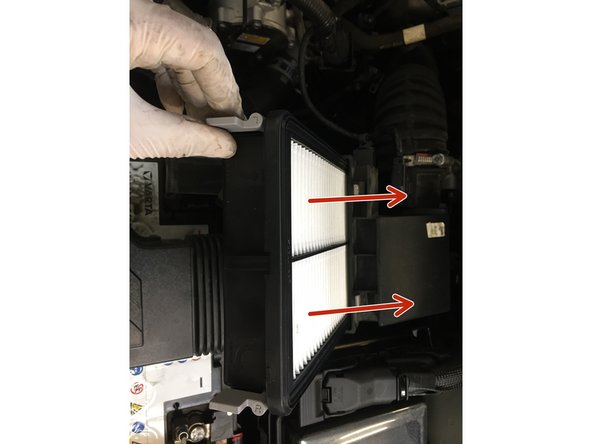

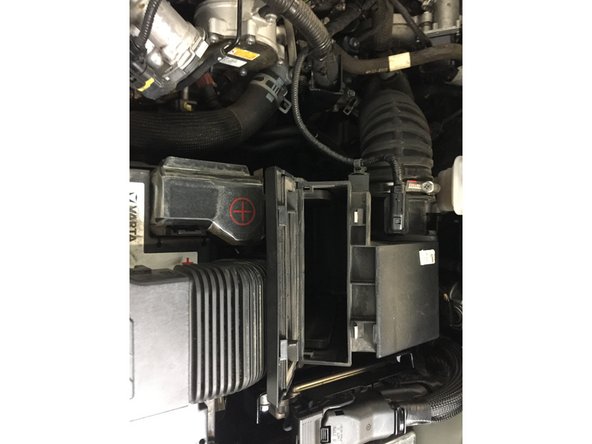

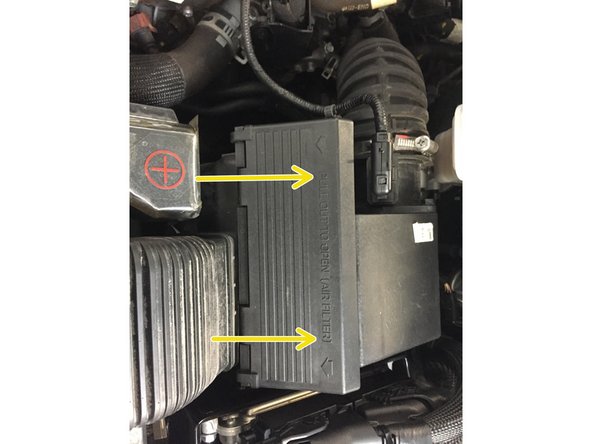

  19. Install the new filter turn the clips to lock the filter Close the air box

    • Install the new filter

    • turn the clips to lock the filter

    • Close the air box

    Edit

  20. The filter is located here The filter is located here

    • The filter is located here

    Edit

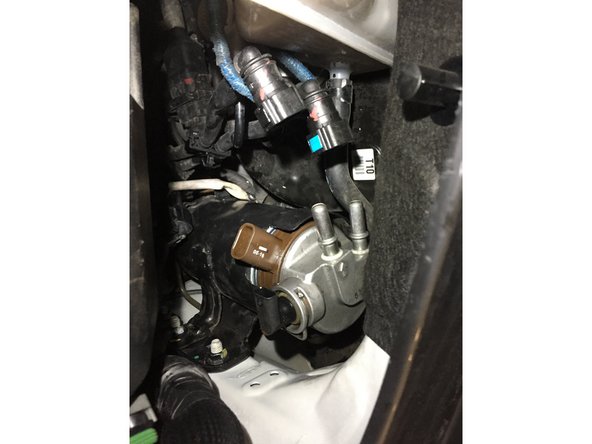

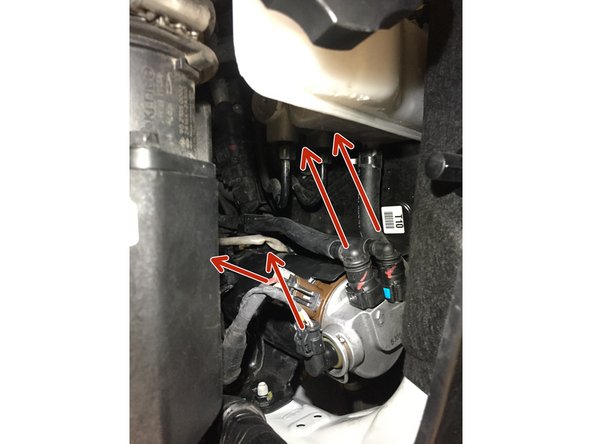

  21. Disconnect the hoses and the sensor Disconnect the hoses and the sensor

    • Disconnect the hoses and the sensor

    Edit

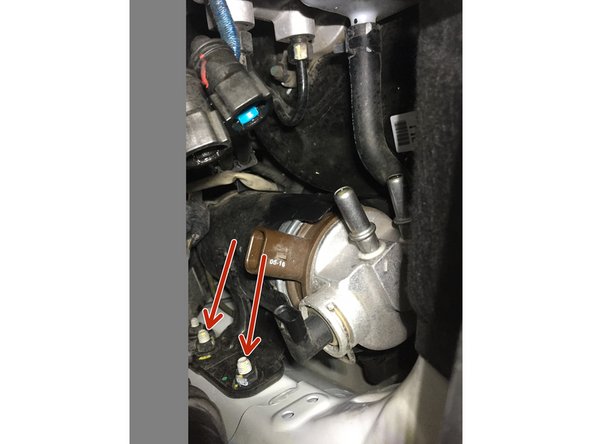

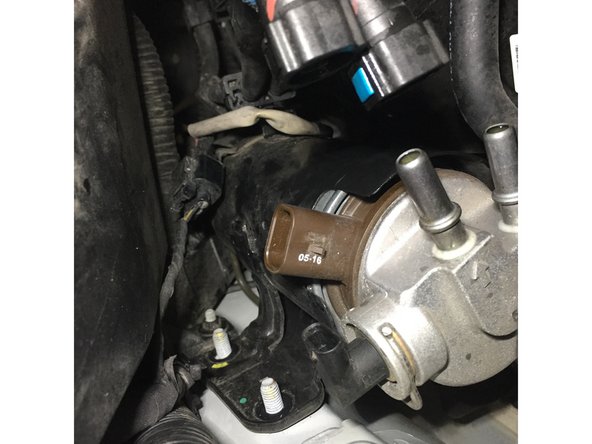

  22. Unscrew the two 12 screws Remove filter Remove filter

    • Unscrew the two 12 screws

    • Remove filter

    Edit

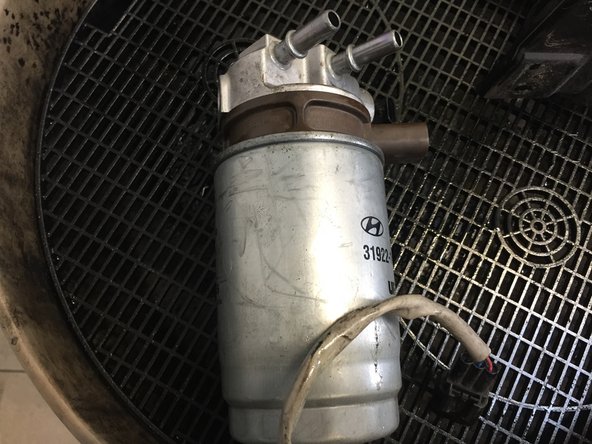

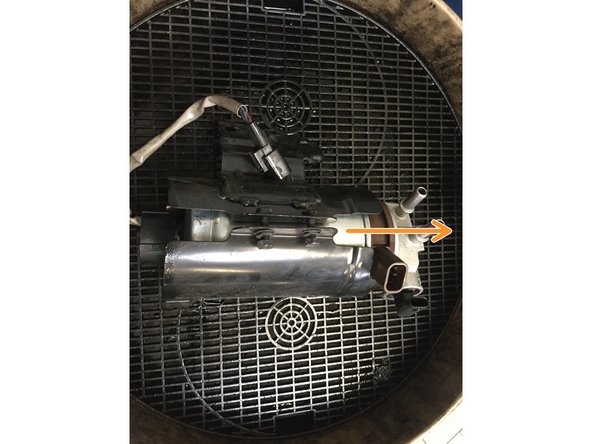

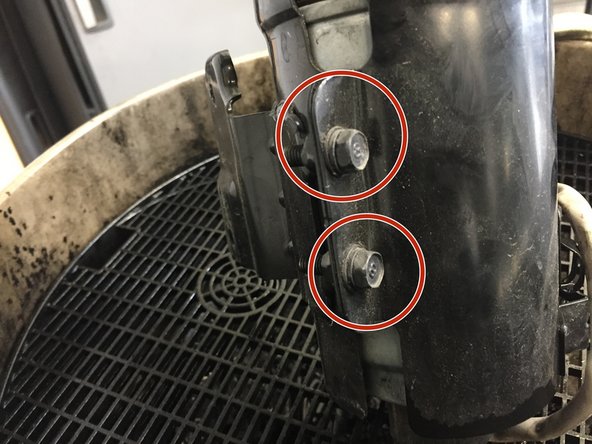

  23. Unscrew the two 10 screws Remove the filter from its support Remove the filter from its support

    • Unscrew the two 10 screws

    • Remove the filter from its support

    Edit

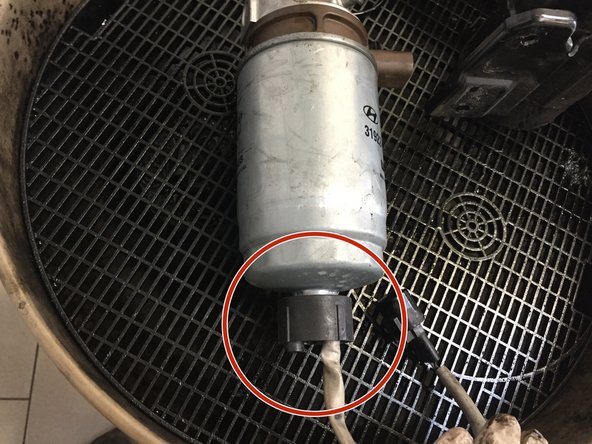

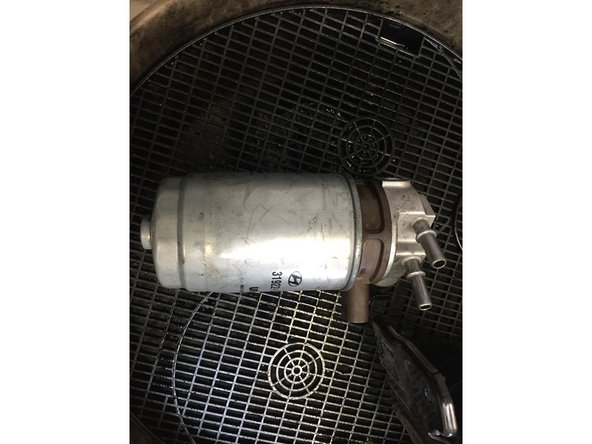

  24. Unscrew the water sensor Unscrew the water sensor

    • Unscrew the water sensor

    Edit

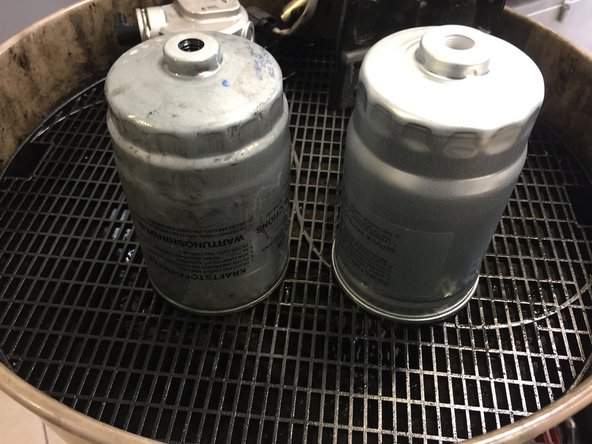

  25. Check the correspondence between the old and new fuel filter

    • Check the correspondence between the old and new fuel filter

    Edit

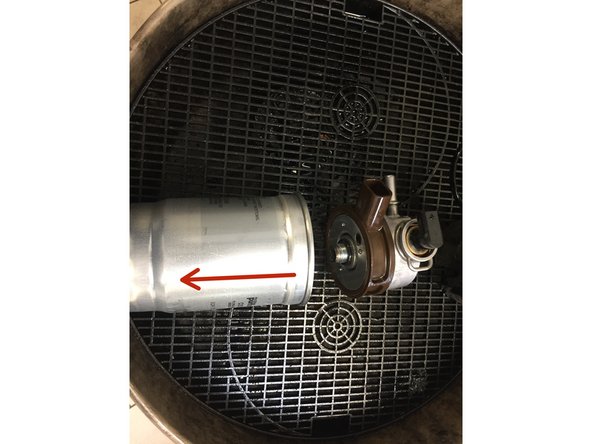

  26. Unscrew the old filter using the strap wrench Unscrew the old filter using the strap wrench

    • Unscrew the old filter using the strap wrench

    Edit

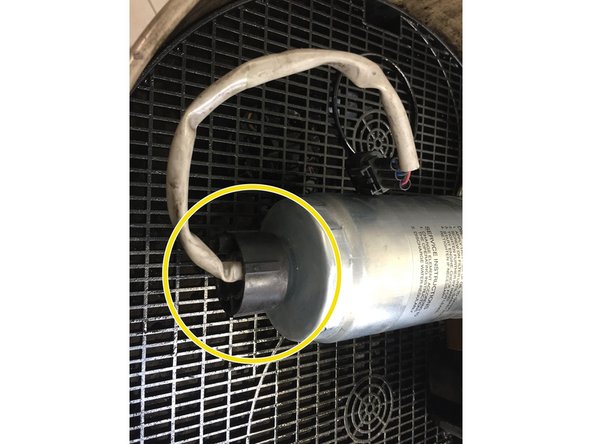

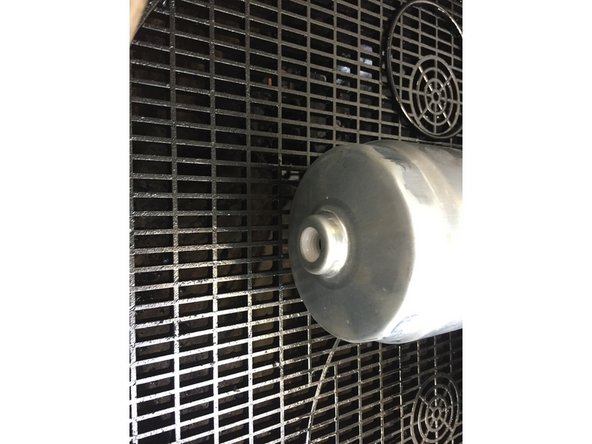

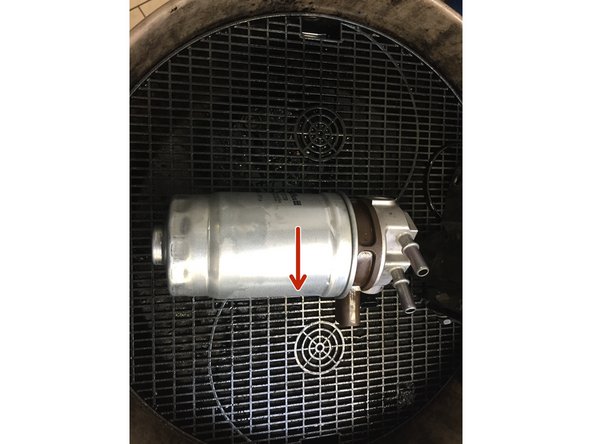

  27. Install the new filter Tighten it using the strap wrench Screw the water sensor

    • Install the new filter

    • Tighten it using the strap wrench

    • Screw the water sensor

    Edit

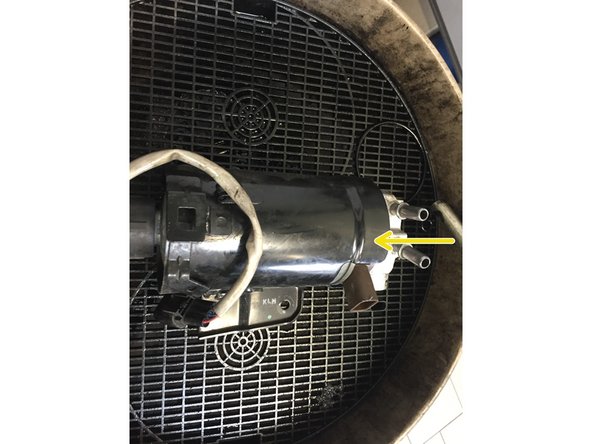

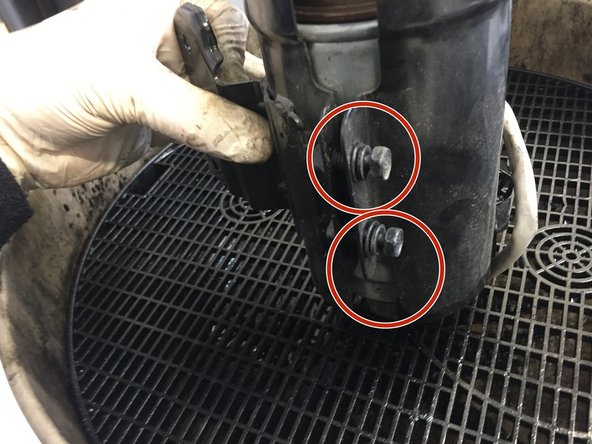

  28. Reassemble the filter in its support Tighten the two 10 screws

    • Reassemble the filter in its support

    • Tighten the two 10 screws

    Edit

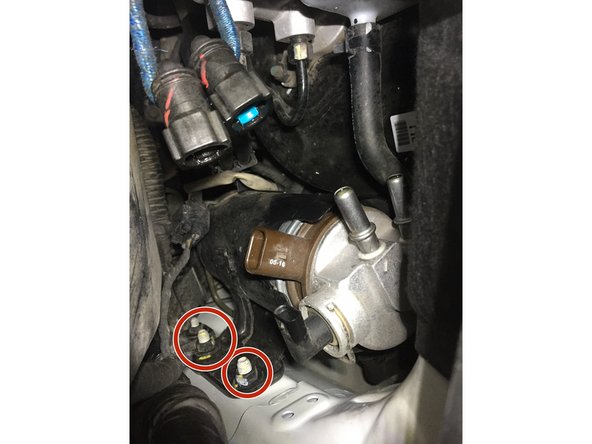

  29. Reinstall the filter on the vehicle Tighten the two 12 screws

    • Reinstall the filter on the vehicle

    • Tighten the two 12 screws

    • Reconnect the sensors and hoses

    • Turn the ignition on several times to re-prime the fuel system.

    Edit
Finish Line

3 other people completed this guide.

Author

with 1 other contributor

dlychar

Member since: 10/09/2017

10,143 Reputation

70 Guides authored

9 Comments

Good morning,

as Julienrez42 said, super hassle, nothing to do with the tutorial, not the same layout of the organs on Sportage III SLT 1.7 crdi

benoni.pinto - Reply

2'3 small things to adjust in the tutorial

the comments are fair on the blog

but it's a great tutorial

thanks to all

warnierchris - Reply

Hello, how many screws are needed to remove the air filter housing and where are they? Thank you.

michelquinaut - Reply

The KIA Sportage in 2L from the year 2016 are different at the level of the oil filter. This one is located near the oil pan. The little extra is that the tool numbers and tightening torques are written on the bell. Be careful, provide a large recovery container for the oil. Because the capacity is 7.5 liters.

Good repair to all.

julienrez42 - Reply

If only it was that simple to do for the diesel filter, you forgot that you also have to disassemble the calculator to be able to access the filter and be able to remove it and access to the screws is not so simple

Charles Roesch - Reply
