Replacing the windscreen wiper blades on a Peugeot 607

Written By: Willy Landais (and one other contributor)
  • Comments: 2
  • Favorites: 1
  • Completions: 4

Difficulty

Easy

Steps

6

Time Required

00:10:00

Sections

1

Flags

0

Tools

No tools specified.

Parts

  1. Turn on the ignition with the key

    • Turn on the ignition with the key

    • Turn off the ignition and then operate the windshield wiper stalk.

    Edit

  2. Move the latch in the center of the wiper upwards The wiper shaft is now released on the other side The wiper shaft is now released on the other side

    • Move the latch in the center of the wiper upwards

    • The wiper shaft is now released on the other side

    Edit

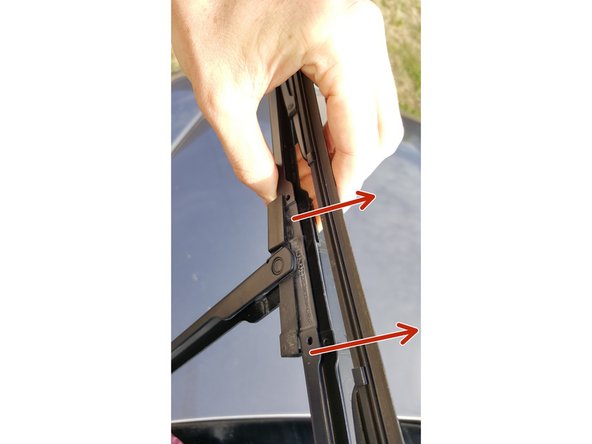

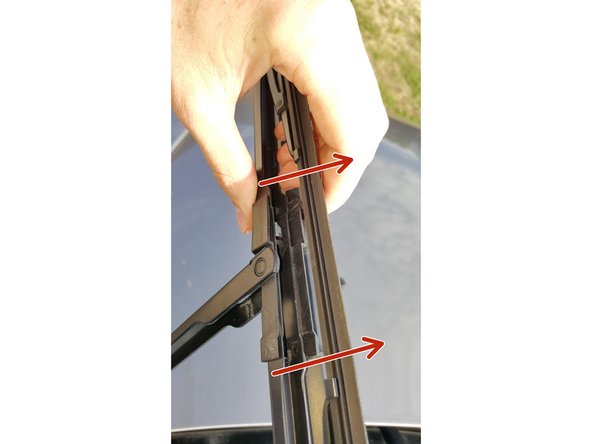

  3. Push the broom upwards to remove it from its support (it is clipped in the center and at both ends) Push the broom upwards to remove it from its support (it is clipped in the center and at both ends) Push the broom upwards to remove it from its support (it is clipped in the center and at both ends)

    • Push the broom upwards to remove it from its support (it is clipped in the center and at both ends)

    Edit

  4. Check that le nouveau balai be the same as the old one (length, fixing) Check that le nouveau balai be the same as the old one (length, fixing)
    Edit

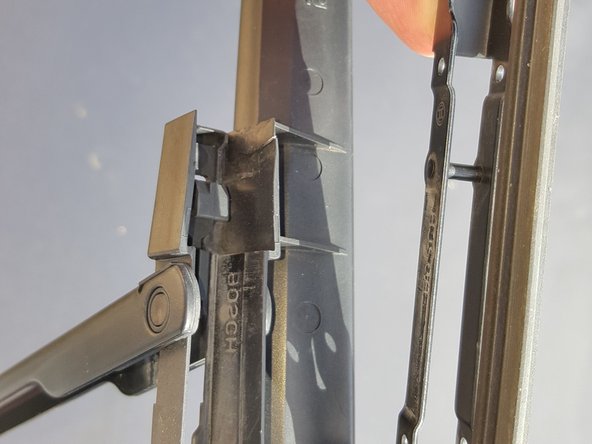

  5. Place the central axis of the new broom on the support Place the central axis of the new broom on the support Place the central axis of the new broom on the support

    • Place the central axis of the new broom on the support

    Edit

  6. Clip the 2 ends of the broom onto its support Lock the latch Lock the latch

    • Clip the 2 ends of the broom onto its support

    • Lock the latch

    Edit
