Difficulty
Easy
Steps
5
Time Required
00:10:00
Tutoriel complet
Ce tutoriel contribué par la communauté est complet et prêt pour l'examen de l'équipe Oscaro.
Tools
Parts
-
-
Location of the box (right side of the trunk)
-
Using a screwdriver or a specific disassembly tool, pry up the case on the left side.
-
Once the left side is unclipped, pull towards you and the entire support will come off.
-
-
-
Disconnect the support by pressing the small black tab.
-
Pull the connector back
-
-
-
Take the bulb and pull it towards you to remove it from its housing.
-

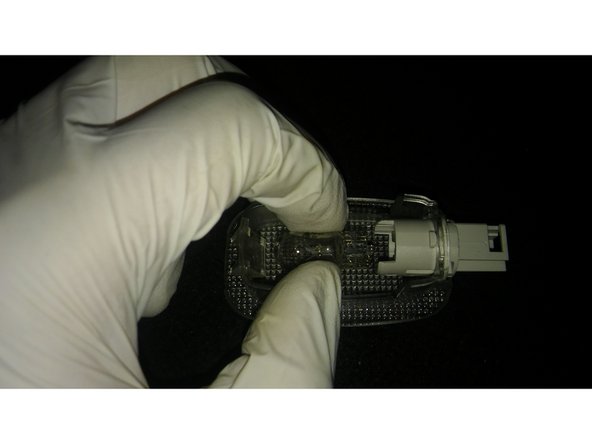

Compare the new bulb and the defective bulb so that you have the identical model.
-
-
-

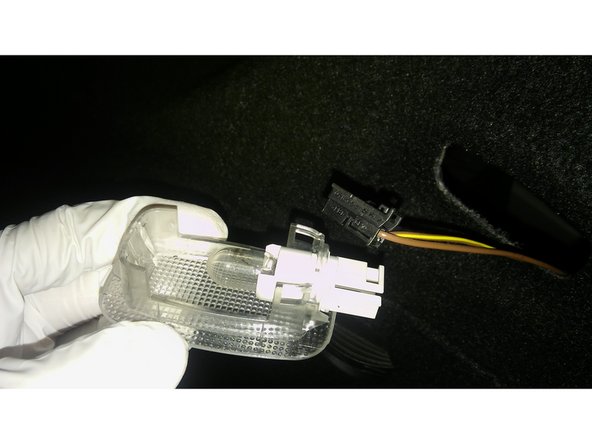

Reinstall the new bulb (step 3 reversed).
-

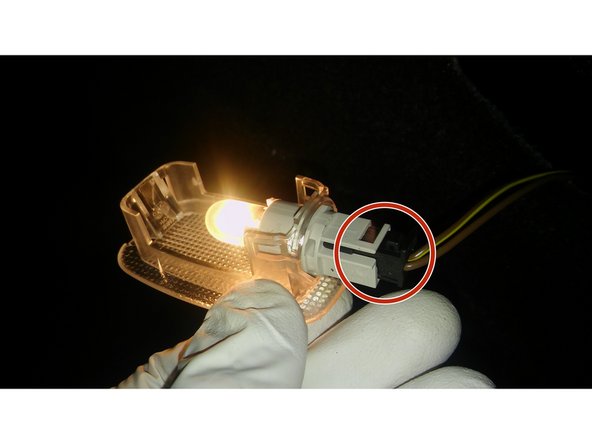

Reconnect the connector to the bulb holder.
-
Check for proper operation before final reassembly.
-
Be careful not to touch the bulb with your fingers (risk of burns)
-
-
-

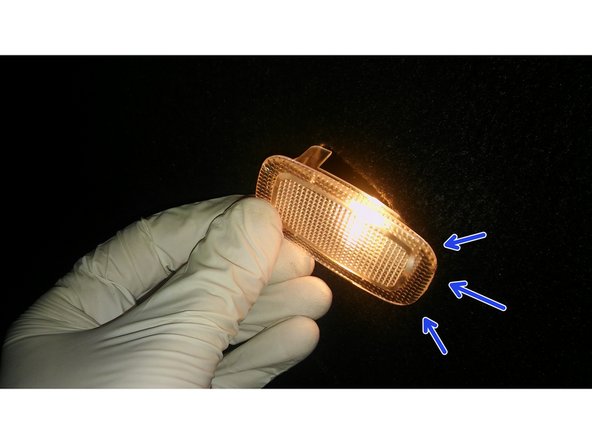

For reassembly, first position the right part of the bulb holder in the partition.
-

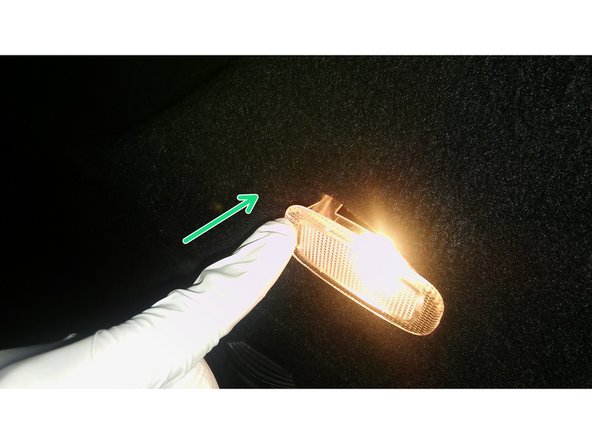

Then press with your finger on the left part until it "clicks".
-

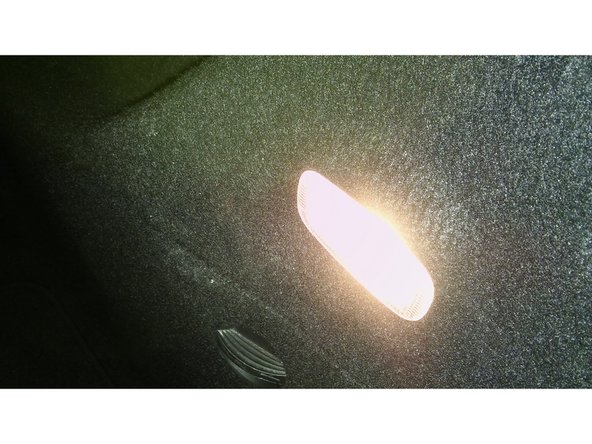

It's over.
-
