Replacing the brake light bulb on a Peugeot 607

Written By: Quentin Hubert (and one other contributor)
  • Comments: 0
  • Favorites: 0
  • Completions: 1

Difficulty

Moderate

Steps

13

Time Required

00:15:00

Sections

1

Flags

1

Ce tutoriel a été créé par la communauté

Ce tutoriel a été créé par la communauté

User contributed

Tools

No tools specified.

Parts

  1. Refer to the tutorial "Replacing the trunk bulb on Peugeot 607" to remove the trunk threshold bar

    • Refer to the tutorial "Replacing the trunk bulb on Peugeot 607" to remove the trunk threshold bar

    Edit

  2. Open the side storage hatch Pull the carpet covering to access behind Pull the carpet covering to access behind

    • Open the side storage hatch

    • Pull the carpet covering to access behind

    Edit

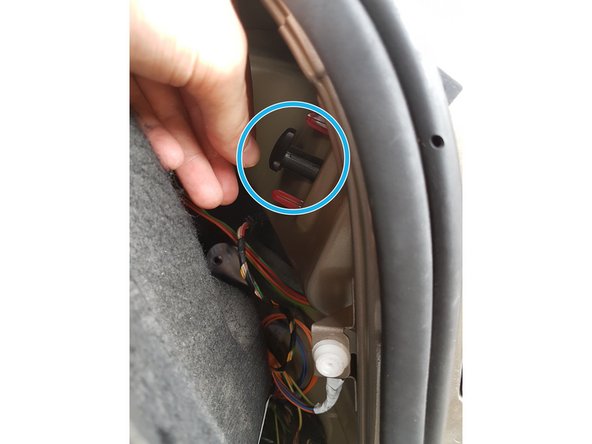

  3. Unscrew the black plastic nut Unscrew the black plastic nut Unscrew the black plastic nut

    • Unscrew the black plastic nut

    Edit

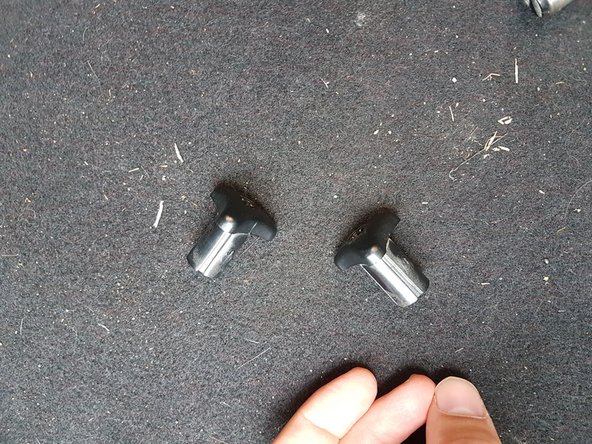

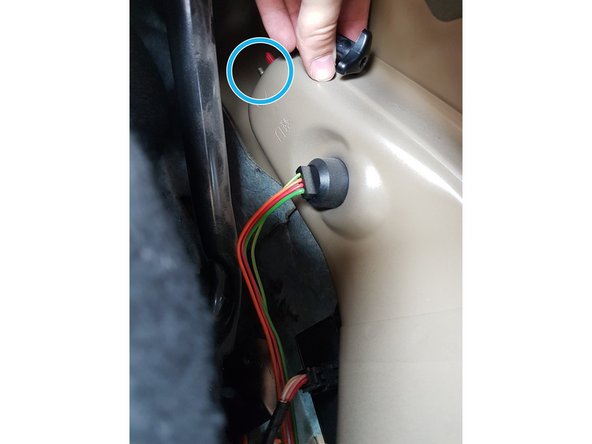

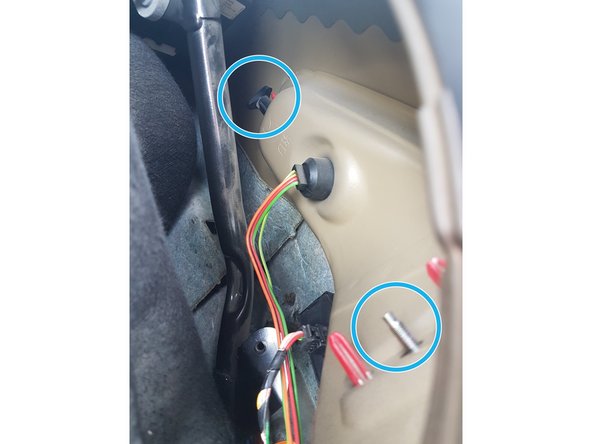

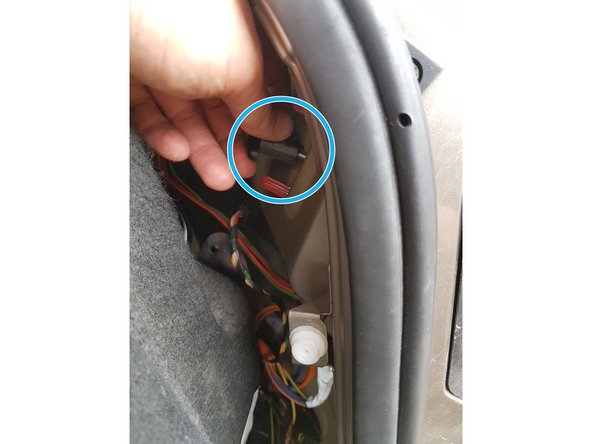

  4. Unscrew the 2nd plastic nut which is located further back Unscrew the 2nd plastic nut which is located further back Unscrew the 2nd plastic nut which is located further back

    • Unscrew the 2nd plastic nut which is located further back

    Edit

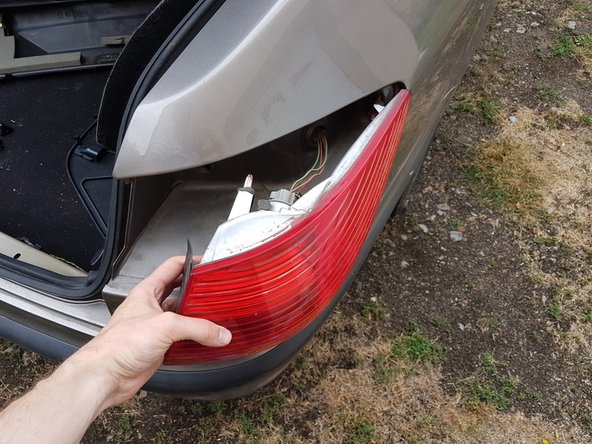

  5. Pull the light backwards to remove it Pull the light backwards to remove it

    • Pull the light backwards to remove it

    Edit

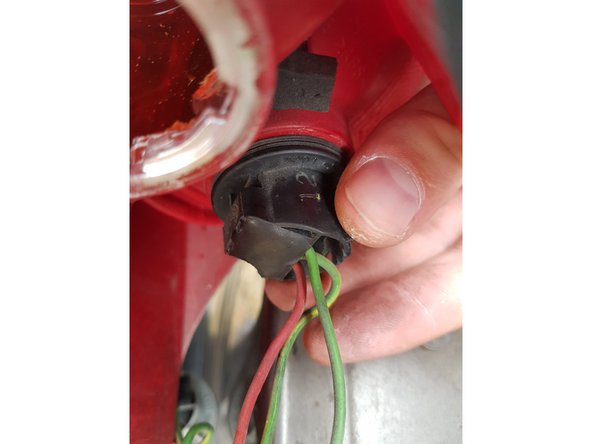

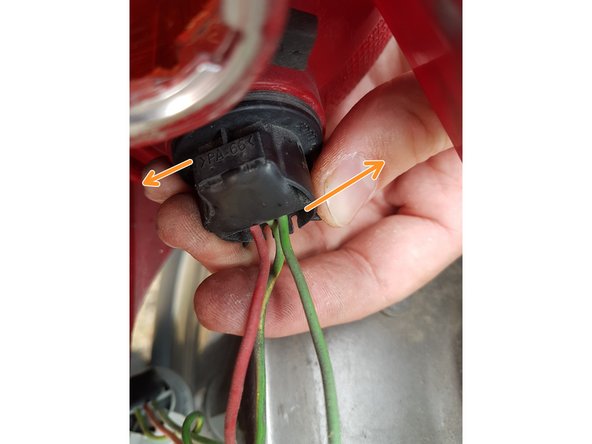

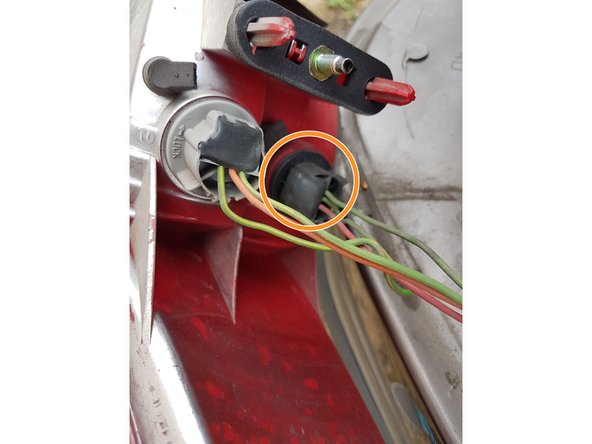

  6. Unscrew the black socket 1/4 turn Unscrew the black socket 1/4 turn Unscrew the black socket 1/4 turn

    • Unscrew the black socket 1/4 turn

    Edit

  7. Pull the socket out of the fire Pull the socket out of the fire

    • Pull the socket out of the fire

    Edit

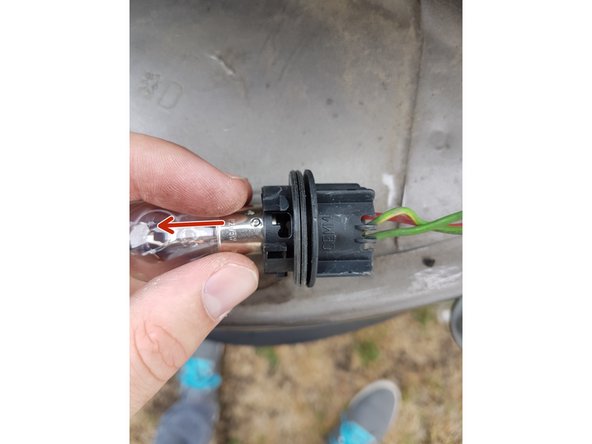

  8. Press the bulb Unscrew it slightly Pull it to extract it

    • Press the bulb

    • Unscrew it slightly

    • Pull it to extract it

    Edit

  9. Compare bulbs (new and old) Press and screw to place the bulb in the socket Press and screw to place the bulb in the socket

    • Compare bulbs (new and old)

    • Press and screw to place the bulb in the socket

    Edit

  10. Reassemble the socket in the light by screwing it in. Reposition the lights Reposition the lights

    • Reassemble the socket in the light by screwing it in.

    • Reposition the lights

    Edit

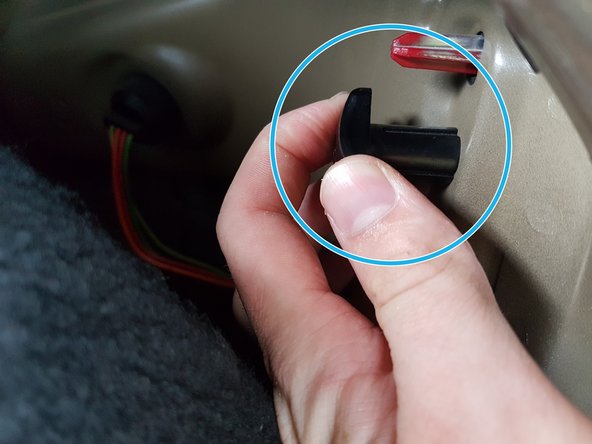

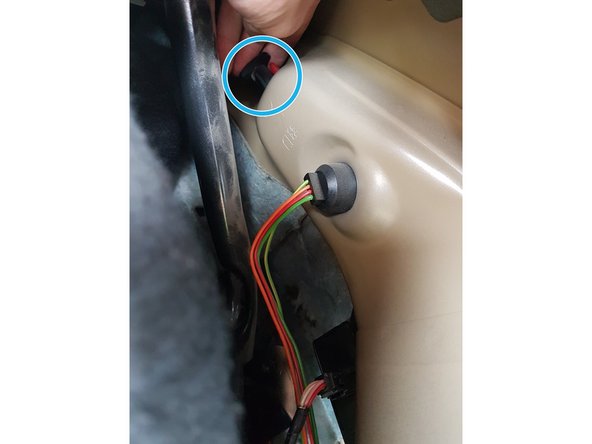

  11. Tighten the 2 nuts securing the lights Tighten the 2 nuts securing the lights

    • Tighten the 2 nuts securing the lights

    Edit

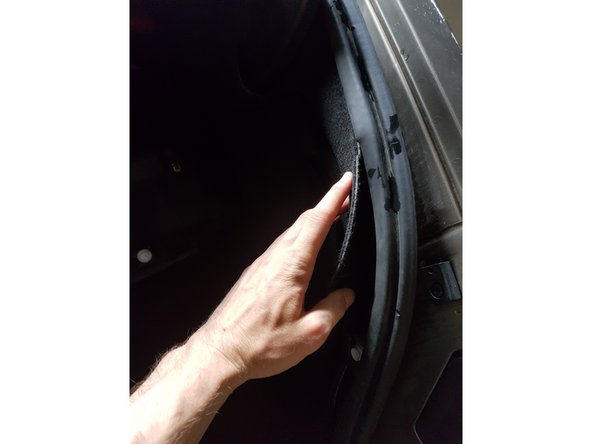

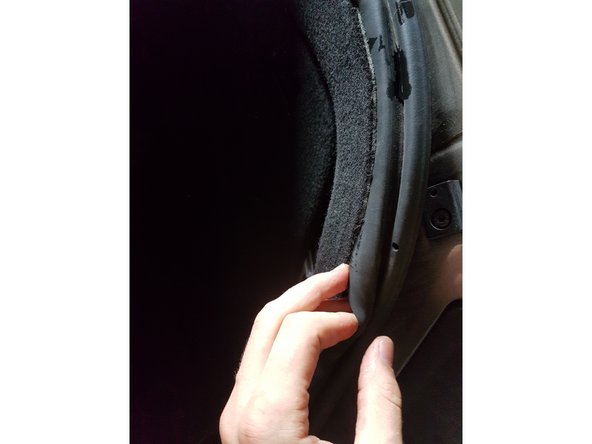

  12. Lay the carpet inside the trunk seal Lay the carpet inside the trunk seal Lay the carpet inside the trunk seal

    • Lay the carpet inside the trunk seal

    Edit

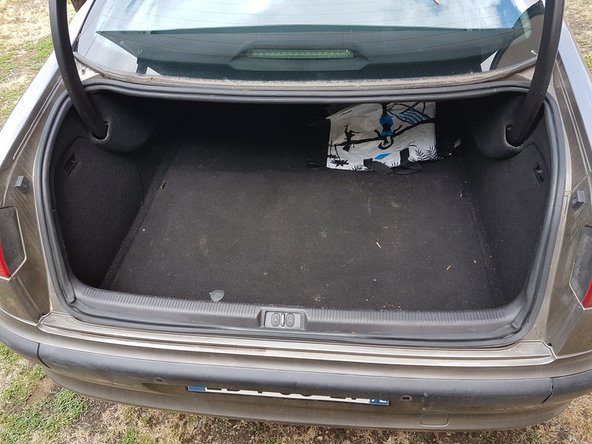

  13. Refer to the tutorial "Replacing the trunk bulb on Peugeot 607" to reassemble the trunk sill bar Refer to the tutorial "Replacing the trunk bulb on Peugeot 607" to reassemble the trunk sill bar

    • Refer to the tutorial "Replacing the trunk bulb on Peugeot 607" to reassemble the trunk sill bar

    Edit
Finish Line

One other person completed this guide.
