Replacing the air filter on Peugeot 106 - 1.0i

Written By: Félix DELANOE (and 2 other contributors)
  • Comments: 8
  • Favorites: 0
  • Completions: 10

Difficulty

Easy

Steps

9

Time Required

00:10:00

Sections

1

Flags

0

Introduction

Here's how to replace an air filter on a Peugeot 106 1.0 i 50cv

  1. Open the hood under the steering wheel to access the engine compartment. Locate the filter

    • Open the hood under the steering wheel to access the engine compartment.

    • Locate the filter

    Edit

  2. Unscrew the clamps with un tournevis plat 1 collar on the carburetor on the left 1 collar on the carburetor on the left
    Edit

  3. Remove the 2 air intake tubes on the right side of the manifold

    • Remove the 2 air intake tubes on the right side of the manifold

    Edit

  4. Lift the collector on each side Rotate the manifold to access the air filter

    • Lift the collector on each side

    • Rotate the manifold to access the air filter

    Edit

  5. Remove the 2 clips by pulling them upwards and outwards Turn the entire filter assembly slightly clockwise to remove it from the tabs Pull the air filter cover upwards and remove the filter

    • Remove the 2 clips by pulling them upwards and outwards

    • Turn the entire filter assembly slightly clockwise to remove it from the tabs

    • Pull the air filter cover upwards and remove the filter

    • Clean the air filter box

    Edit

  6. Check the correspondence between the old and le nouveau filtre à air
    Edit

  7. Check that the seal is not left on the air box Insert the new gasket into the groove of the new filter Use a flathead screwdriver to place the gasket into the bottom of the groove

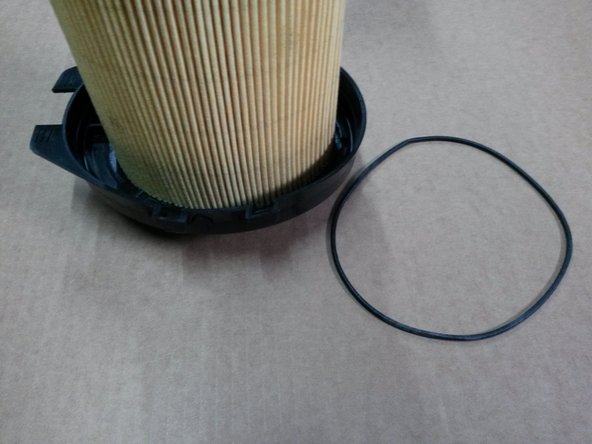

    • Check that the seal is not left on the air box

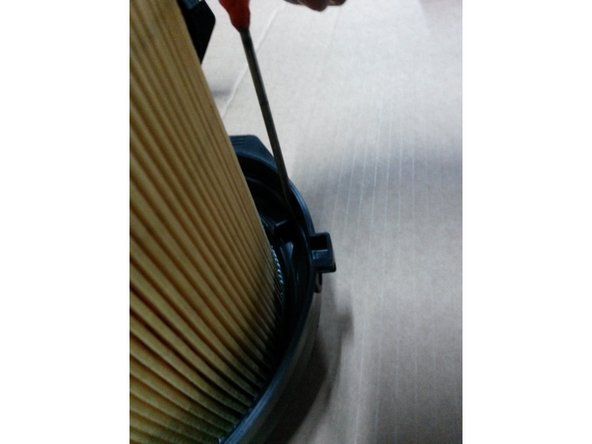

    • Insert the new gasket into the groove of the new filter

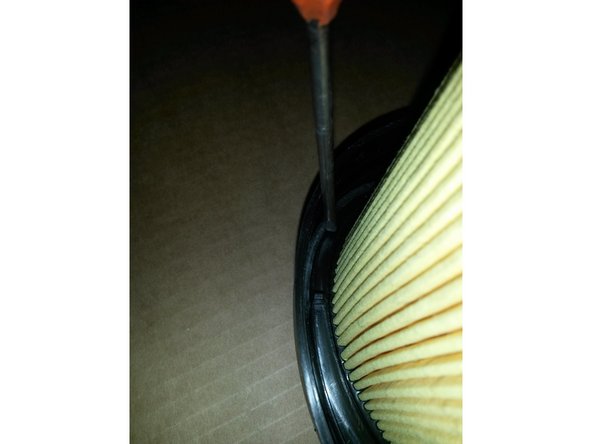

    • Use a flathead screwdriver to place the gasket into the bottom of the groove

    Edit

  8. Reassemble the filter in the air box by aligning the lugs

    • Reassemble the filter in the air box by aligning the lugs

    • Turn counterclockwise

    • Put the 2 clips back

    Edit

  9. Reassemble the collector Replace the 2 air intakes Screw the 2 collars back on

    • Reassemble the collector

    • Replace the 2 air intakes

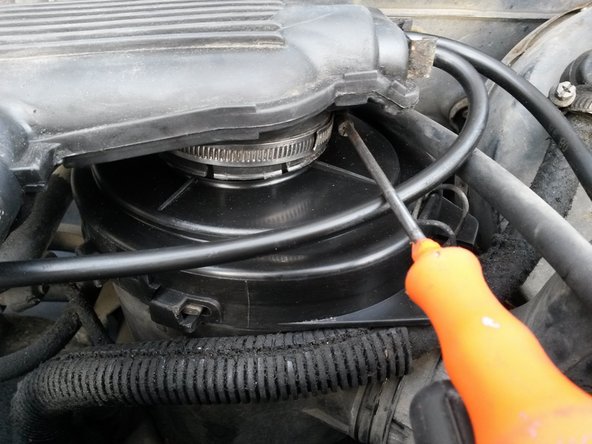

    • Screw the 2 collars back on

    Edit
