Removing and Replacing a Starter

Written By: tunahan.metin05
  • Comments: 0
  • Favorites: 0

Difficulty

Moderate

Steps

6

Time Required

01:00:00 - 02:00:00

Sections

1

Flags

2

En cours

En cours

Ce tutoriel est en cours de création. Revenez de temps en temps pour voir les modifications.

Ce tutoriel a été créé par la communauté

Ce tutoriel a été créé par la communauté

User contributed

  1. Disconnect the battery remove the cover Unscrew the screw with the 7 mm socket

    • Disconnect the battery

    • remove the cover

    • Unscrew the screw with the 7 mm socket

    Edit

  2. The starter is located here

    • The starter is located here

    Edit

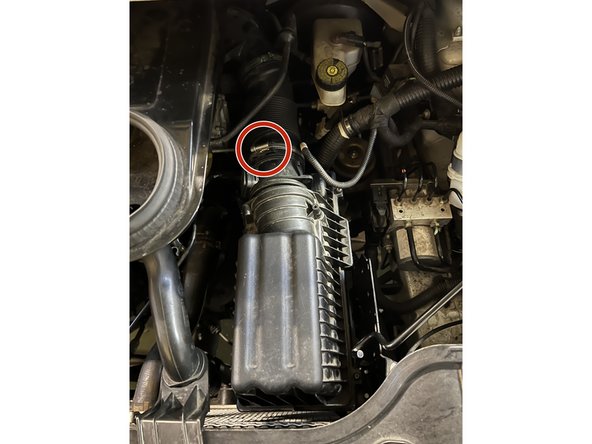

  3. Unscrew the screw with the 7 socket Remove the sensor Remove the air hose

    • Unscrew the screw with the 7 socket

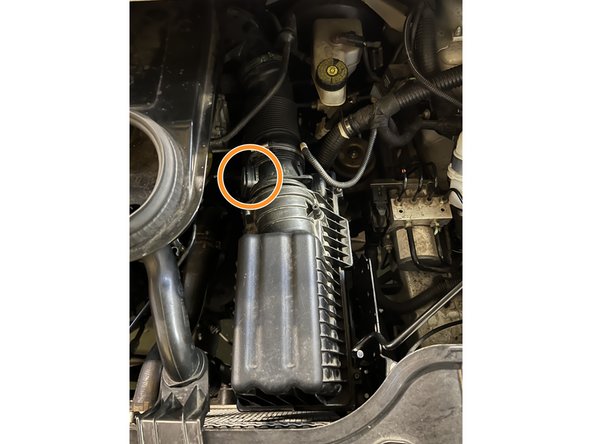

    • Remove the sensor

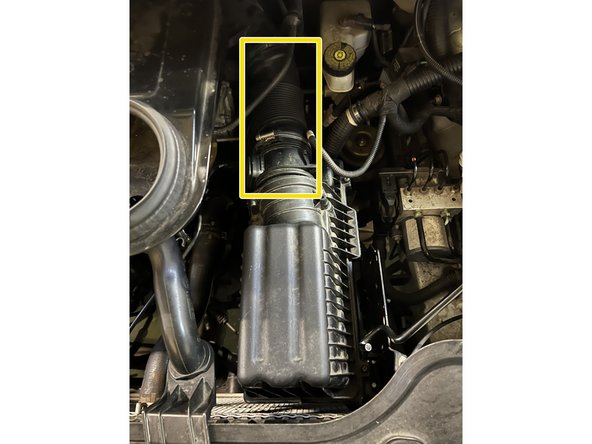

    • Remove the air hose

    Edit

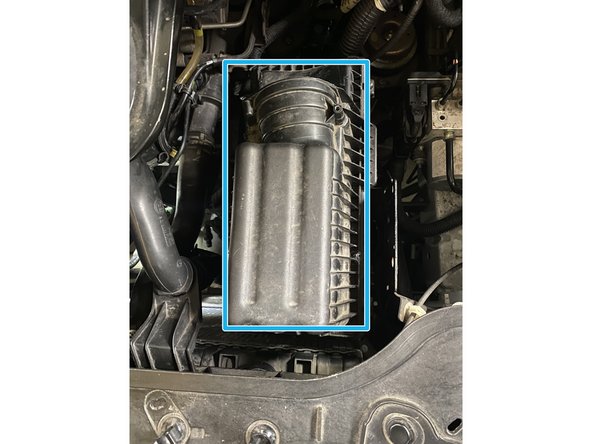

  4. Remove the air box

    • Remove the air box

    Edit

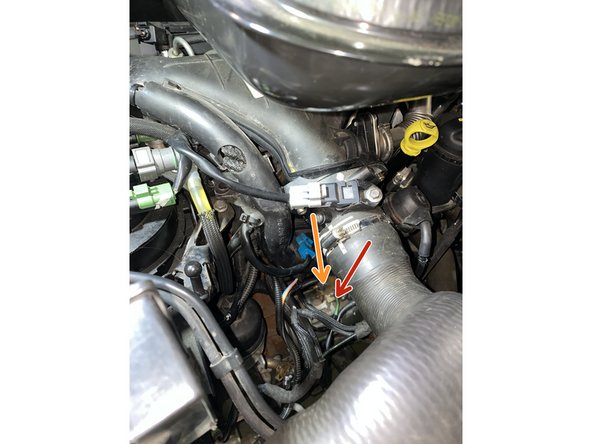

  5. Remove the nut with the 7 socket.

    • Remove the nut with the 7 socket.

    • Remove the nut with the 13 socket.

    Edit

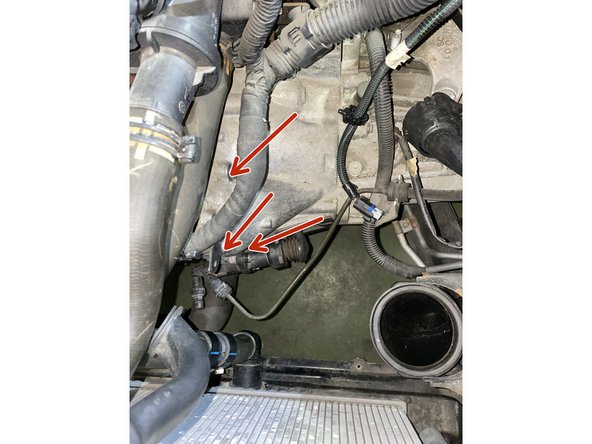

  6. Remove the three 3's with the T50 socket Remove the starter

    • Remove the three 3's with the T50 socket

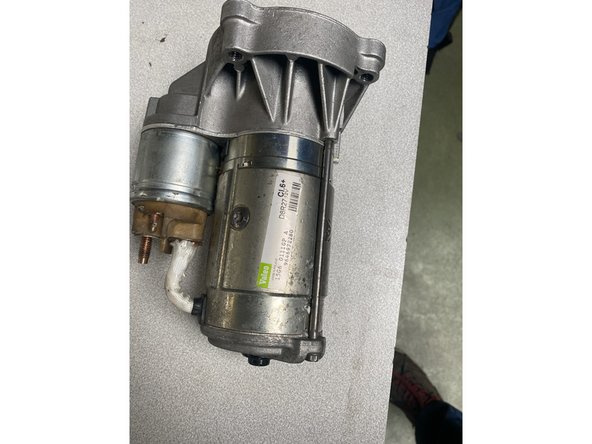

    • Remove the starter

    Edit
Finish Line
