RCZ 2.0 HDI air filter change

Written By: quent-v (and one other contributor)
  • Comments: 0
  • Favorites: 0
  • Completions: 1

Difficulty

Moderate

Steps

6

Time Required

00:15:00

Sections

1

Flags

1

Ce tutoriel a été créé par la communauté

Ce tutoriel a été créé par la communauté

User contributed

  1. Pull the handle to unlock the hood. The hood retaining mechanism is located slightly to the right from the middle. The hood retaining mechanism is located slightly to the right from the middle.

    • Pull the handle to unlock the hood.

    • The hood retaining mechanism is located slightly to the right from the middle.

    Edit
  2. Edit

  3. Locate the 4 screws Turn counterclockwise. These screws are cross-head but can also accommodate a flat-head screwdriver.

    • Locate the 4 screws

    • Turn counterclockwise.

    • These screws are cross-head but can also accommodate a flat-head screwdriver.

    • Lift the top of the air box.

    Edit

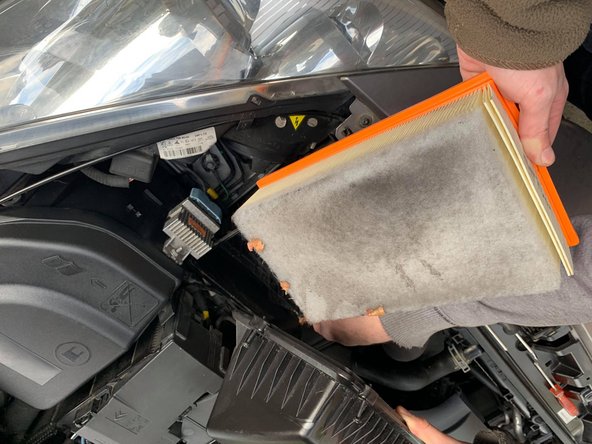

  4. Remove the air filter by pulling it upwards. Remember to clean the bottom of the air box. Remember to clean the bottom of the air box.

    • Remove the air filter by pulling it upwards.

    • Remember to clean the bottom of the air box.

    Edit

  5. Compare the compatibility of the old filter with the new one. Compare the compatibility of the old filter with the new one.

    • Compare the compatibility of the old filter with the new one.

    Edit

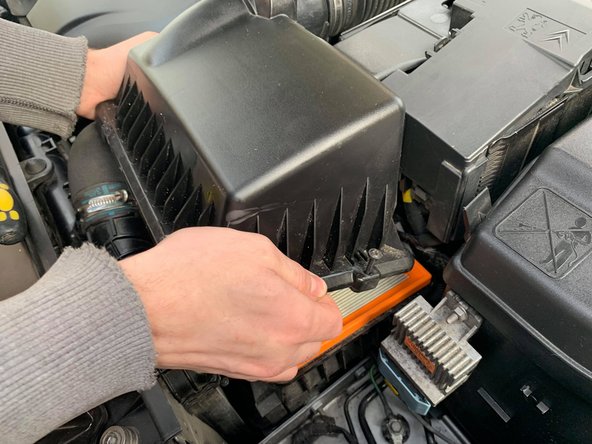

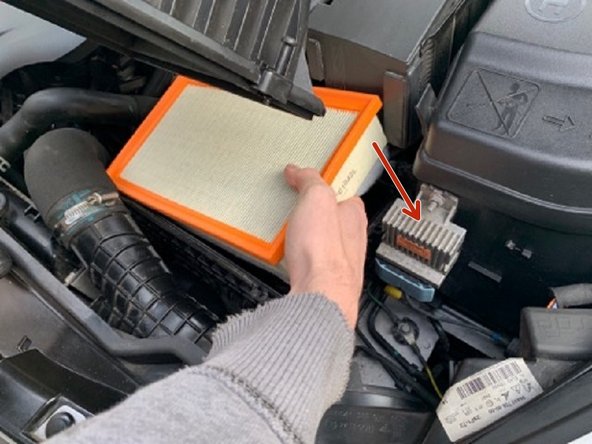

  6. Proceed in reverse order to disassembly. Be careful to correctly position the filter so as not to pinch the edges of the seal. Be careful to correctly position the filter so as not to pinch the edges of the seal.

    • Proceed in reverse order to disassembly.

    • Be careful to correctly position the filter so as not to pinch the edges of the seal.

    Edit
Finish Line

One other person completed this guide.
