Peugeot 3008 I stabilizer bar silent block

Necessary tools: a jack, a candle, an extension key to remove the wheel, a ratchet with a 21 socket and an E16 torx socket, a 10 socket wrench for the engine protection apron and a 50 torx key for the triangle support and your silent blocks

I skip the step for installing your jack and the candle, removed the 10 screws from the engine cover and released the cover, removed your wheel, here is the location of the silent block.

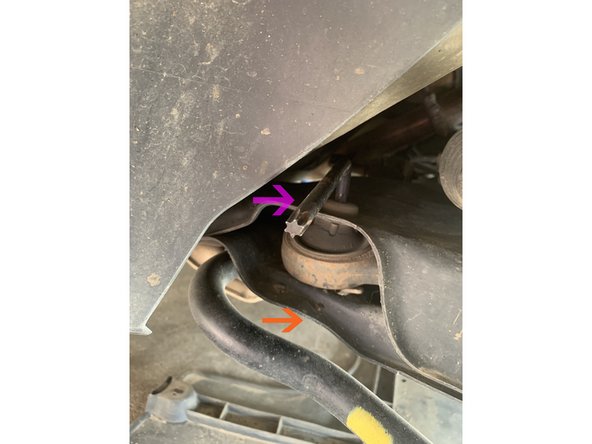

The two nuts to unscrew the first on the left with the E16 socket and the one on the right taken with the triangle with the 21 socket and above the 50 torx key

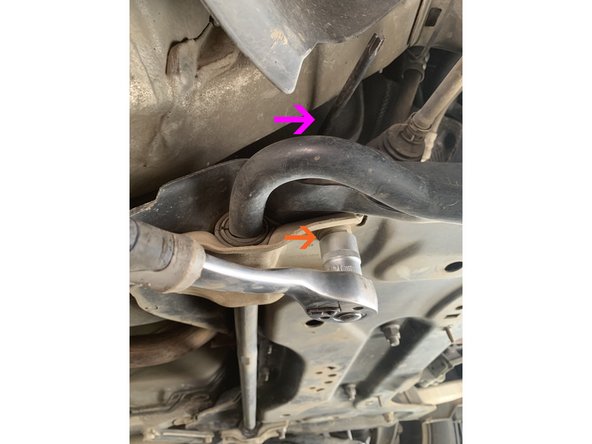

Start by unscrewing the left nut with the E16 socket completely and then the right nut with the 21 socket and above the 50 torx key to hold it but do not unscrew it completely, this will help us for reassembly.

the left E16 screw removed and the right 21 nut unscrewed but still in place to leave us the plate tilt, removed your defective silent block put the new one in place and reposition the plate, your E16 screw is too short to reassemble the plate so that's what the 21 nut will be used for to reassemble everything.

Tightened the 21 nut three-quarters of the way, which has the effect of raising the plate and the silent block and then being able to engage the E16 screw without difficulty, tightened your two nuts again and repeated the operation on the other side, always changed the two silent blocks.
