Oil change and filter replacement on Ford Kuga II - 2.0 TDCi

Written By: dlychar (and 2 other contributors)
  • Comments: 7
  • Favorites: 0
  • Completions: 1

Difficulty

Moderate

Steps

8

Time Required

01:00:00

Sections

1

Flags

1

Ce tutoriel a été créé par la communauté

Ce tutoriel a été créé par la communauté

User contributed

Introduction

Warm up the engine before oil change

  1. Remove the filler cap and oil dipstick Remove the filler cap and oil dipstick Remove the filler cap and oil dipstick

    • Remove the filler cap and oil dipstick

    Edit

  2. Unscrew the 10 torx 30 screws to remove the under-engine plate Unscrew the 10 torx 30 screws to remove the under-engine plate Unscrew the 10 torx 30 screws to remove the under-engine plate

    • Unscrew the 10 torx 30 screws to remove the under-engine plate

    Edit

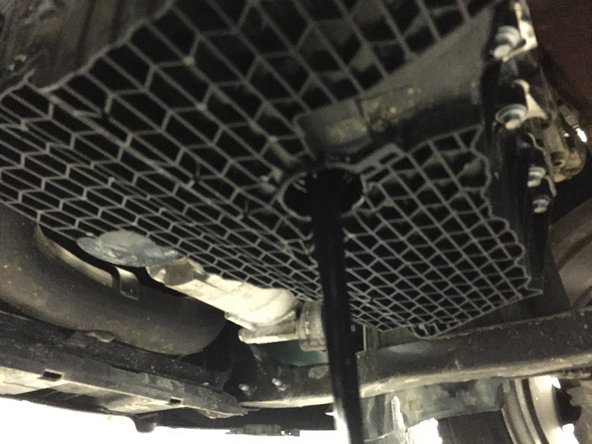

  3. Remove the pin Unscrew the cap by hand a quarter turn to remove it. Unscrew the cap by hand a quarter turn to remove it.

    • Remove the pin

    • Unscrew the cap by hand a quarter turn to remove it.

    Edit

  4. Unscrew the oil filter Unscrew the oil filter

    • Unscrew the oil filter

    Edit

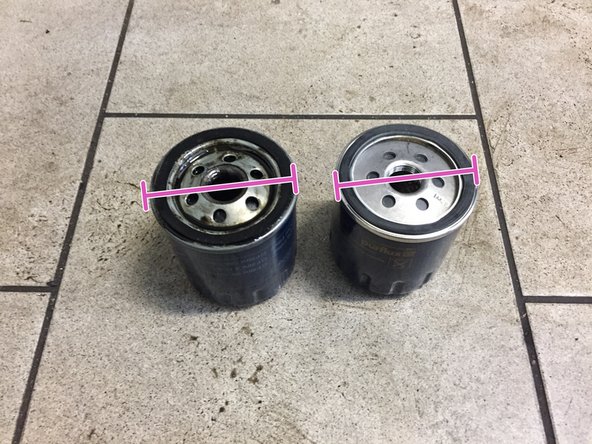

  5. Check the correspondence between the old and new filter

    • Check the correspondence between the old and new filter

    Edit

  6. Replace the drain plug Put the pin back in Reinstall the oil filter

    • Replace the drain plug

    • Put the pin back in

    • Reinstall the oil filter

    Edit

  7. Put the plate back under the engine Tighten the 10 T30 screws

    • Put the plate back under the engine

    • Tighten the 10 T30 screws

    Edit

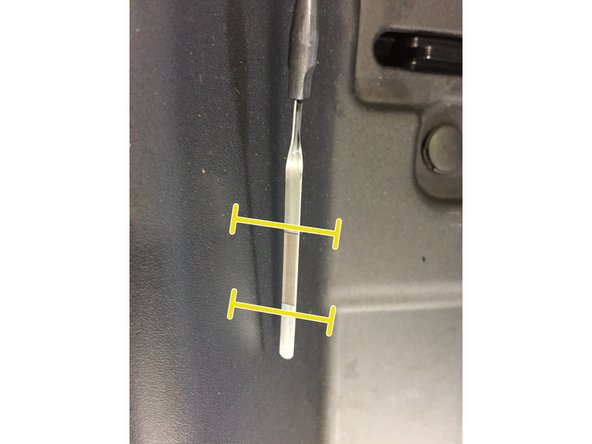

  8. Pour the oil into the engine through the filler hole Start the engine Check the level

    • Pour the oil into the engine through the filler hole

    • Start the engine

    • Check the level

    • DO NOT EXCEED MAX LEVEL

    • Replace the dipstick and filler cap

    Edit
Finish Line

One other person completed this guide.

Author

with 2 other contributors

dlychar

Member since: 10/9/17

10,406 Reputation

70 Guides authored

6 Comments

Thanks great tutorial...Is there a network for the dashboard light or alarm?

Byl44 - Resolved on Release Reply

Thanks for this great tutorial. On my model, on the side of the bottom cover, it's screws with an 8 hex head.

pirio.philippe - Resolved on Release Reply

Hello, on a Kuga phase 2 from 2014 the oil filter is not there at all!!!

carrier.david - Resolved on Release Reply

Hello, is it necessary to replace the drain plug or possibly the seal?

cdlt

jeromedebast - Resolved on Release Reply

I just ordered an oil filter on Oscaro. I plan to do the oil change next month with 5w30 oil (Ford 913c approved) on a 120hp petrol kuga that will be 2 years old. I will look for how to reset the maintenance light when it comes on later. (The manufacturer's warranty will then have expired).

Here is the filter, it is the same reference as on the c max 1.0 ecoboost 125hp! But for the oil I put 5w20 on this other car.

THANKS

saxophone alto - Resolved on Release Reply
