Difficulty
Moderate
Steps
16
Time Required
00:45:00
Ce tutoriel a été créé par la communauté
User contributed
Introduction
Here is a tutorial to do the Peugeot 3008 2.0 HDi 150 CV oil change and oil filter replacement yourself.
-
-
Raise the vehicle using the jack and secure it on stands:Securing the vehicle: removing and refitting the wheel
-
Warm up the vehicle before starting the oil change so that the oil is more fluid.
-
Open the hood and remove the engine cover by pulling it upwards.
-
Remove the oil dipstick and filler cap
-
-
-
Place a tray under the vehicle
-
Using the 21 mm flat wrench, unscrew the drain plug.
-
Let the oil flow until it drips.
-
-
-

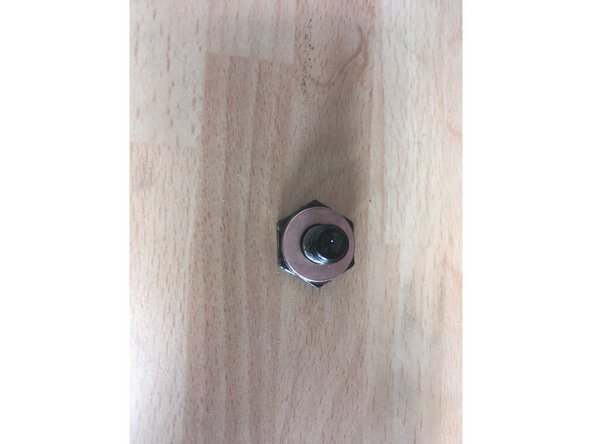

Replace the drain plug with the new copper gasket.
-
Tighten it using the 21 flat wrench
-
-
-

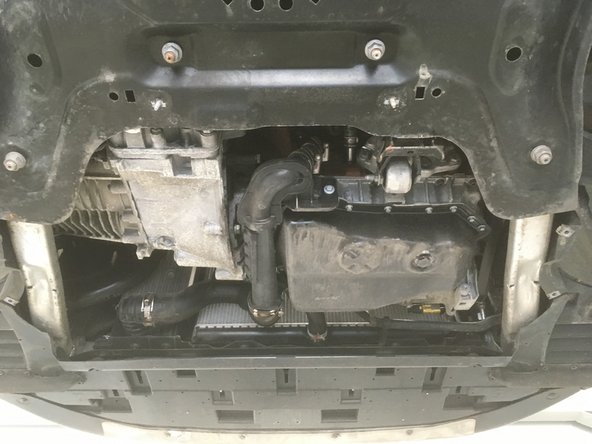

Reassemble the plate under the engine
-

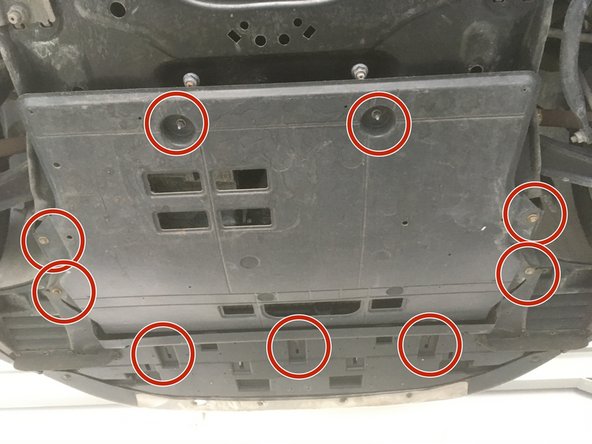

Tighten the 9 screws of 10
-
-
-

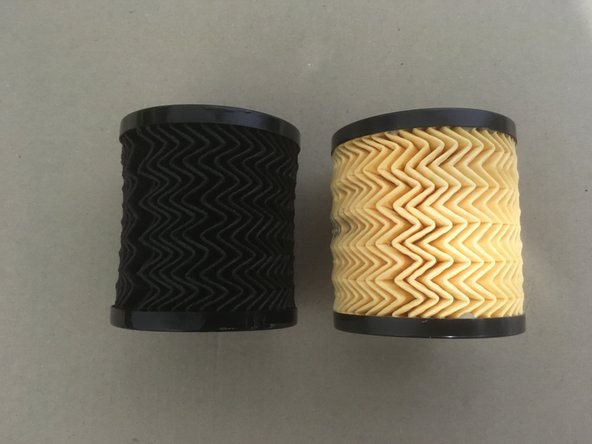

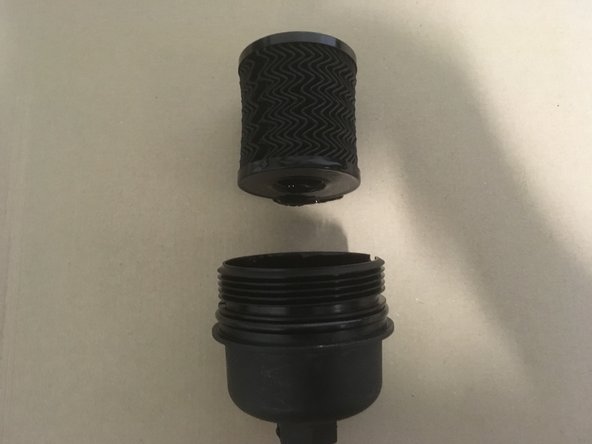

Check the correspondence between the old and the new oil filter
-
-
-
Replace the oil filter gasket
-

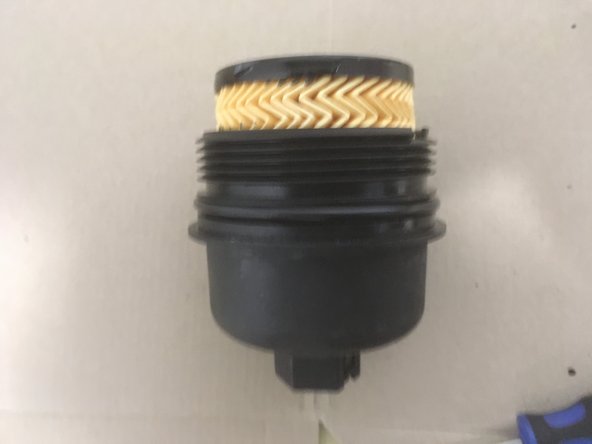

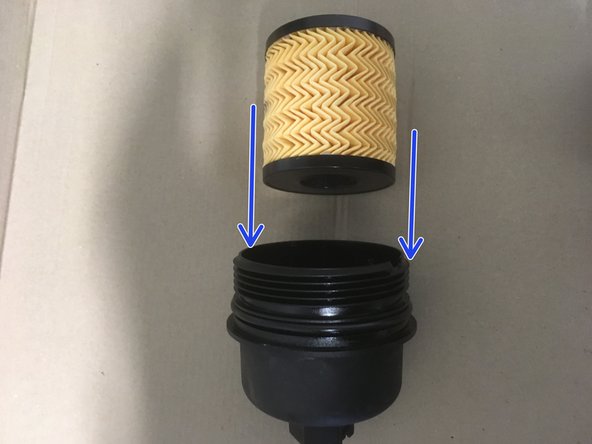

Fit the new filter cartridge by clipping it downwards
-
-
-
Pour the oil recommended by the manufacturer into the engine through the filler hole.
-
Check the oil level with the dipstick
-
Replace the dipstick and cap then start the engine to fill the oil filter
-
BE CAREFUL NOT TO EXCEED THE MAXIMUM LEVEL
-
Check the oil level again with the dipstick
-
-
-
Replace the engine cover by clipping it downwards
-
Put the vehicle back on the ground
-
-
-

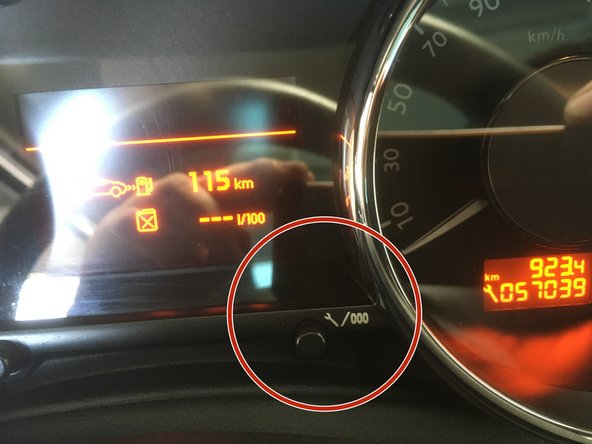

To reset the maintenance indicator on the dashboard, press the "000" button and turn on the ignition.
-
Hold until the countdown is complete
-
Cancel: I did not complete this guide.
15 other people completed this guide.
9 Comments
For my part I have version 2 and the filter is very accessible with the axial key (3 fingers) after removing the 13 screws of the plate under the engine. On the other hand pay attention to the drain the engine housing is made of plastic as well as the quarter-turn cap. This cap is locked by a pin, but when you unscrew it, you risk a shower because it goes away all at once ! The cork slips out of your hands and falls into the funnel and blocks it! Preferably take a bowl for about 6 liters… or hold the cork with pliers. Don't forget to put the pin back in!
I cut a 27 key so that it would fit.
Hello
I remove the filter before replacing the drain plug because
after changing the filter with this procedure (before putting the oil back)
if you take the drain plug back on you have almost 1 liter
Good morning,
Very good, perfectly clear tutorial for an oil change on a 3008.
However, disassembly using the filter remover type photo above…….puuuufff and very very difficult!!
I strongly recommend equipping yourself with a 27mm oil filter ratchet wrench (or not).
This is a suitable tool, and will preserve your oil filter housing cover.
@Karl, it is possible, without certainty, that it is like on the 165hp hybrid4, an “old” metal oil filter not placed idem.
Others will be able to help you better than me, but either you have this plastic bell, or an old-fashioned filter but you have to find it.
