Draining and changing the oil filter on 106 phase 2 1.4i (model with bell)

open the hood

remove the oil filler cap

remove the oil dipstick

This will create an air intake, which will help drain faster.

The drain plug is located at the rear of the crankcase.

unblock the cork using a figure 8 square

Place a tray under the crankcase and finish unscrewing the cap by hand.

Be careful not to burn yourself.

don't hesitate to wear gloves

don't hesitate to drop the oil pan plug into the pan, you can retrieve it later with a magnet

let drain for at least 15 minutes

locate the oil filter: it is in the area circled in red

unlock the bell using the 27mm ratchet and socket

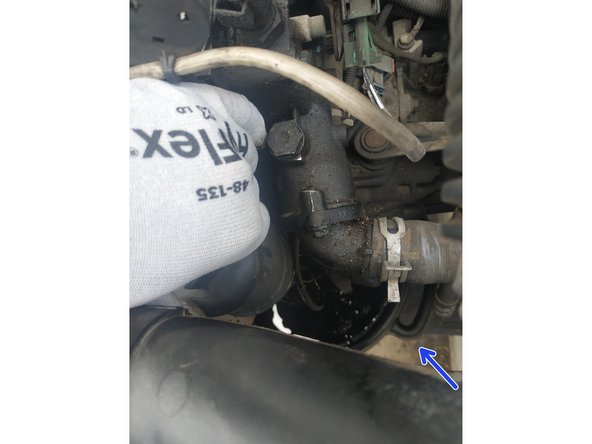

finish unscrewing by hand and remove the filter

Make sure the drain pan is under the filter as oil will leak out.

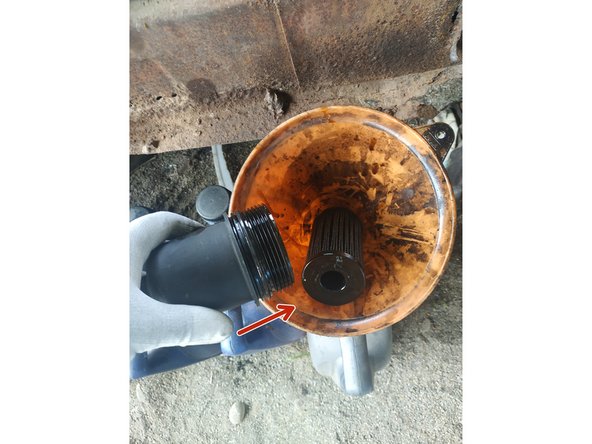

remove the filter from the bell and leave to drain

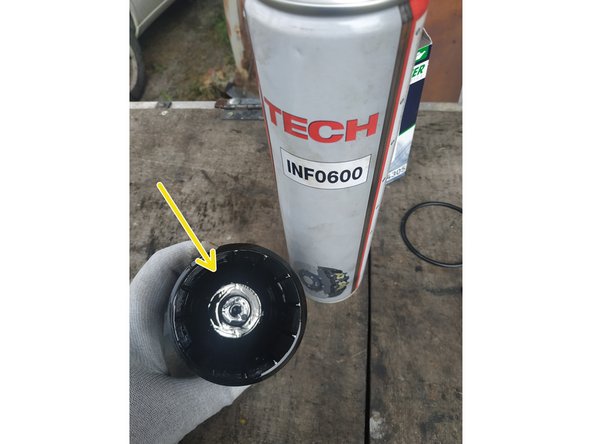

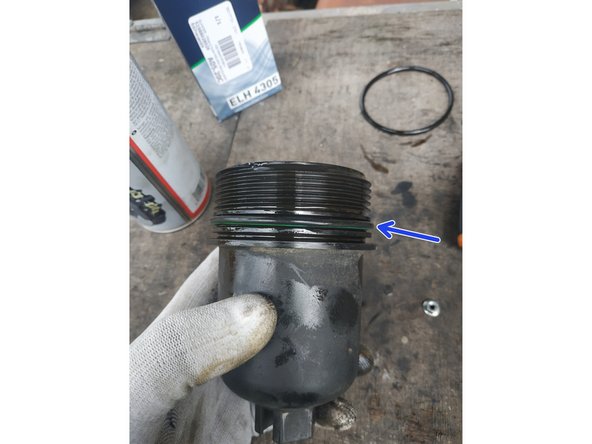

clean the bell

I use brake cleaner.

replace the bell O-ring (it is supplied)

I use a small flat head screwdriver to remove the old one.

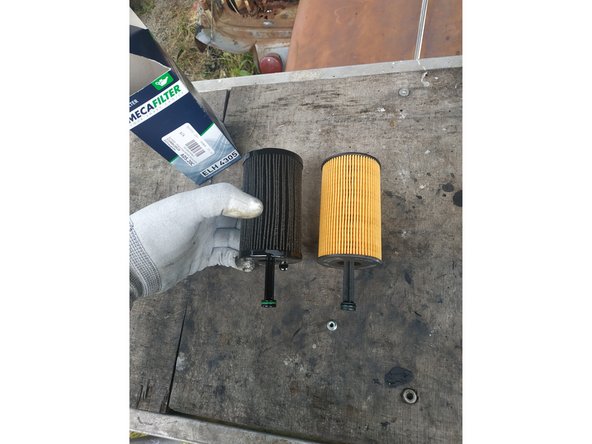

compare filters: shape, size, reference

OEM reference: 9463704780

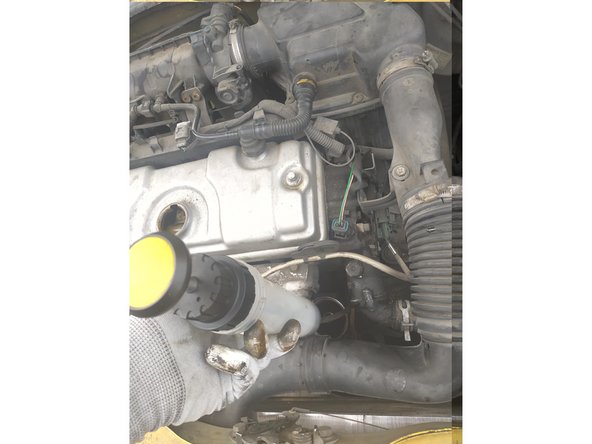

If desired, the oil contained in the filter holder can be emptied using a syringe.

I'm not sure this is absolutely necessary as you will never remove all the oil from the engine by changing the oil.

oil the filter O-ring

oil the bell o-ring

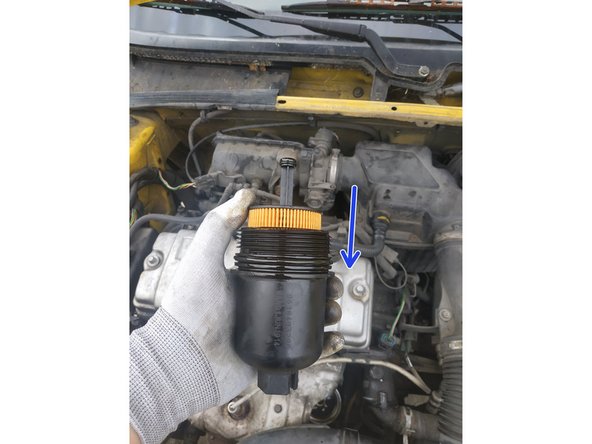

insert the filter into the bell

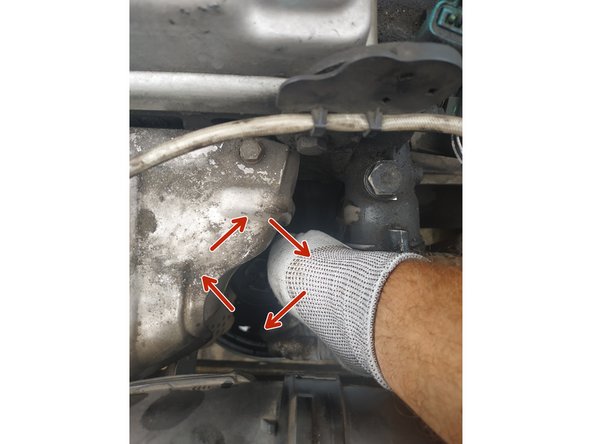

mount the bell and screw by hand

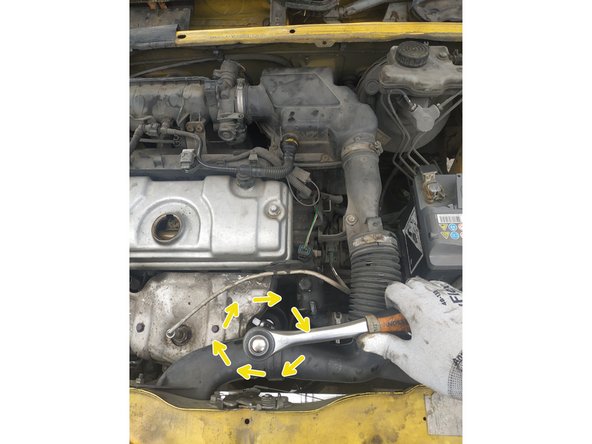

There should be no resistance. If it forces you, it means you are not in the nets: do not insist and start again from the beginning.

finish tightening with a 27mm ratchet and socket

Moderate tightening, torque of 25N.m.

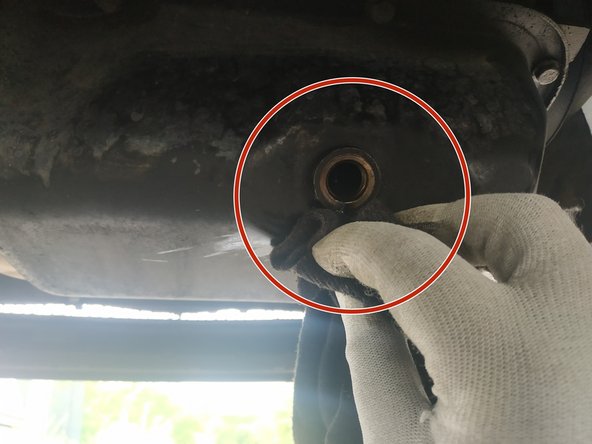

clean the crankcase with a cloth

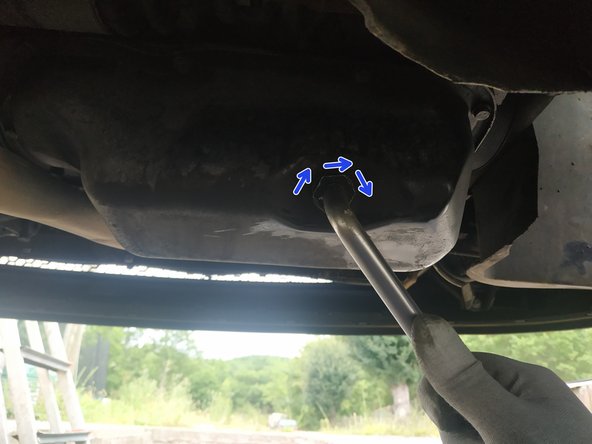

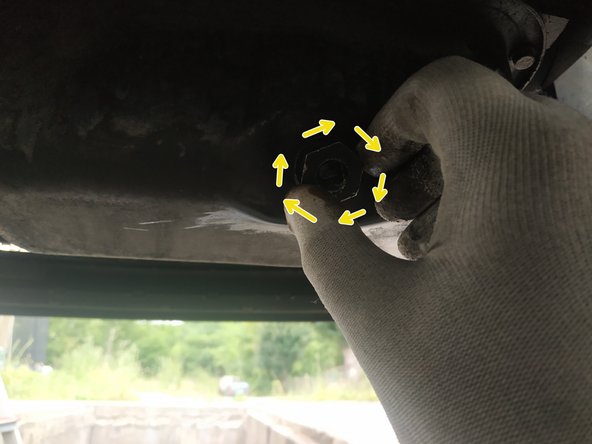

tighten the cap by hand

Be sure to put in a new gasket.

then finish with the 8mm key

Moderate tightening, torque of 30N.m

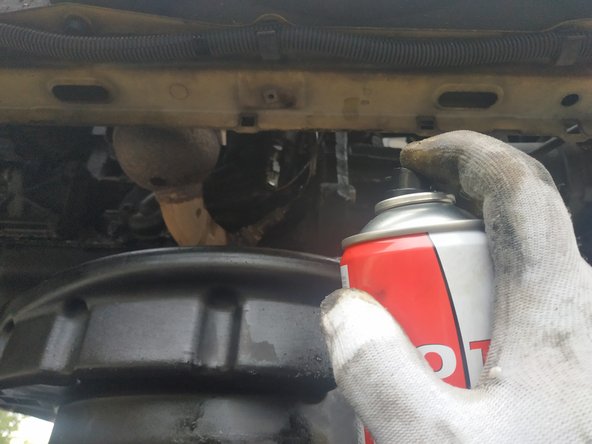

clean up the oil that leaked when the filter was removed

I also use brake cleaner here.

fill up with 10w40 oil, start by pouring 3 liters

Use a funnel if necessary.

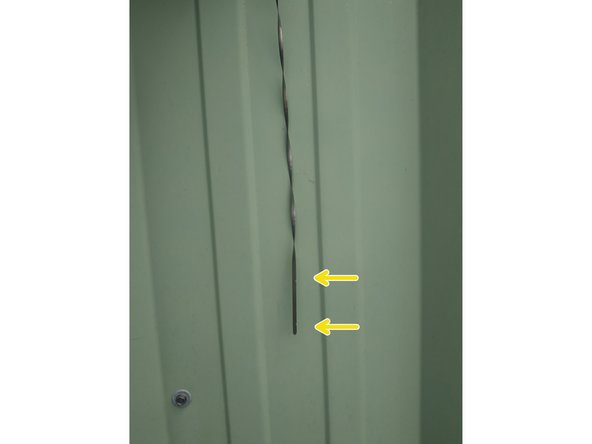

check the level on the gauge: the bottom notch represents the minimum, the top notch the maximum (complete if necessary: we aim to be just below the maximum)

put the gauge back in place

replace the filler cap

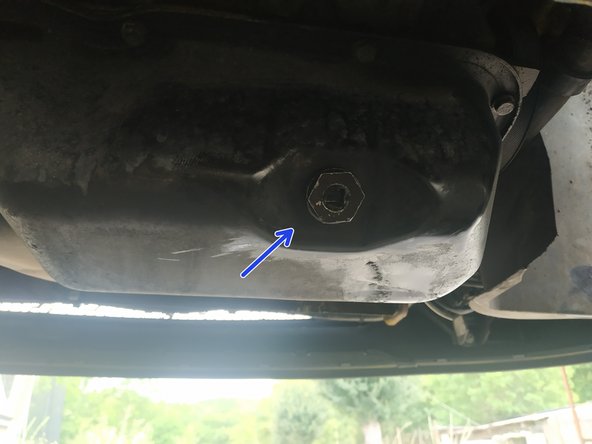

start and check for leaks (crankcase and filter)

You can turn off the engine and top up the oil: the level will have dropped since the oil filter will have filled up. You will check the level one last time when the engine is cold.

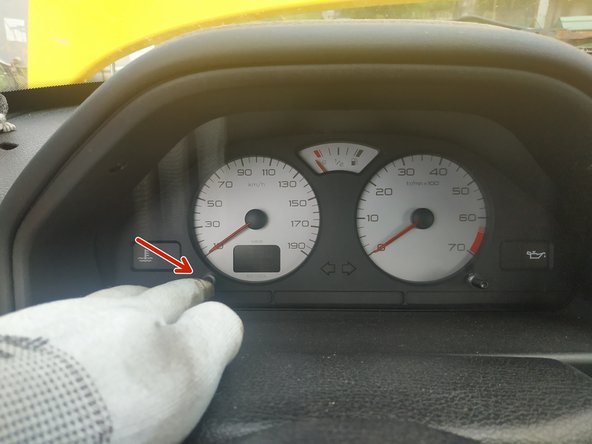

press (and hold) the trip meter button

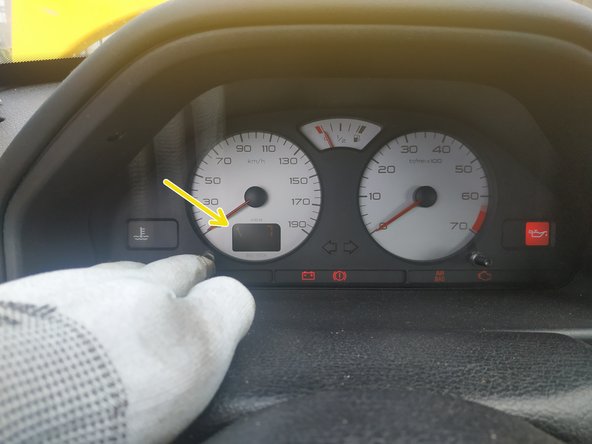

turn on the ignition and wait for the countdown to end before releasing the button

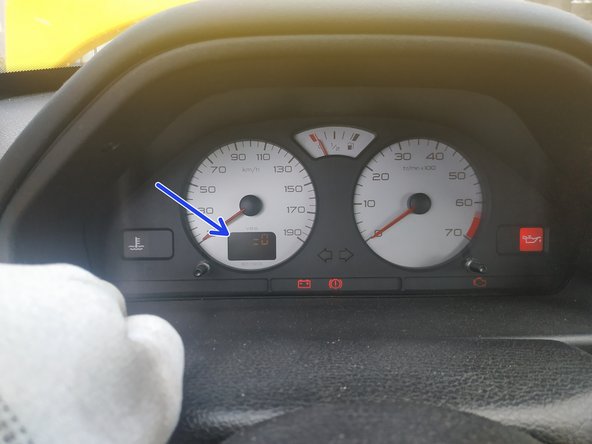

the maintenance counter is reset (you can turn off the ignition after that)

The used oil and the filter will be taken to a recycling center or any other facility that can recycle it. This step is an integral part of the oil change.
