Introduction
Renault Twingo 1 - 1.2 55cv
-
-
Before changing the oil, warm up the engine to facilitate the flow of oil.
-
Raise the front using a rolling jack, place 2 jack stands for added safety.
-
If you are working on a sloping surface, chock the vehicle.
-
-
-
Using a 10 socket wrench, completely unscrew the 9 hexagonal head screws.
-
-
-

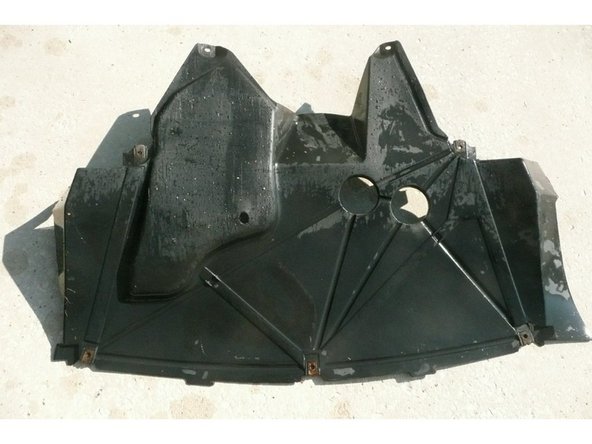

Remove the under-engine plate and clean both sides (car shampoo + HP cleaner if necessary)
-
-
-
Place a pan underneath and unscrew the drain plug using an 8x8 square wrench. Lower the car onto its wheels for a complete drain.
-
Let the oil drain for 10 minutes.
-
Put the car back on jack stands, remembering to wedge it.
-
-
-
The cartridge is located at the front of the engine next to the oil dipstick
-

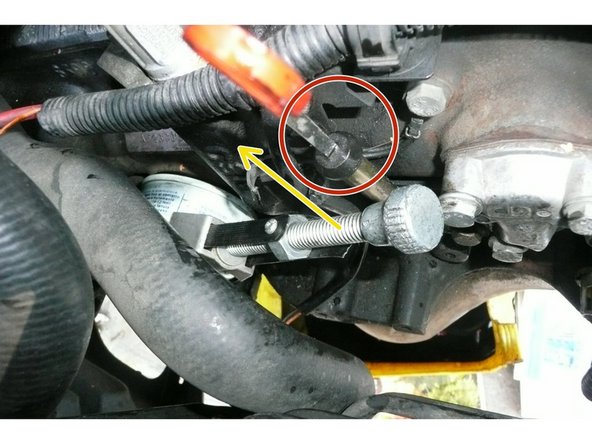

Remove the gauge to create an air intake
-

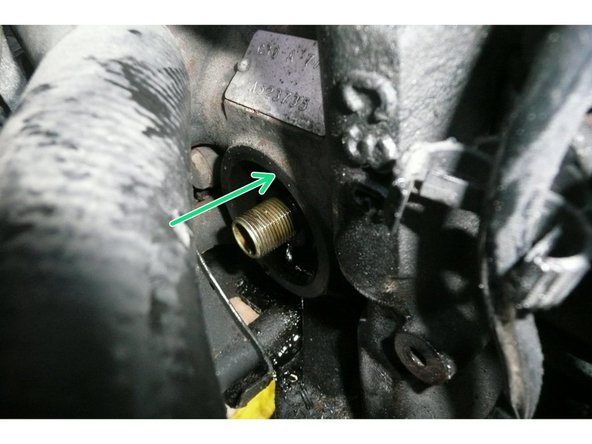

Place a strap wrench on the cartridge and loosen in the direction shown.
-
Remove the cartridge and wipe the seal face
-
-
-

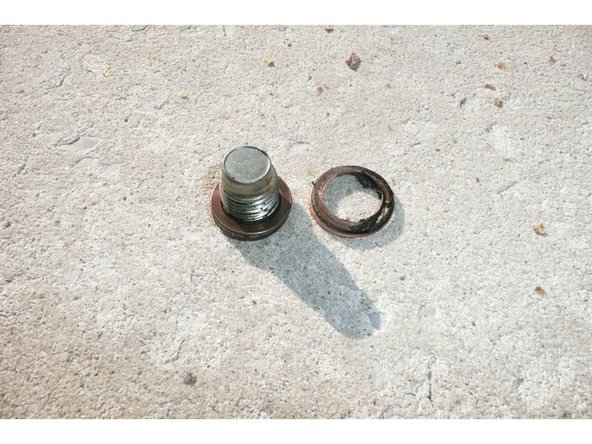

Replace the cap gasket, taking care to compare its diameter with the old one.
-
Tighten the plug moderately using the drain key.
-
-
-

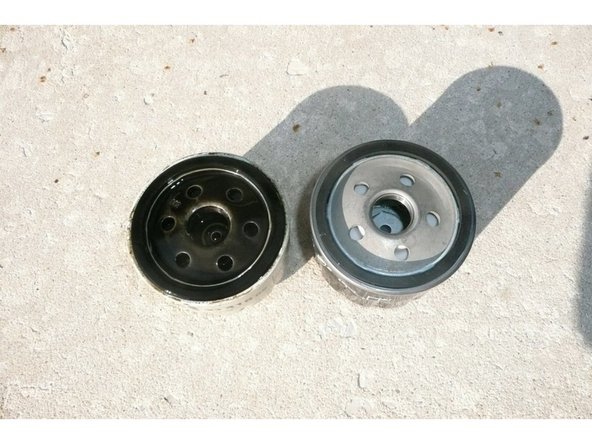

Check the correspondence of the new oil filter and the old one
-
Lightly oil the flat gasket to facilitate assembly.
-

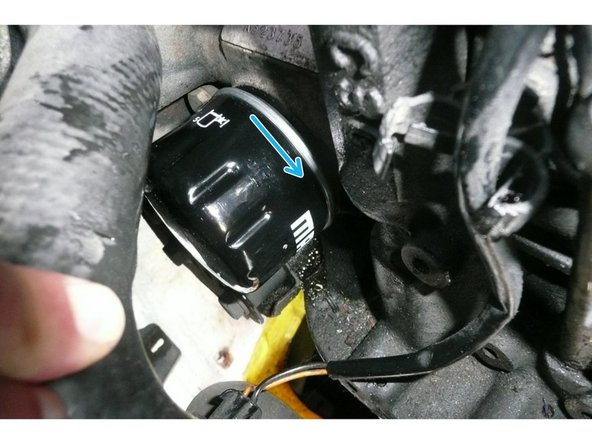

Screw in the new cartridge (direction of the arrow)
-
-
-
Moderately tighten the 9 fixing screws (direction of the arrow)
-
Fill the oil pan with 3.5 L of 10W-40 engine oil according to the manufacturer's instructions, lower the car and remove the shim, and you're done.
-
