Introduction
The oil filter helps ensure maximum purity of engine oil through filtration.
Video Overview
-
-
Remove the plastic cover
-
Withdraw le bouchon du carter
-
Position le bac à vidange
-
Remove the bolt and let the oil drain
-
Clean the crankcase plug
-
Changer le joint du bouchon
-
Check the condition of the plug thread
-
-
-
Unscrew the oil filter bell with la clé à filtre and a ratchet
-
Remove the oil filter from the bell
-
Remove the gasket from la cloche du filtre à huile
-
Compare the old and le nouveau filtre à huile
-
Replace the new seal
-
Clean the bell with un nettoyant frein
-
Reinstall the filter, screw the bell in by hand then tighten the bolt
-
Clean with degreaser
-
-
-
Once the oil has drained, screw the crankcase plug back on.
-

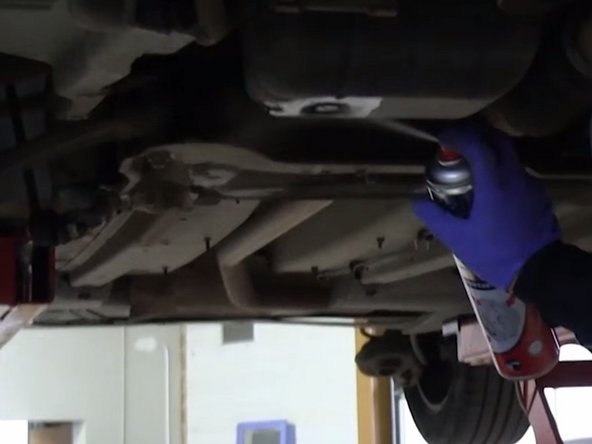

Clean around the cap with degreaser or brake cleaner
-
Tighten the bolt securely
-
-
-
The vehicle must be placed on the ground on a flat surface
-

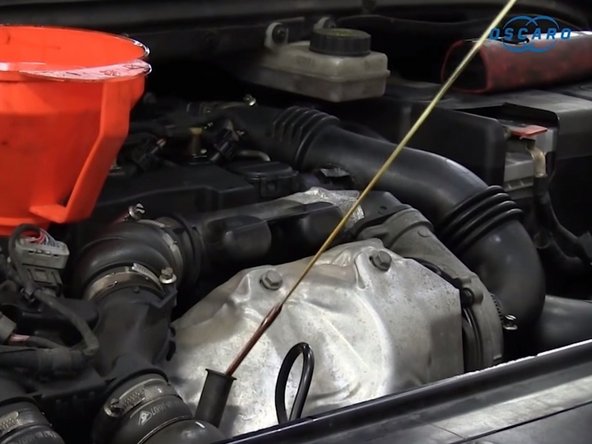

Unscrew the filler cap
-

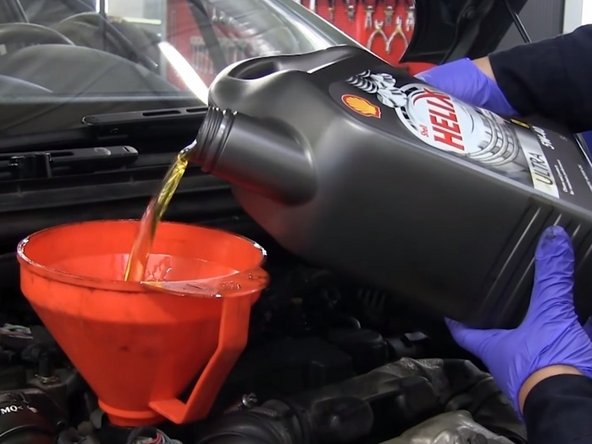

Position the funnel and pour 3 to 3.5 liters of oil
-
Carry out an initial check of the oil level using la jauge
-
Start the engine at idle, the level should be 1 centimeter above the minimum
-
Carry out a second level check using the gauge (1 cm below the max)
-
-
-
Once the levels are correct, reset the counter.
-
Turn on the ignition and press the button at the same time so that the counter is reset to zero.
-
Cancel: I did not complete this guide.
12 other people completed this guide.
Team
4 Comments
I found my answer, so I'll give it to those who might be wondering: it's the 27mm socket. The filter wrench is used to adapt to several types of filters, I think, but in any case, on the Peugeot 307 1.6 HDi that I did this weekend, it was a 27mm socket that was needed!
yann.prehu - Resolved on Release Reply
Good morning,
Is a special filter wrench absolutely necessary, or can a socket do the job? (and if so, by how much?!)
THANKS !
yann.prehu - Resolved on Release Reply
Thank you for this tutorial I was able to change the oil and diesel filter, air filter, cabin filter and oil filter within the allotted time. I just removed the windshield bay reinforcement bar to have a little more space. Excellent!! I recommend!
tof toffer - Resolved on Release Reply
