Introduction
Vehicle engine 1.4 HDi 70 hp
Parts
-
-
The elastic stop of the rear suspension is located close to the shock absorber.
-
In this case the rubber is damaged, it can be easily removed by hand or falls off by itself. It remains to remove the support which is fixed to the chassis.
-
Raise and support the rear of the vehicle, remove the two wheels.
-
Securing the vehicle: removing and refitting the wheel
-
-
-
In order to access the elastic stop attachment, it is necessary to remove the mudguard.
-
The mudguard is held in place by 4 plastic clips. Three in the wheel arch and one under the rear bumper.
-
And a nut fixed to the rear bumper. Use une clé à pipe de 10
-
-
-

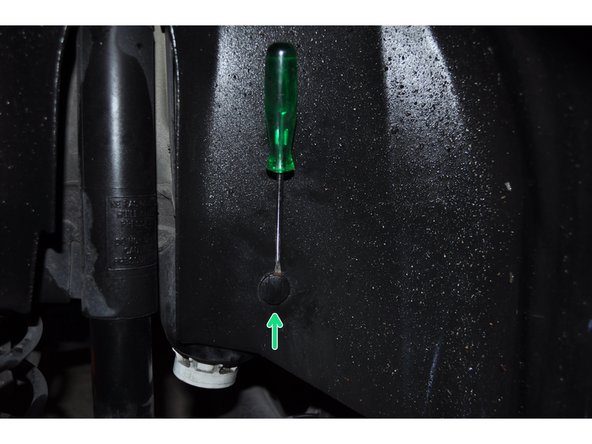

Using a flat-head screwdriver, lift the rectangular central part of the clip to remove it.
-

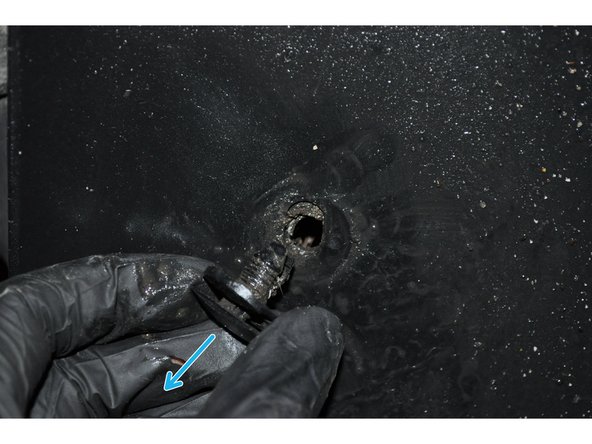

Once the center of the clip is lifted, simply pull on it to remove it.
-

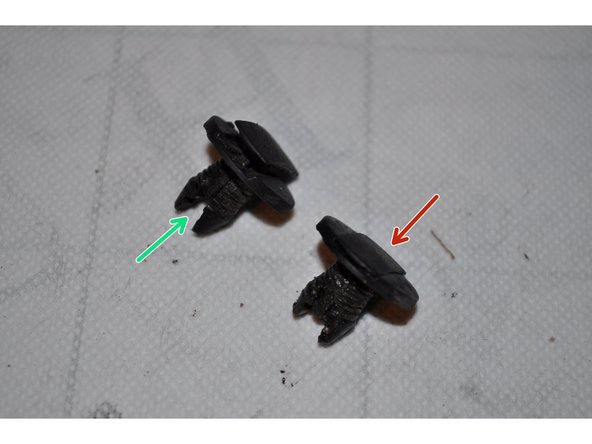

Comparison of an open and a closed fastener.
-
-
-
Access to the support clips is from above.
-
Using a flat-head screwdriver, break off the plastic tabs that hold the bracket to the chassis.
-
Hold the support from below.
-
-
-
Compare the dimensions of the elastic stop.
-
Insert the stopper nipple into the location provided on the chassis. It is important to check that the stopper is correctly attached.
-
Reassemble the mudguard and the wheel.
Well done, very good tutorial.
For my part, I did not have to remove the mudguard, I was able to remove the stops by pulling a little.
