Introduction
We will be replacing the rear license plate light bulbs.
To do this, you need the following tools:
- 2 flat screwdrivers.
- 2 new bulbs for rear license plate lights.
Tools
Parts
-
-
First, you need to remove the black plastic trim plate on the inside of the left rear door, where the license plate lights are located.
-
To do this, unclip the black circular plastic fixing elements, pressing on each element using 2 flat screwdrivers. (on my vehicle, there are 8 of them)
-
-
-

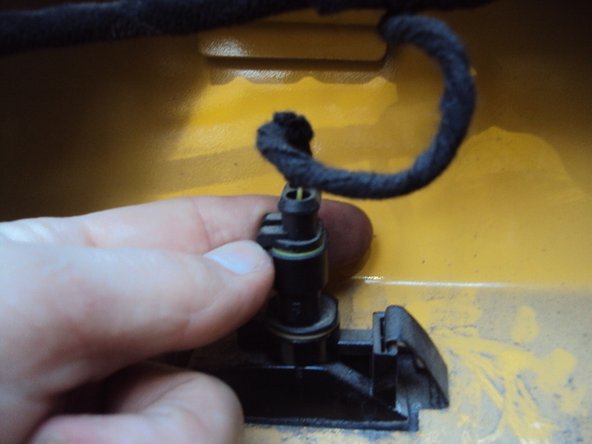

Next, you need to remove the socket-bulb assembly from each rear license plate light.
-
Grasp the socket between your thumb and index finger, and turn it a quarter turn counterclockwise (anti-clockwise).
-
You can then remove the socket-bulb assembly which separates from the rest of the light.
-
-
-
With your left hand, hold the socket, and with your right hand, pull the bulb out of the socket.
-
Reverse the procedure to install the new bulb.
-
Do the same for the other fire.
-
-
-
Once the bulbs have been changed, reinsert the bulb socket assemblies into their housings, rotating them a quarter turn clockwise.
-
-
-
Replace the black plastic plate as it was originally, and clip in the black circular fasteners.
-
Well done! You have successfully completed this tutorial for Fiat Fiorino. Your rear license plate should now be illuminated when you turn on your lights.
-
