Changing the front shock absorbers on a Citroën C3 II

Written By: zoran.minic (and 3 other contributors)
  • Comments: 11
  • Favorites: 1
  • Completions: 16

Difficulty

Moderate

Steps

21

Time Required

03:00:00

Sections

1

Flags

0

  1. Edit

  2. Remove the wiper arms Remove the 2 caps and loosen the nuts with a 16 wrench Remove the 2 caps and loosen the nuts with a 16 wrench

    • Remove the wiper arms

    • Remove the 2 caps and loosen the nuts with a 16 wrench

    Edit

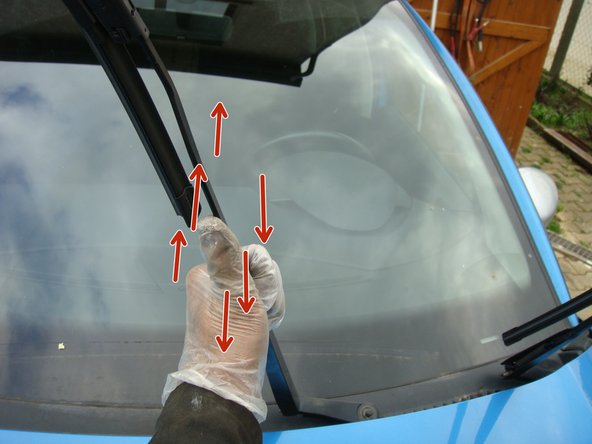

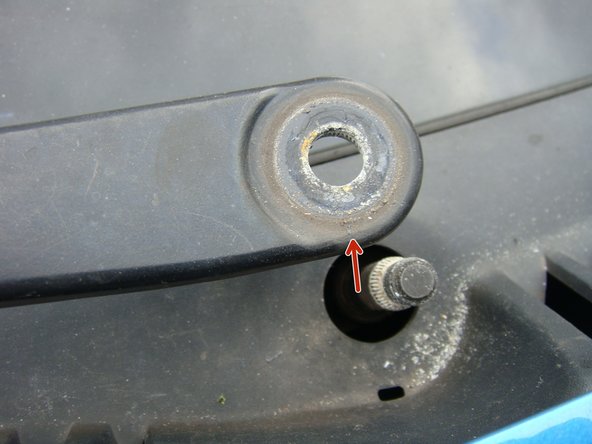

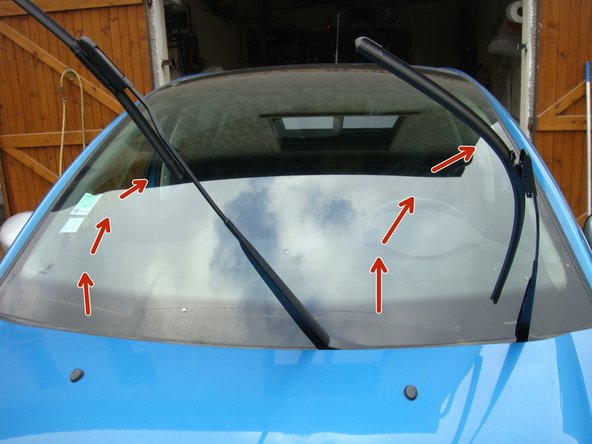

  3. Lift the wiper arms up and shake them firmly to detach them from the axle Lift the wiper arms up and shake them firmly to detach them from the axle Lift the wiper arms up and shake them firmly to detach them from the axle

    • Lift the wiper arms up and shake them firmly to detach them from the axle

    Edit

  4. Remove the windshield bay seal Remove the windshield bay seal

    • Remove the windshield bay seal

    Edit

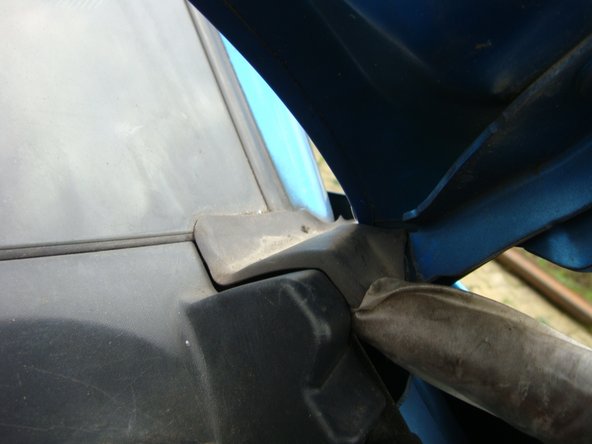

  5. Remove the seal on each side of the windshield bay corner Remove the seal on each side of the windshield bay corner Remove the seal on each side of the windshield bay corner

    • Remove the seal on each side of the windshield bay corner

    Edit

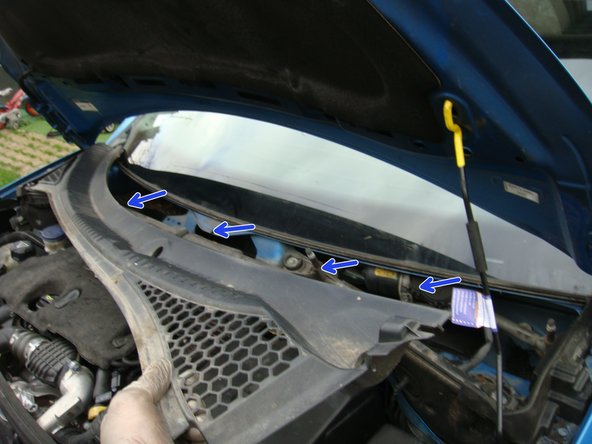

  6. Remove the windshield bay by unclipping it upwards The shock absorber head is visible The shock absorber head is visible

    • Remove the windshield bay by unclipping it upwards

    • The shock absorber head is visible

    Edit

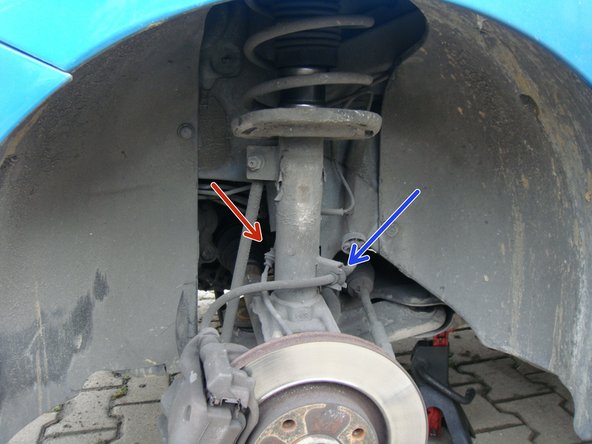

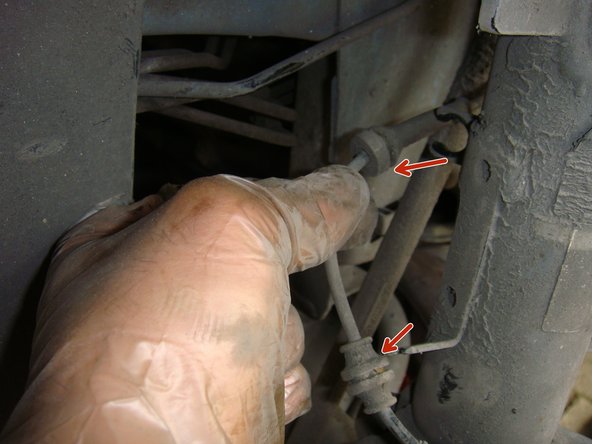

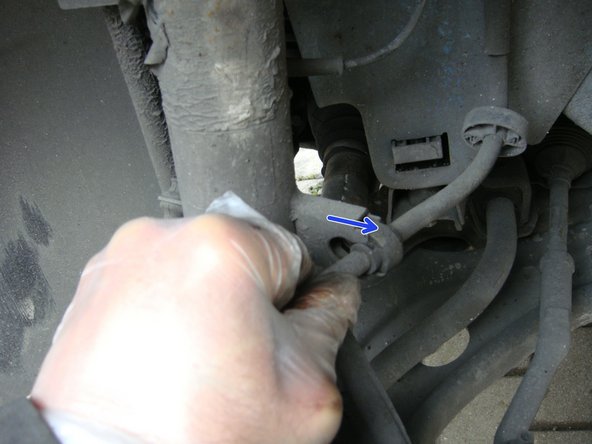

  7. Unhook the brake hose Unhook the ABS cable Unhook the ABS cable

    • Unhook the brake hose

    • Unhook the ABS cable

    Edit

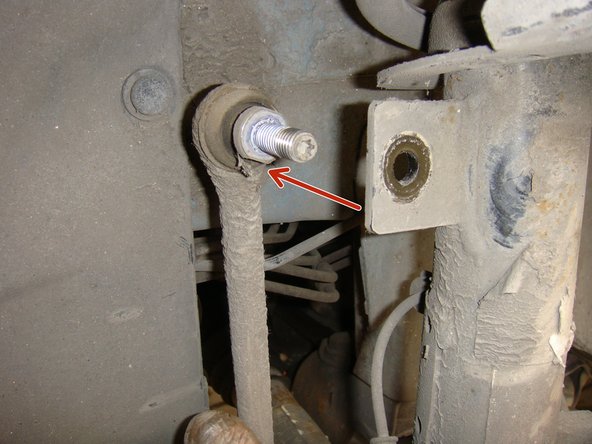

  8. Edit
  9. Edit

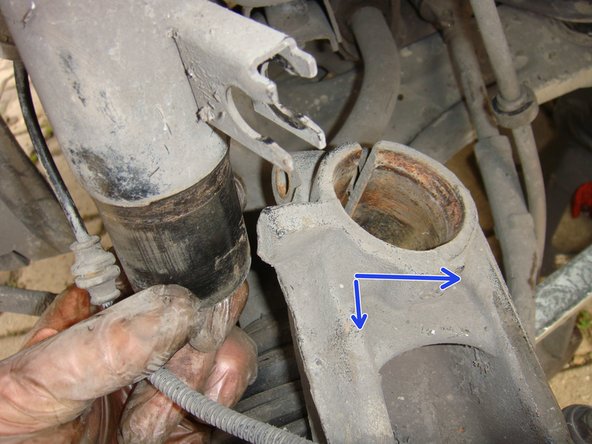

  10. Loosen the lower screw of the shock absorber with the 16 wrench and remove the With the help of a third person, separate the shock absorber from the hub carrier by pressing on le triangle using a sturdy bar. Rotate back to spread the spindle and remove the shock absorber

    • Loosen the lower screw of the shock absorber with the 16 wrench and remove the

    • With the help of a third person, separate the shock absorber from the hub carrier by pressing on le triangle using a sturdy bar.

    • Rotate back to spread the spindle and remove the shock absorber

    Edit

  11. Check that le cardan did not come out of the gearbox during the previous step

    • Check that le cardan did not come out of the gearbox during the previous step

    Edit

  12. Loosen the cup nut using a 21 wrench and a 7 Allen key to hold the shock rod which could turn when loosening Before completely removing the nut, hold the shock absorber from underneath to prevent it from falling. Before completely removing the nut, hold the shock absorber from underneath to prevent it from falling.

    • Loosen the cup nut using a 21 wrench and a 7 Allen key to hold the shock rod which could turn when loosening

    • Before completely removing the nut, hold the shock absorber from underneath to prevent it from falling.

    Edit

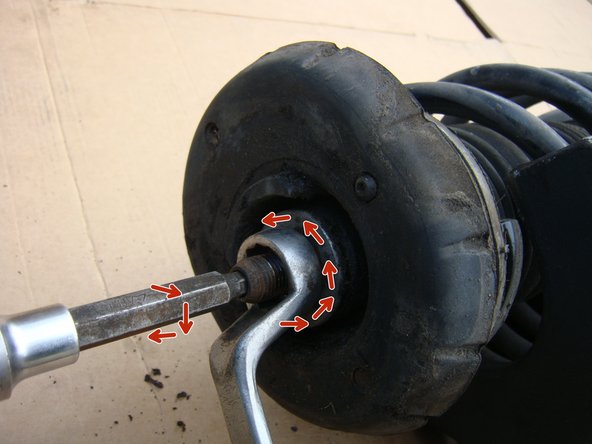

  13. Placer le compresse-ressort, release the stop nut then compress the spring until the pressure against the stop is released Placer le compresse-ressort, release the stop nut then compress the spring until the pressure against the stop is released Placer le compresse-ressort, release the stop nut then compress the spring until the pressure against the stop is released

    • Placer le compresse-ressort, release the stop nut then compress the spring until the pressure against the stop is released

    Edit

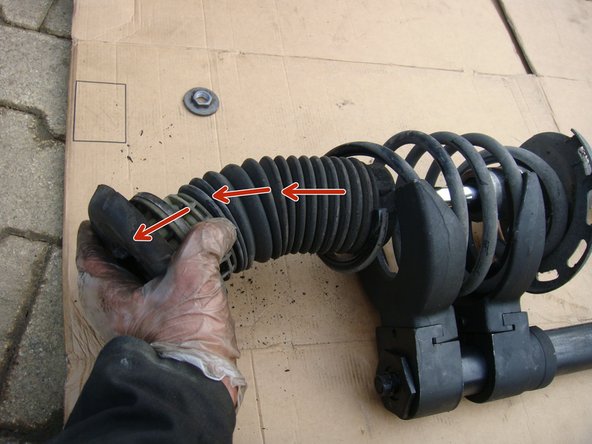

  14. Withdraw la buttée and its whole Separate the spring from the shock absorber

    • Withdraw la buttée and its whole

    • Separate the spring from the shock absorber

    Edit

  15. Compare all the parts to be replaced

    • Compare all the parts to be replaced

    Edit

  16. Position the spring on the shock absorber Insert the stop pad

    • Position the spring on the shock absorber

    • Insert the stop pad

    Edit

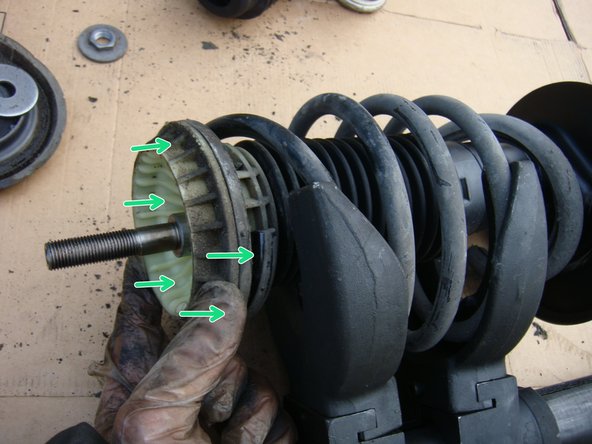

  17. Fit the bellows under the shock absorber stop before putting it on Place the stop on the top of the spring

    • Fit the bellows under the shock absorber stop before putting it on

    • Place the stop on the top of the spring

    Edit

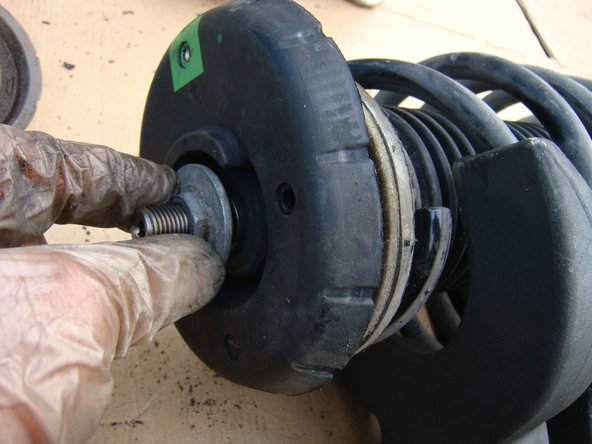

  18. Place the thrust washer Close the assembly with the shock absorber sole and bring the nut as close as possible Close the assembly with the shock absorber sole and bring the nut as close as possible

    • Place the thrust washer

    • Close the assembly with the shock absorber sole and bring the nut as close as possible

    Edit

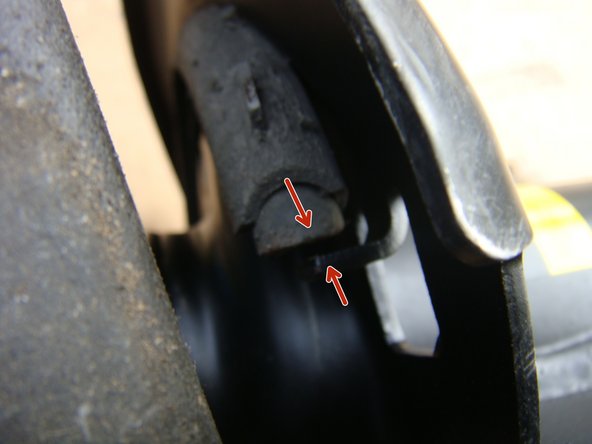

  19. Bring the bottom end of the spring up against the heel of l'amortisseur before completely decompressing the spring Lock the nut once the spring is completely decompressed

    • Bring the bottom end of the spring up against the heel of l'amortisseur before completely decompressing the spring

    • Lock the nut once the spring is completely decompressed

    Edit

  20. Reassemble everything in reverse order of steps. The rim is placed on the inside of the hole

    • Reassemble everything in reverse order of steps.

    • The rim is placed on the inside of the hole

    Edit

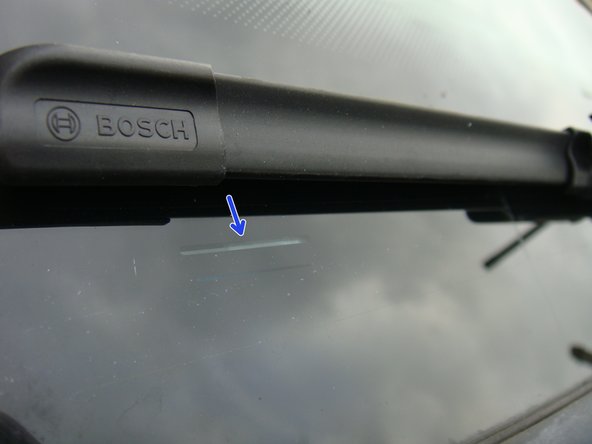

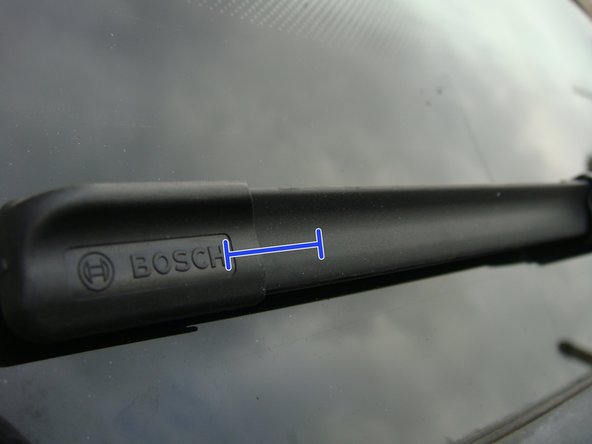

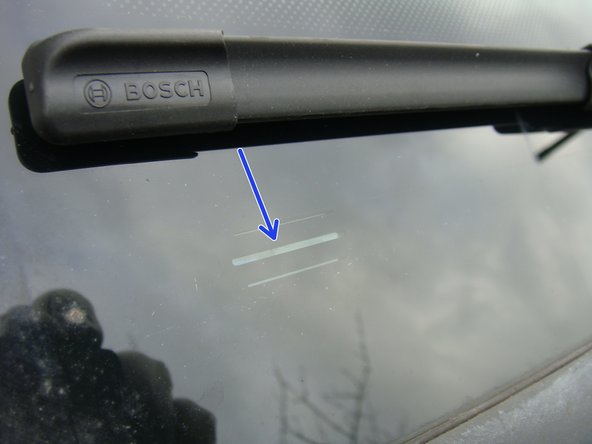

  21. Tip to perfectly adjust your wiper arms, before locking the nut, align the end of the blade with the mark on the windshield Tip to perfectly adjust your wiper arms, before locking the nut, align the end of the blade with the mark on the windshield Tip to perfectly adjust your wiper arms, before locking the nut, align the end of the blade with the mark on the windshield

    • Tip to perfectly adjust your wiper arms, before locking the nut, align the end of the blade with the mark on the windshield

    Edit
