Introduction
Unlike most Yaris models which have a horizontal filter, pre-2007 Yaris 2 1.3 VVT-I models have a vertical filter. Find out how to easily replace it.
Tools
No tools specified.
Parts
-
-

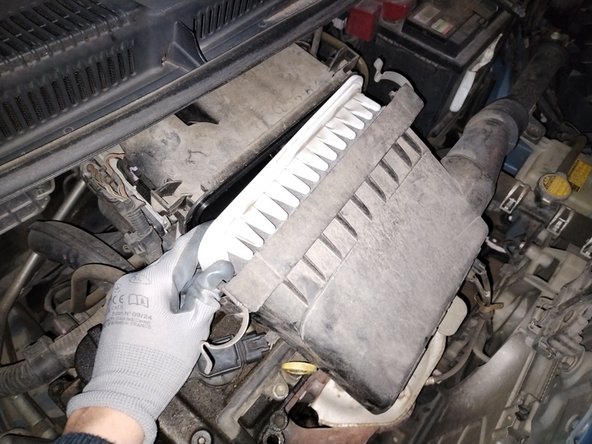

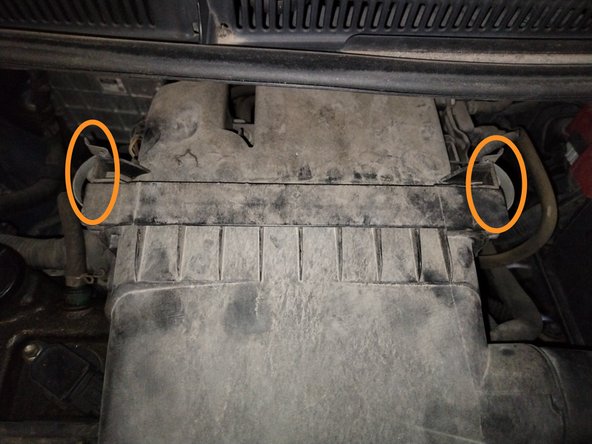

By pulling the movable part of the box (the one where the large pipe is attached) upwards and forwards, you will be able to open it and remove the filter.
-
-
-

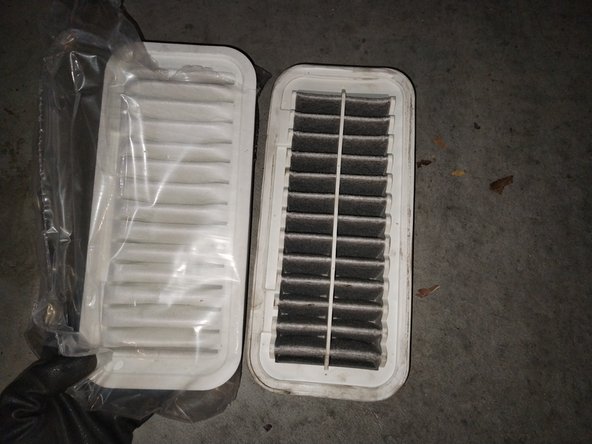

Compare the old and new filters to verify that they have the same dimensions.
-

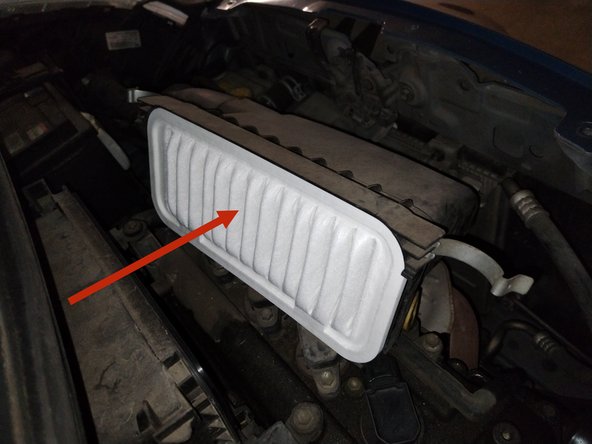

Place the new filter in place of the old one. Check that the seal is correctly positioned all around the box. The larger side of the filter should face forward.
-
-
-

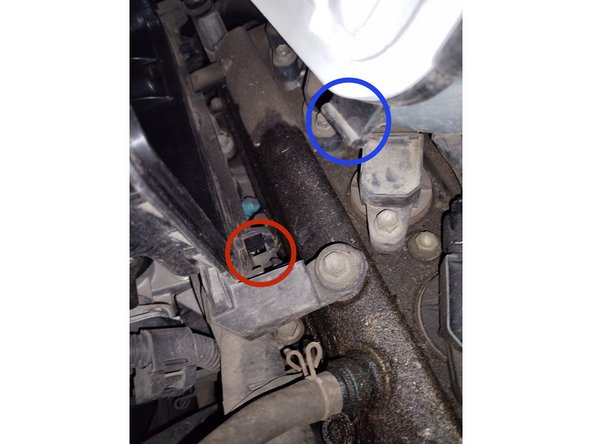

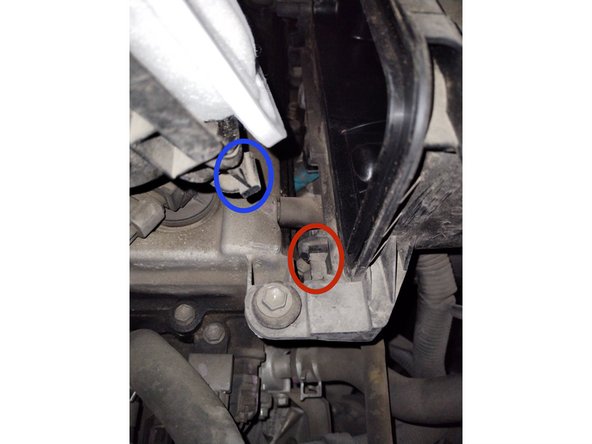

Close the box. It has two spurs which must each be placed in their support respective.
-
And there you have it! Your air filter is brand new!
And there you have it! Your air filter is brand new!
