Changing the air filter on Peugeot 306 1.6 petrol

First, you must disconnect the hoses to access the filter.

Take the pipe at the top left and pull on it (it comes out easily)

Press the small yellow clips on the lower hose and pull

You will have to pull a little harder than on the first branch, pressing firmly on the clips.

you will have to unscrew the collar with a screwdriver

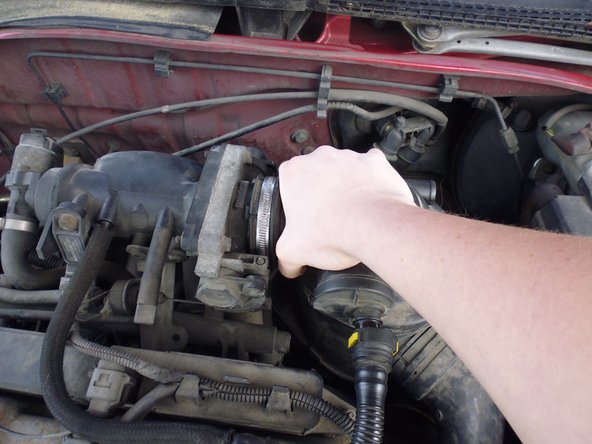

Once the clamp is loose, pull the hose to the right.

Now there are two small fasteners left to lift. The first one at the bottom right, the other at the top left.

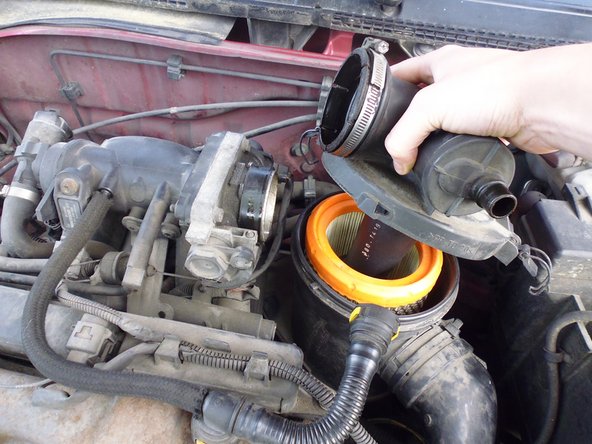

Once the clips are lifted, turn the cover counterclockwise to unclip it.

You will then have access to the air filter and can remove it

Install your new air filter, don't forget to check the comparison between the old and new air filter

There is no particular direction, just put it right at the bottom.

then you have to do everything again in reverse

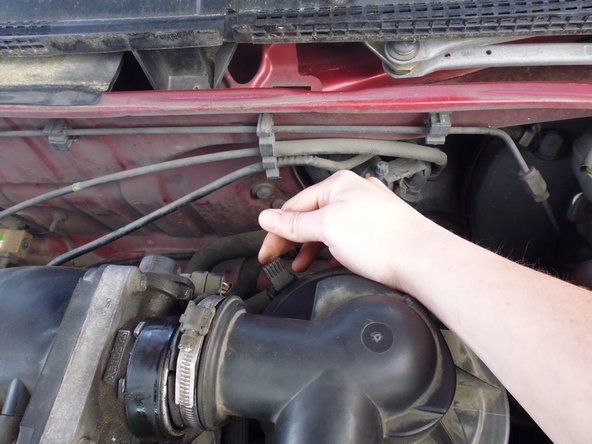

Replace the cover over the filter and turn clockwise to clip it into the notches

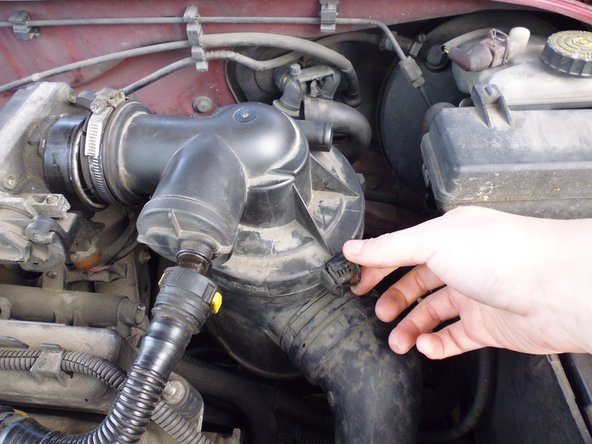

Once in the notches, reattach the two fasteners

We will then put back the large pipe with its tip

Do not hesitate to move the air box to put it in properly.

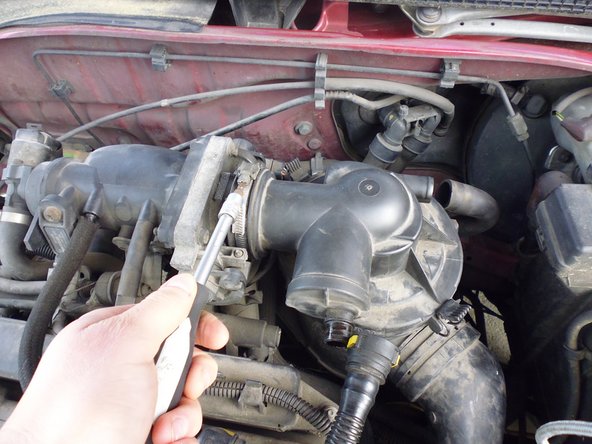

Once in the correct position, tighten the collar using the screwdriver.

Be careful to tighten the collar properly.

Then take the bottom end with the yellow clips and put it back in place

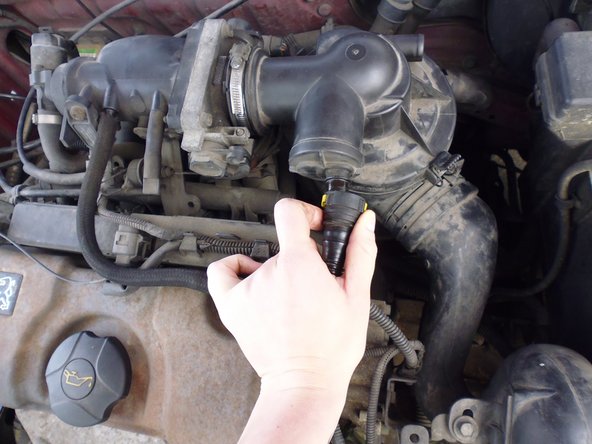

a "click" indicates that the hose is properly engaged

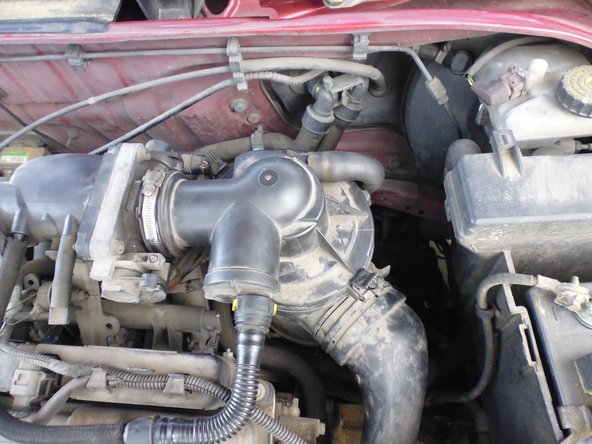

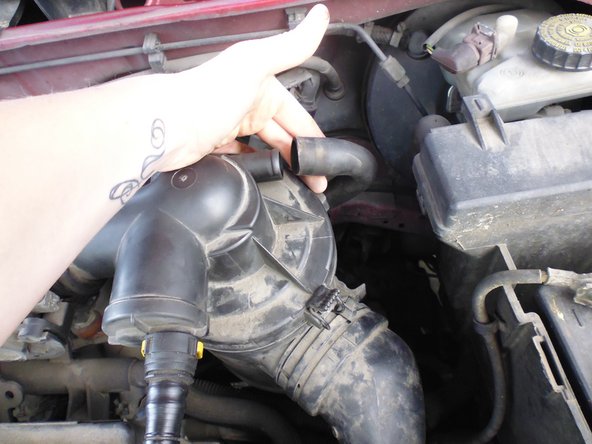

Finally, you have the right pipe which goes in almost by itself.
