Changing the air filter on Peugeot 106 1.5 D

Written By: arnaud.janssen (and one other contributor)
  • Comments: 0
  • Favorites: 0
  • Completions: 1

Difficulty

Easy

Steps

7

Time Required

00:10:00

Sections

1

Flags

1

Ce tutoriel a été créé par la communauté

Ce tutoriel a été créé par la communauté

User contributed

  1. Removing the air box is not mandatory, in my situation the vehicle was restarted after 3 years of immobilization, the screws being blocked I had no choice I use a 1/8 ratchet and a 7 mm socket to unscrew the two clamps, in order to disengage the two intake hoses I use a 1/8 ratchet and a 7 mm socket to unscrew the two clamps, in order to disengage the two intake hoses

    • Removing the air box is not mandatory, in my situation the vehicle was restarted after 3 years of immobilization, the screws being blocked I had no choice

    • I use a 1/8 ratchet and a 7 mm socket to unscrew the two clamps, in order to disengage the two intake hoses

    Edit

  2. unplug the two hoses Unscrew the 10mm screw that holds the air box. I use a 3/8 ratchet, an extension and a 10mm socket

    • unplug the two hoses

    • Unscrew the 10mm screw that holds the air box.

    • I use a 3/8 ratchet, an extension and a 10mm socket

    Edit

  3. Remove the box by pulling it upwards Locate the air box cover screw, 6 x 4 mm BTR screws Locate the air box cover screw, 6 x 4 mm BTR screws

    • Remove the box by pulling it upwards

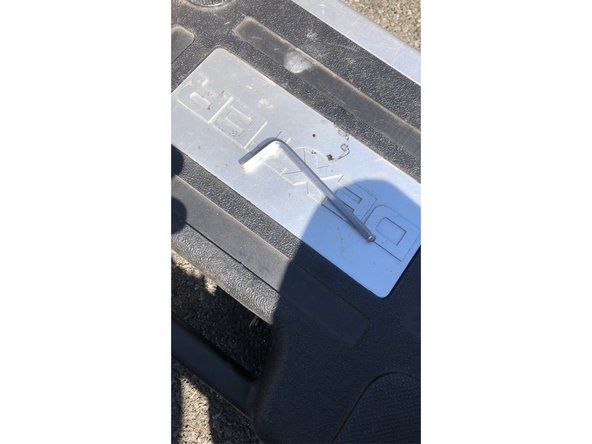

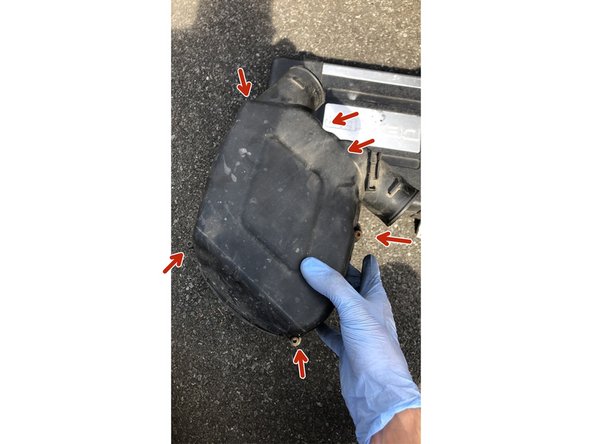

    • Locate the air box cover screw, 6 x 4 mm BTR screws

    Edit

  4. Remove the cover Remove the cover Remove the cover

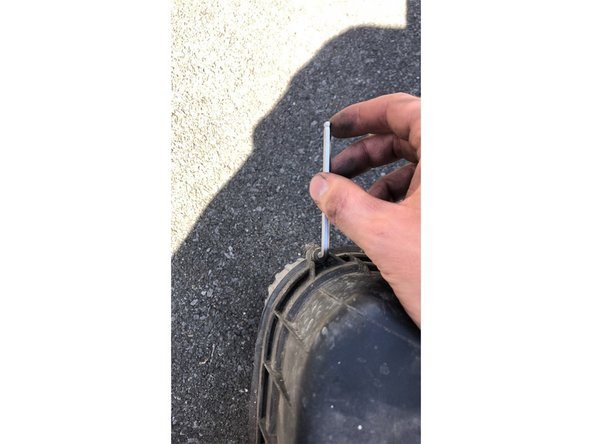

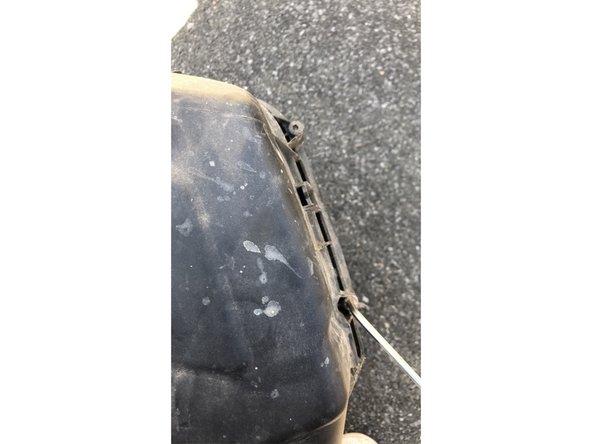

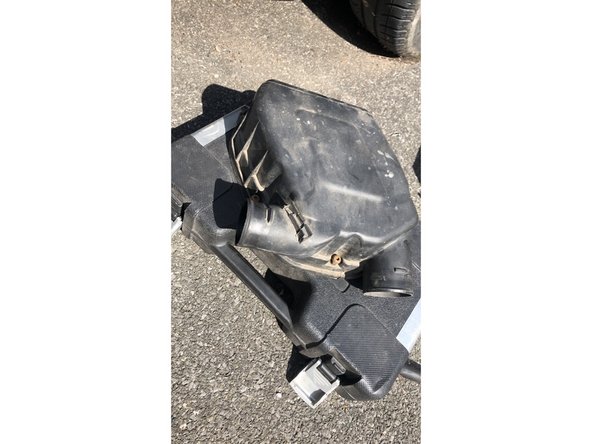

    • Remove the cover

    Edit

  5. Remove the old filter from the air box Compare the two filters Compare the two filters

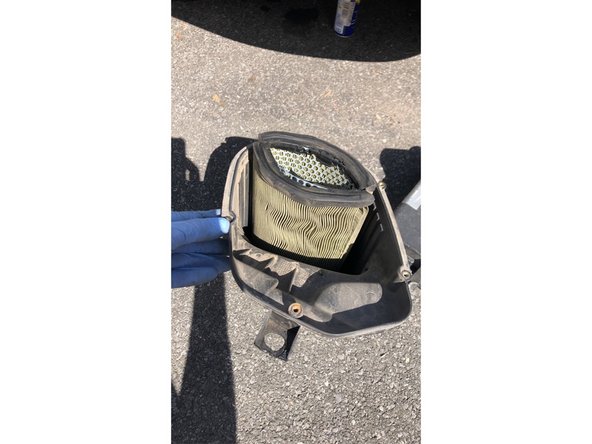

    • Remove the old filter from the air box

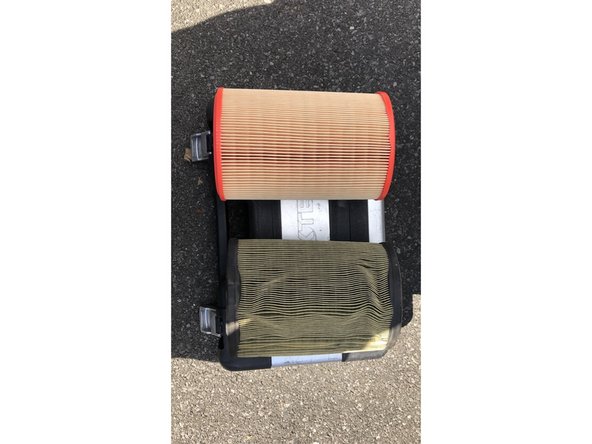

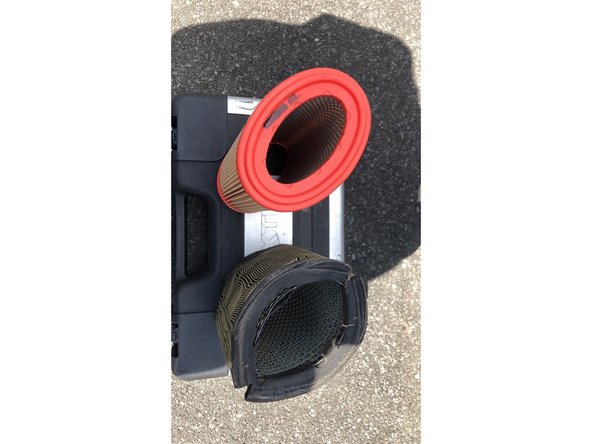

    • Compare the two filters

    Edit

  6. I vacuum the inside of the box Locate the oval shape in the box the filter being oval in shape, it is placed directly on top

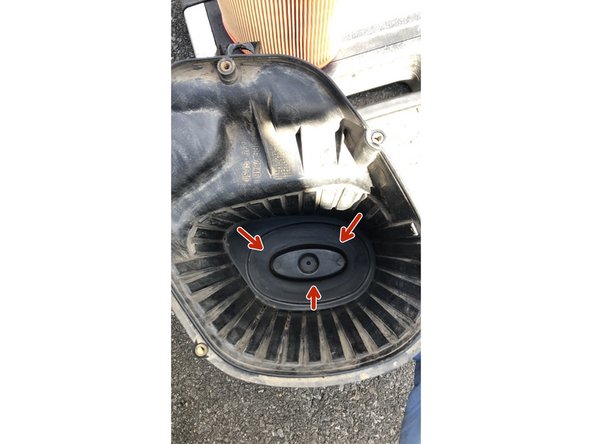

    • I vacuum the inside of the box

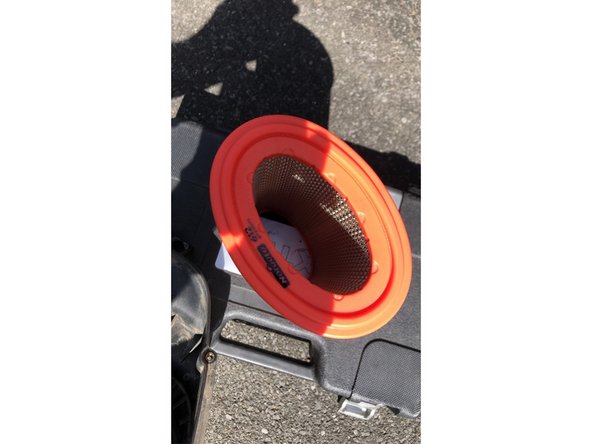

    • Locate the oval shape in the box

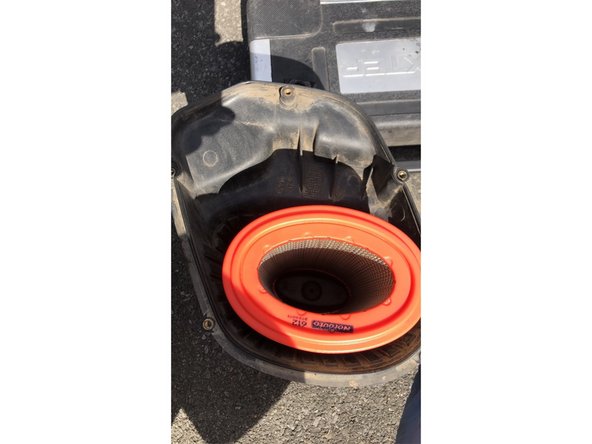

    • the filter being oval in shape, it is placed directly on top

    • replace the air box cover

    Edit

  7. Screw in the 6 4 mm BTR screws Replace the air box in its housing Re-fit the two intake hoses

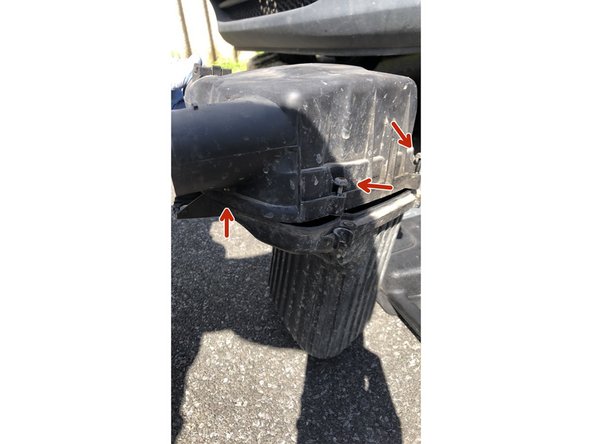

    • Screw in the 6 4 mm BTR screws

    • Replace the air box in its housing

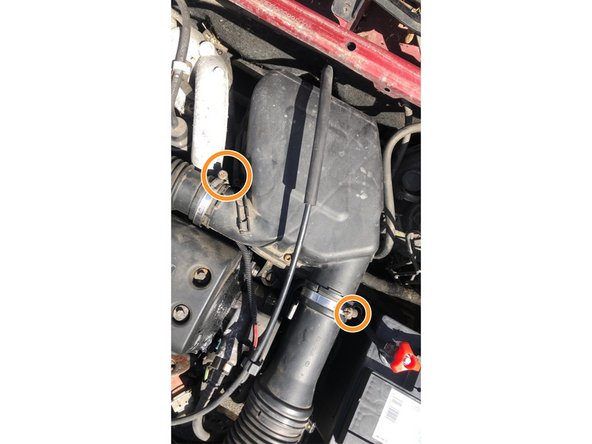

    • Re-fit the two intake hoses

    • Tighten both clamps to complete the operation.

    Edit
Finish Line

One other person completed this guide.
