Changing the air filter - Peugeot 106 1.4i

The air filter is located in the engine compartment

Open the hood, the hood release handle is located under the steering wheel

The air box is located just behind the engine

Remove the connector on the top of the air box

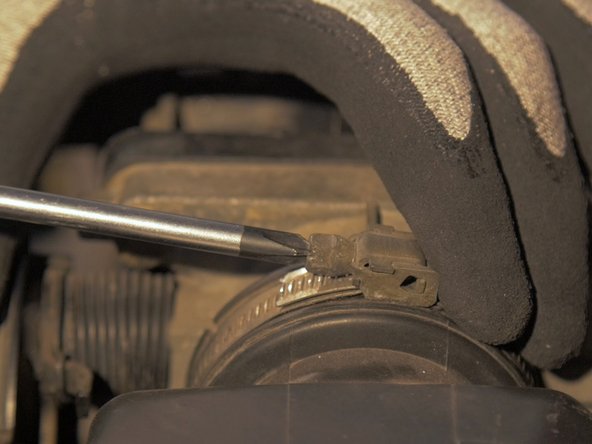

Loosen the clamp screw on the throttle body with a flat screwdriver

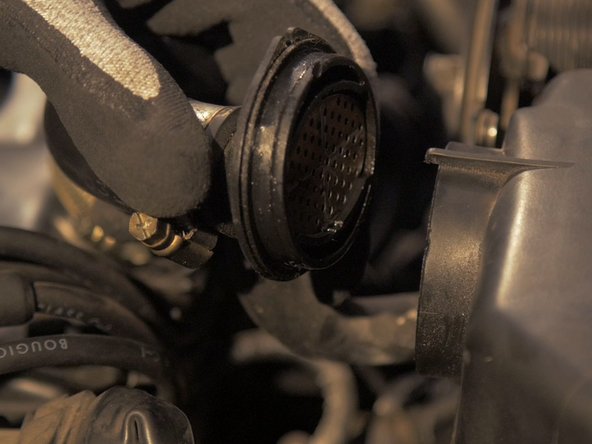

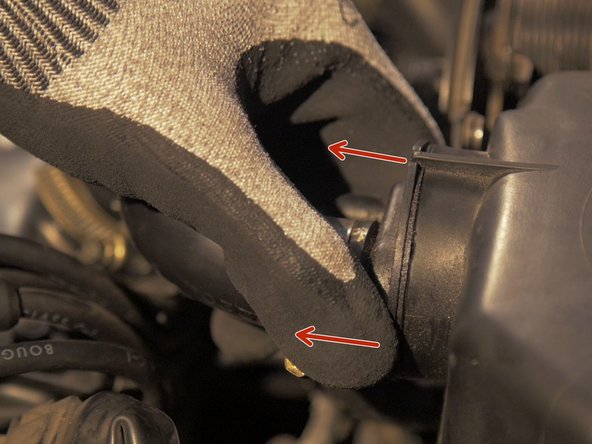

Remove the breather by simply pulling on it

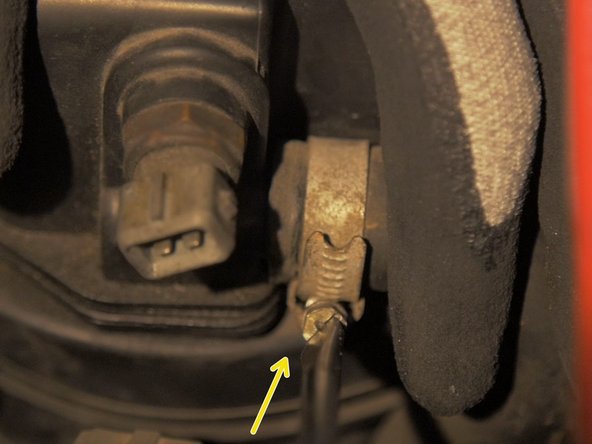

Loosen the air connector hose clamp at the rear of the air box with a flat screwdriver

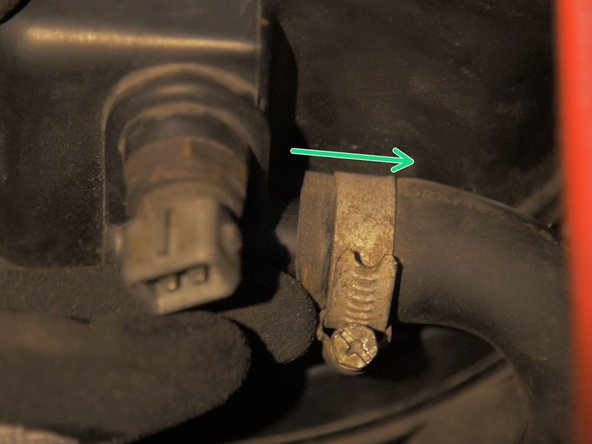

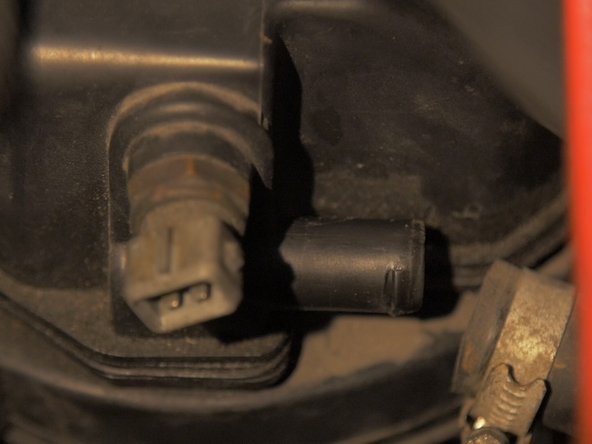

Push the hose to remove it

Open the clip holding the air box cover

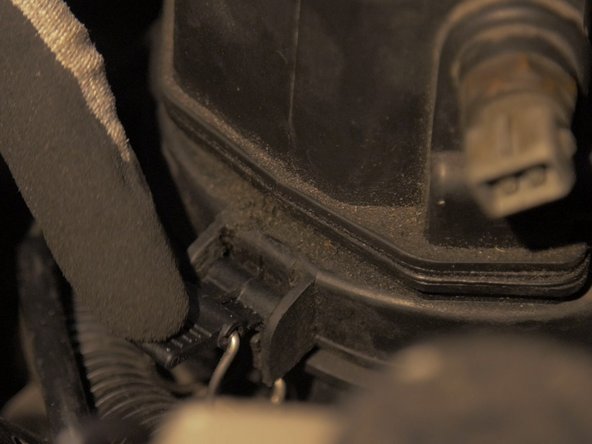

A second clip is present behind the air box, repeat the operation

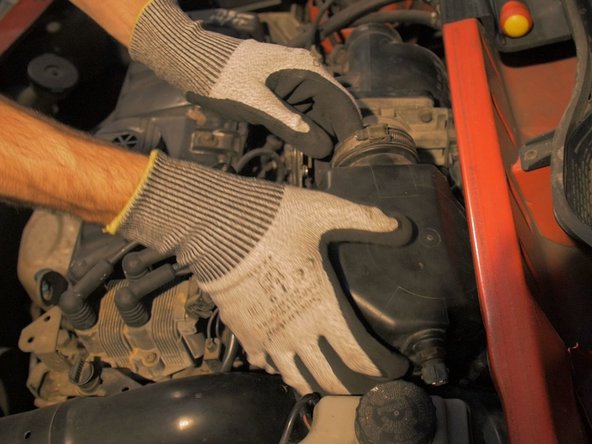

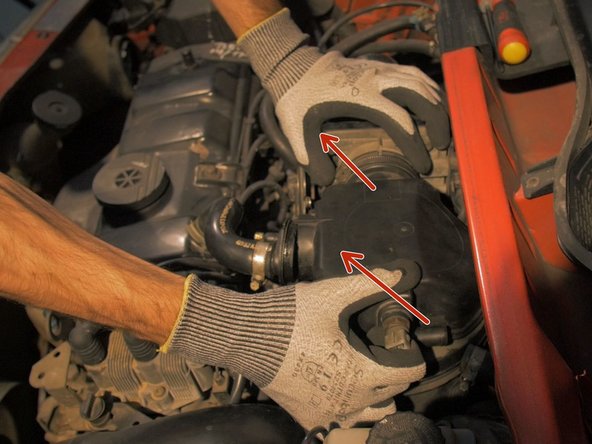

Pull the cover to remove it

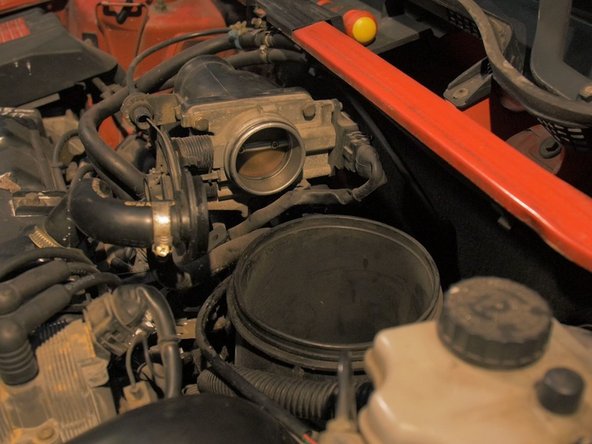

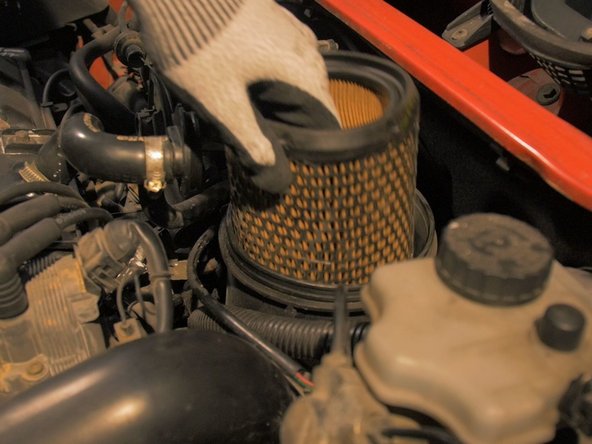

Remove the air filter

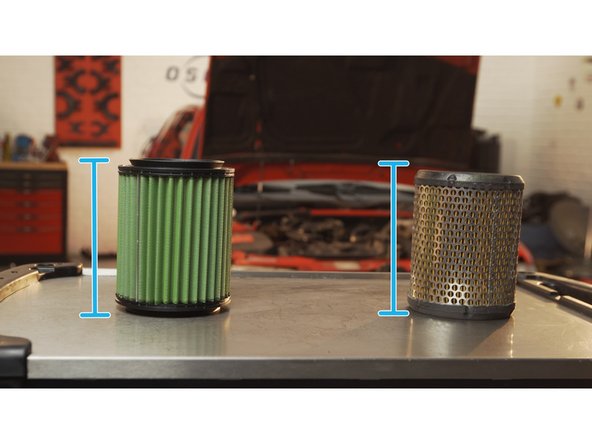

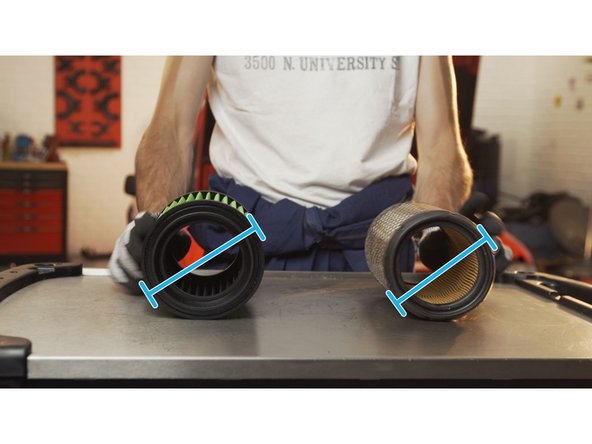

Compare the dimensions of the new filter with the old one

Place a rag in the hose located at the bottom of the air box and at the entrance to the throttle body.

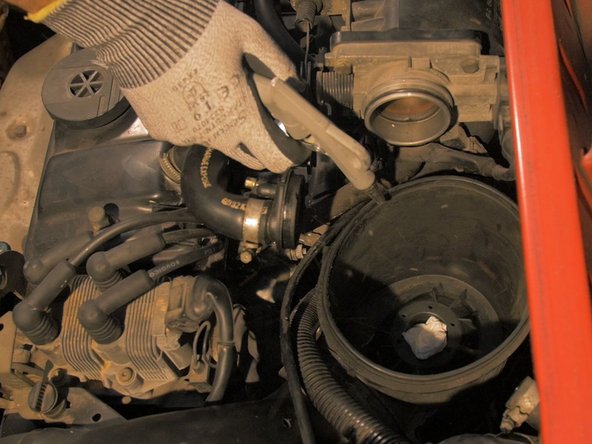

Using a blower, remove any residue present in the air box.

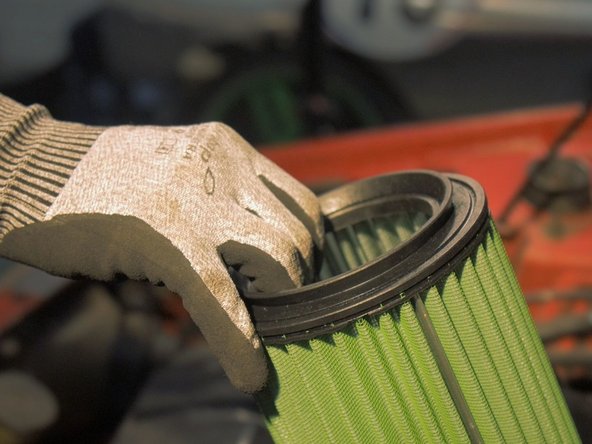

Remove the rags

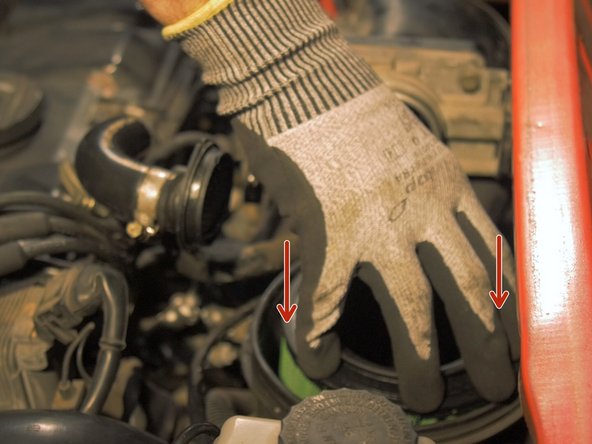

Replace the air filter in its location

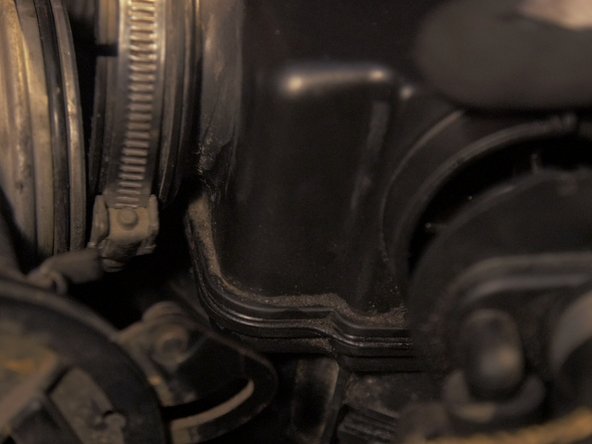

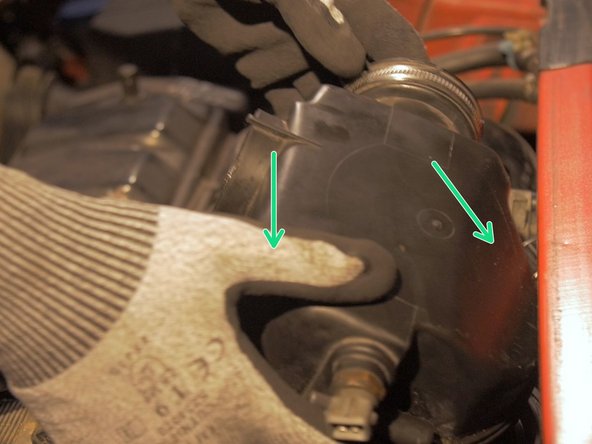

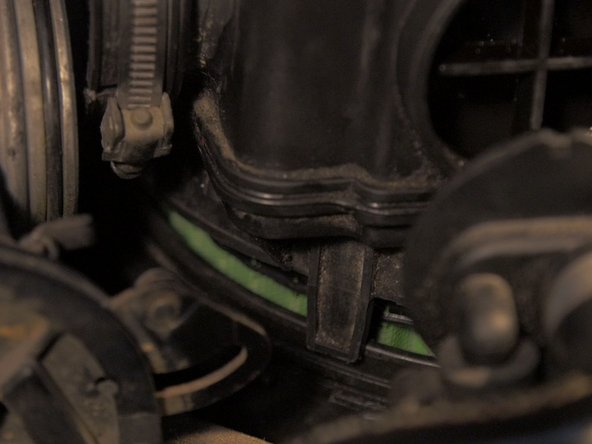

Replace the air box cover on the filter

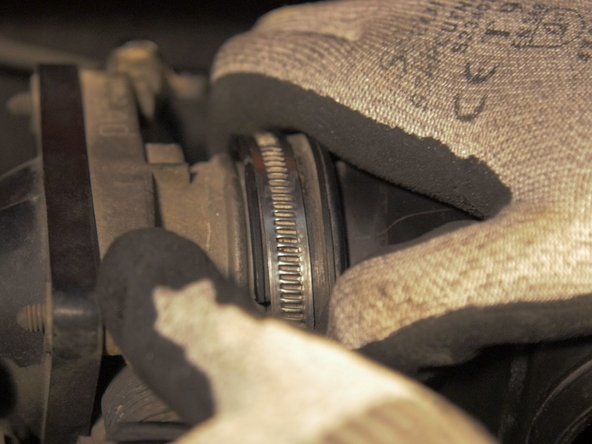

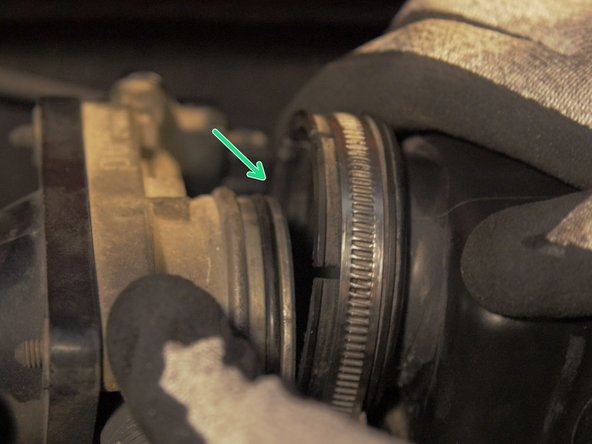

Fit the cover onto the throttle body inlet

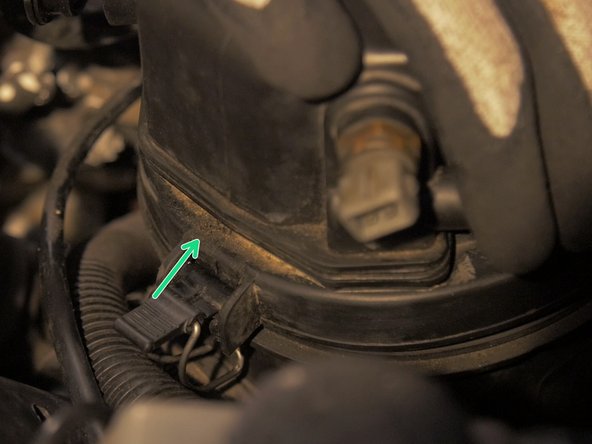

Once the cover is correctly positioned, close the two clips of the air box.

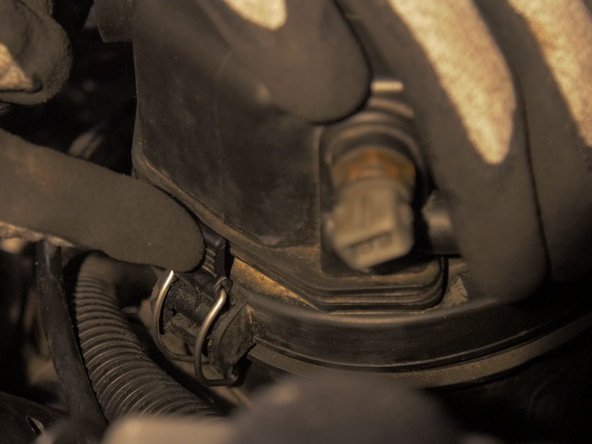

The second clip is similar and is located behind the air box

Replace the breather on the air box cover

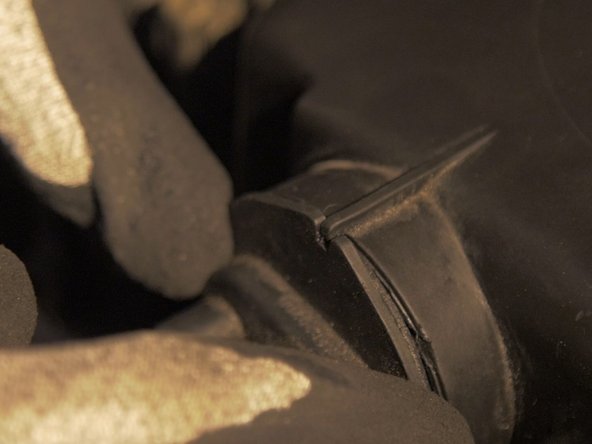

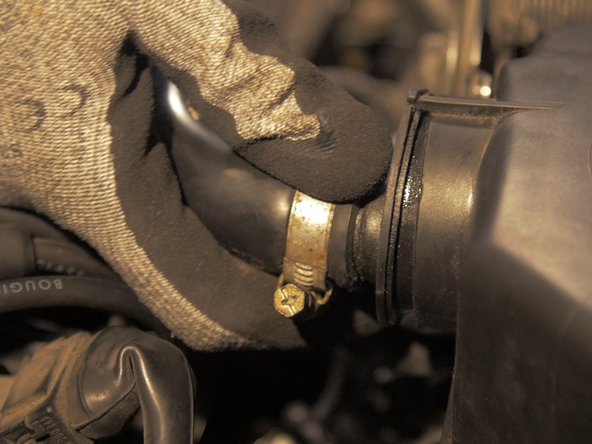

A guide is present on the top

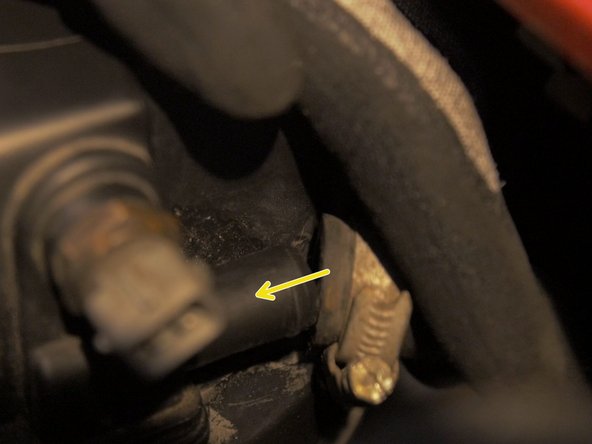

Replace the air connector hose at the rear of the air box

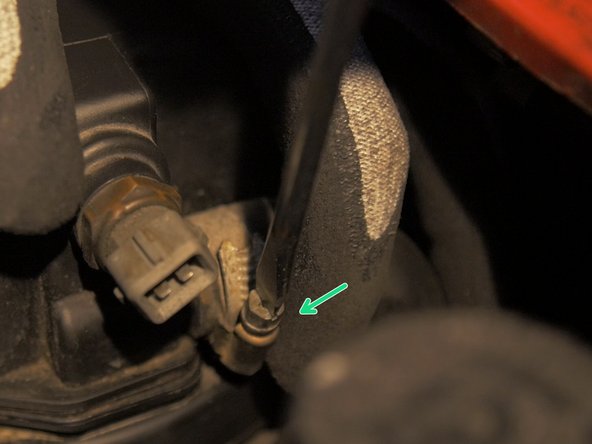

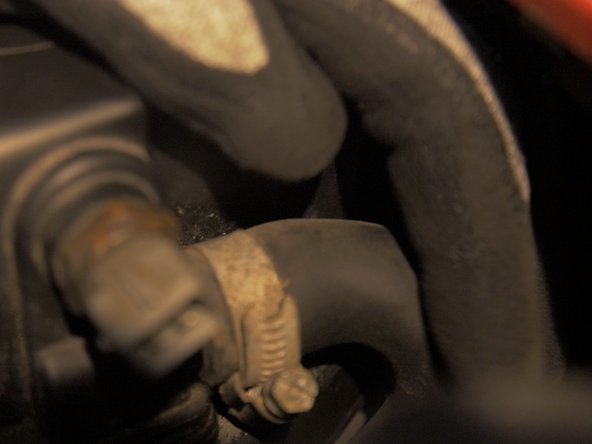

Tighten the hose clamp with a flat screwdriver

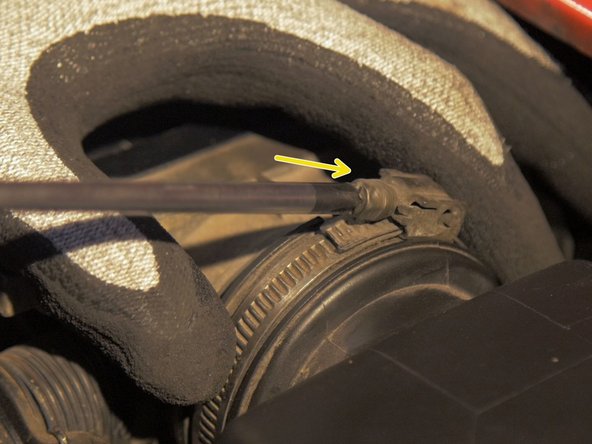

Tighten the collar on the throttle body

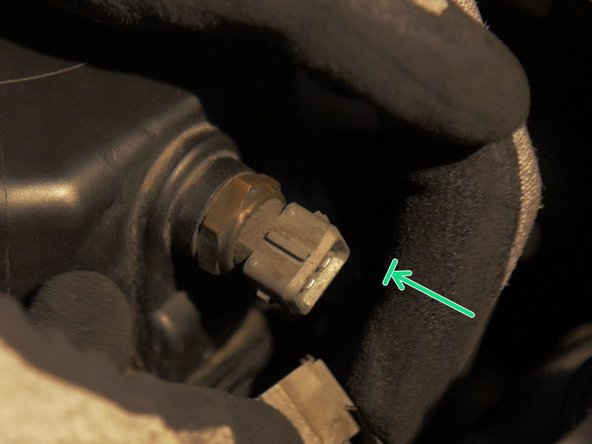

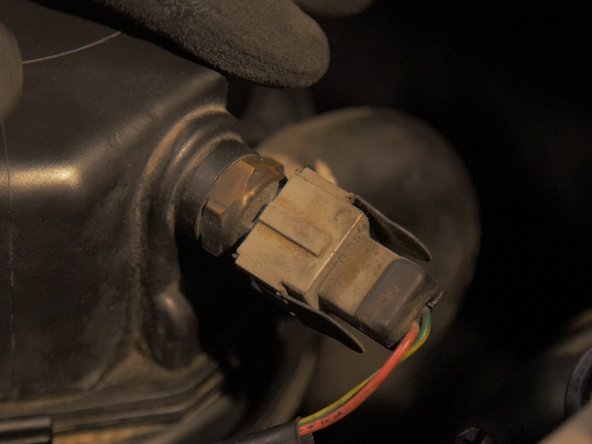

Reconnect the air temperature sensor connector to the air box cover

Your air filter is changed, it is recommended to change it on average every 20,000km

You can maintain the plastic of the air box and other ducts using WD40 or Polytrol
