Difficulty
Easy
Steps
8
Time Required
00:20:00
Ce tutoriel a été créé par la communauté
User contributed
Introduction
Something as simple as a brake light bulb is enough to result in a second MOT inspection.
To change the light only, follow steps 1 -3 -6 -7 - 8.
Tools
Parts
-
-
unscrew the 2 screws fixing the light, torx key T20
-
raise the fire
-
and tilt it slightly towards the front of the car
-
-
-
turn on the ignition
-
and press the brake to identify the faulty bulb
-
Have someone press the pedal or place a wedge between the pedal and the seat.
-
we see here that the 2 bulbs on the left are burnt out
-
Don't forget to turn off the ignition.
-
-
-

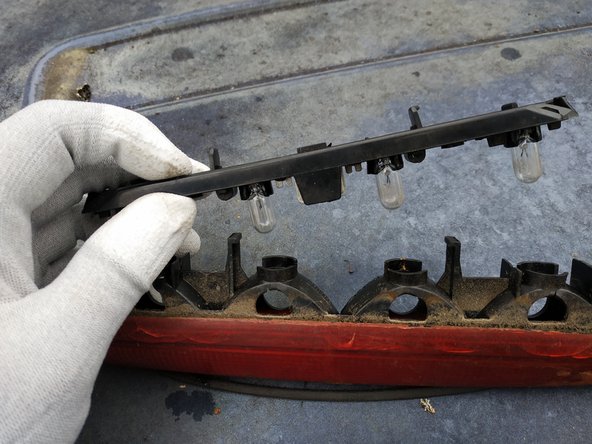

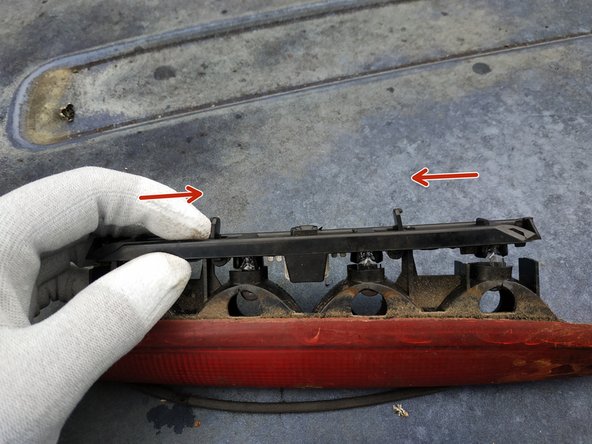

remove the faulty bulb(s) by simply pulling on them
-
The bulb has a connection direction. If in doubt, you have the other bulbs that you can use as a model.
-
put the new bulb in place by pressing it
-
These are the same bulbs as the position lights, type W5W.
-
If you want, you can temporarily plug in the board and test that everything works.
-
-
-
clean the bodywork before reassembling
-
You can also take advantage of this to clean the fire but avoid touching the plate.
-
-
-

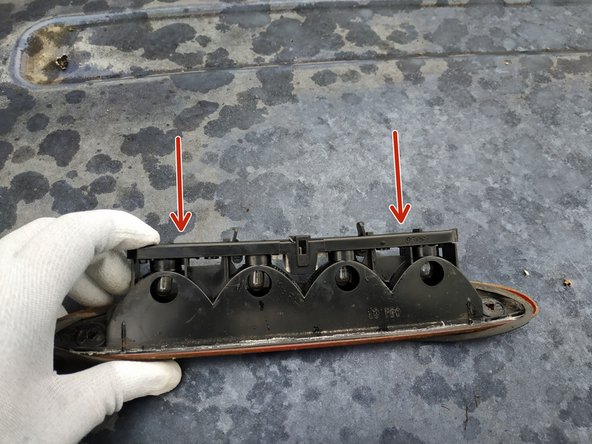

present the plate on the fire and press to lock
-

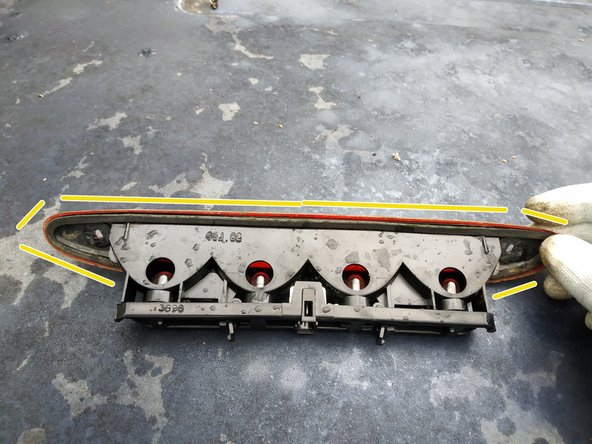

replace the seal if necessary
-

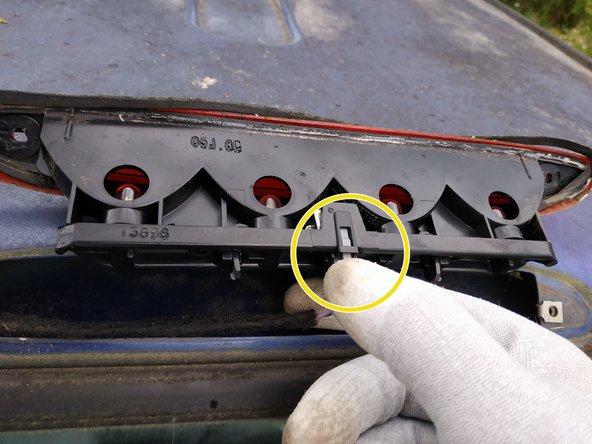

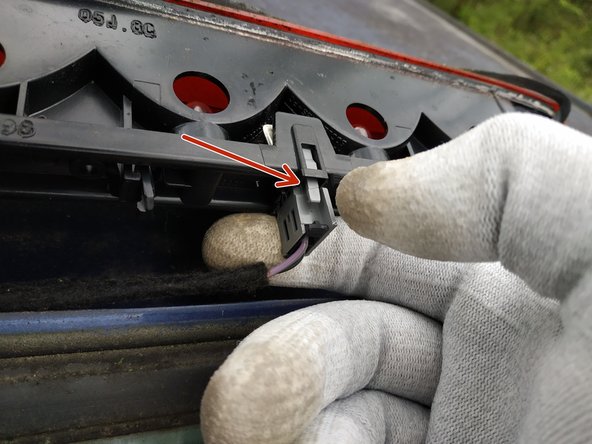

reconnect the light, the plug has a key so there is no risk of error (you just have to press, you should hear a "click" when the plug is properly engaged)
-
-
-
put the fire back in place
-
screw in the 2 fixing screws, T20 torx key
-

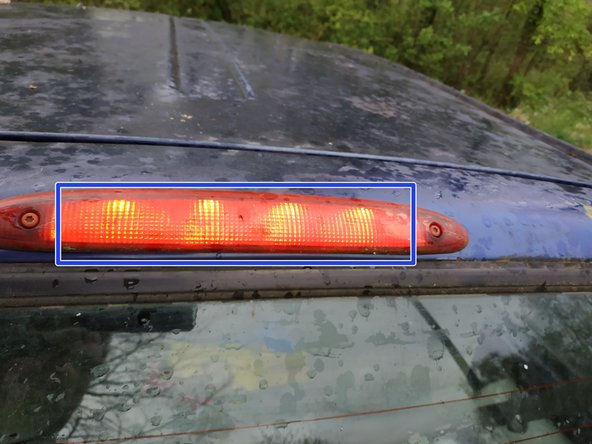

we can test that everything works if we haven't done it before
-
