Introduction
Removing the shield/bumper may seem complicated or perilous at first, but it remains relatively simple.
It's just a matter of unscrewing a few screws, unclipping a few staples and disconnecting the headlights. The most impressive thing is unclipping the shield at the wings, we're a little afraid of forcing at first.
Once you have done this once and got the hang of it, it will only take 5 to 10 minutes to remove the bumper the next time.
Parts
-
-
Raise the vehicle because we will need to access the lower part of the front bumper: Securing the vehicle
-
-
-
Open the hood to access the upper part of the front bumper.
-
Using a 10 socket wrench, unscrew the 4 screws located at the front of the shield.
-
-
-

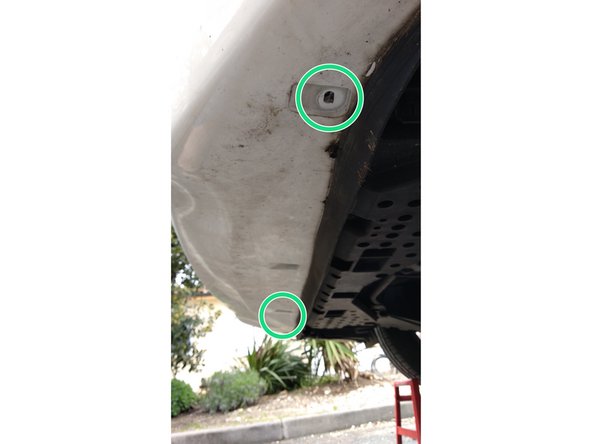

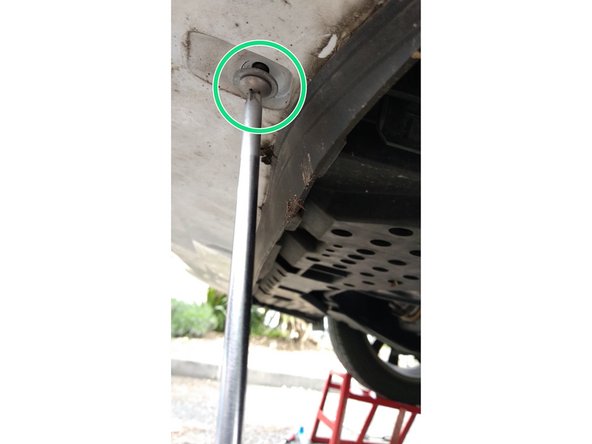

Unscrew the fixing screws under the front bumper using a Phillips screwdriver.
-
-
-

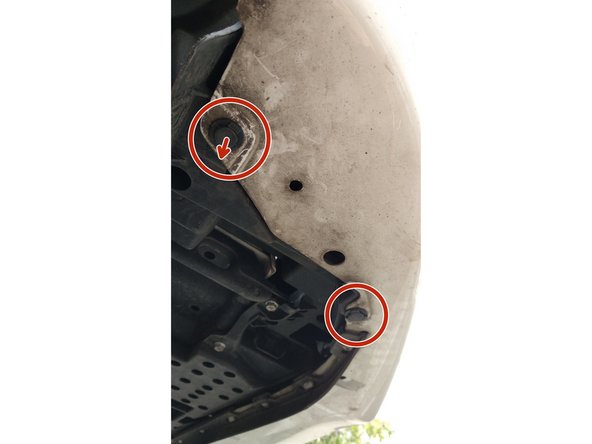

The clips holding the bumper to the black plastic front wheel arch protectors need to be removed.
-

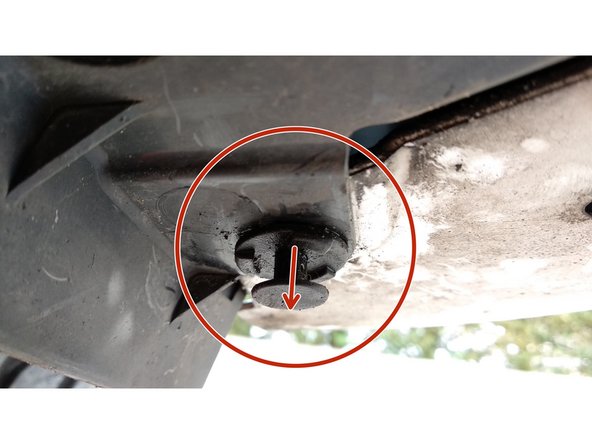

Using a suitable tool or a flat screwdriver (fairly thin), remove the clips located under the bumper on the sides.
-

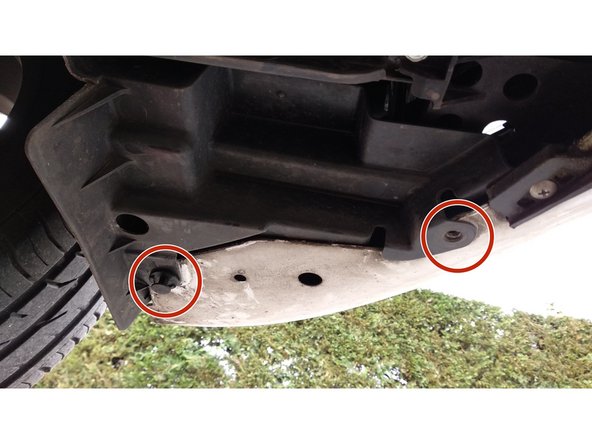

To do this, you must first pull out the central part of the staple by about 1 cm. Once the head of the staple is free, you can easily remove the entire staple by pulling towards you.
-
-
-

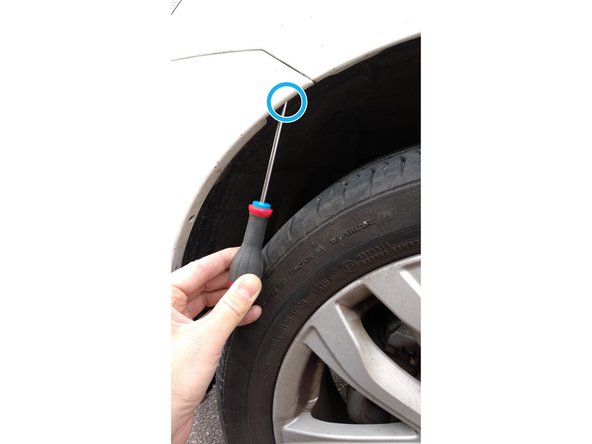

Using the Phillips screwdriver, unscrew the screw located on the edge inside the front wheel arch.
-

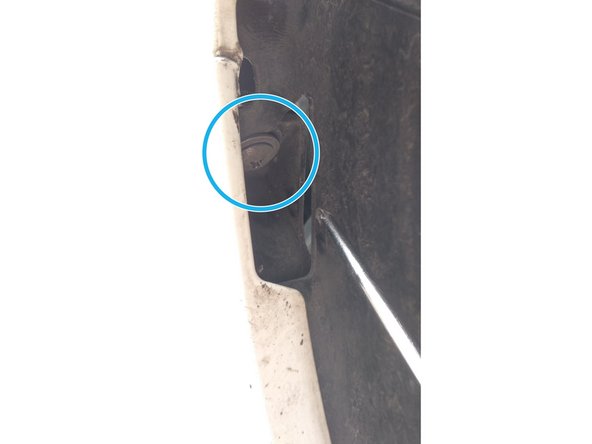

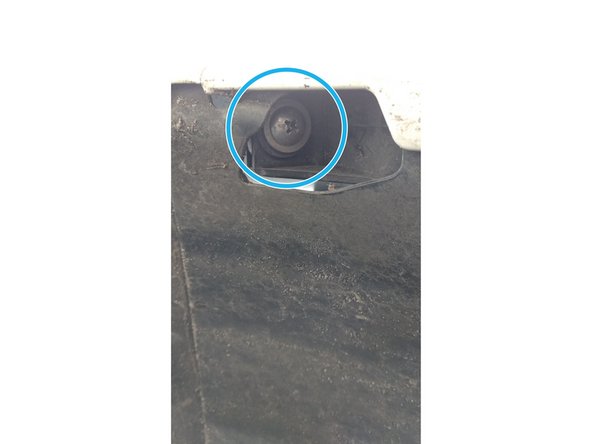

Repeat on the other wheel arch on the other side of the car.
-
-
-

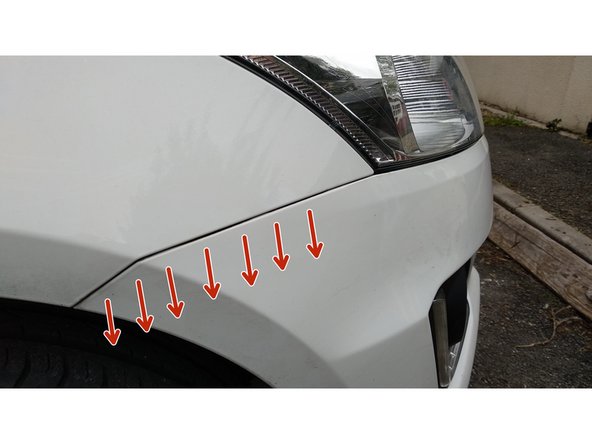

Once the screws have been removed at the wheel arch, simply unclip the front bumper at the wings.
-
To do this, simply pull gently outwards. Do it gradually.
-

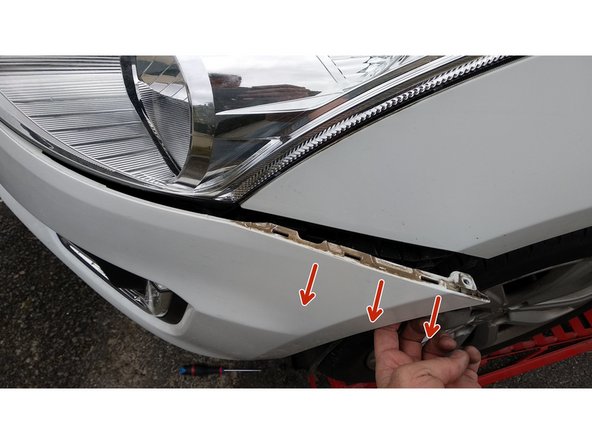

Repeat the operation on the other wing.
-
-
-
Once the 4 screws are removed, you can unclip the upper part of the shield.
-

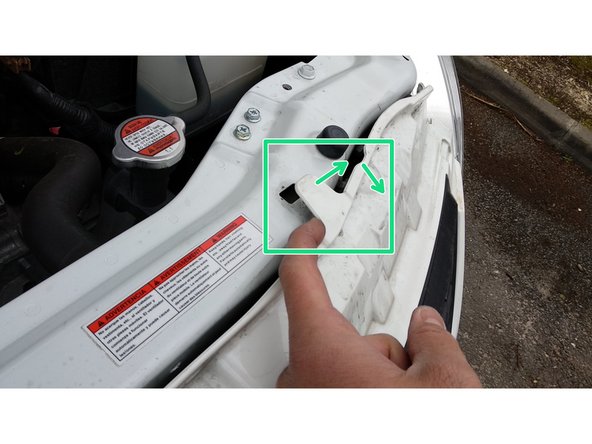

Simply lift and pull the 2 tabs.
-
-
-

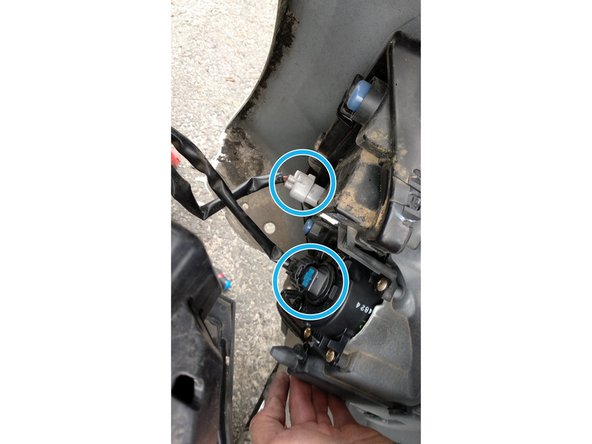

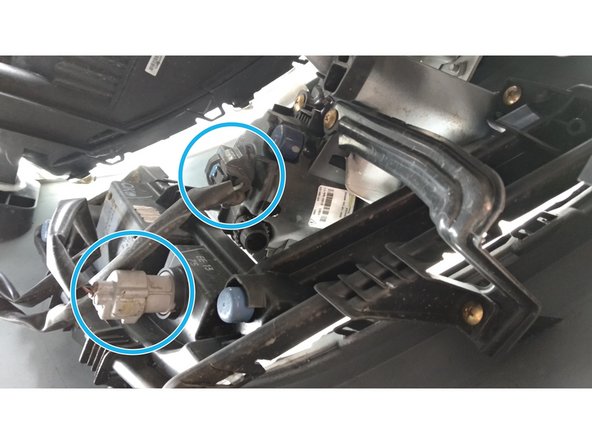

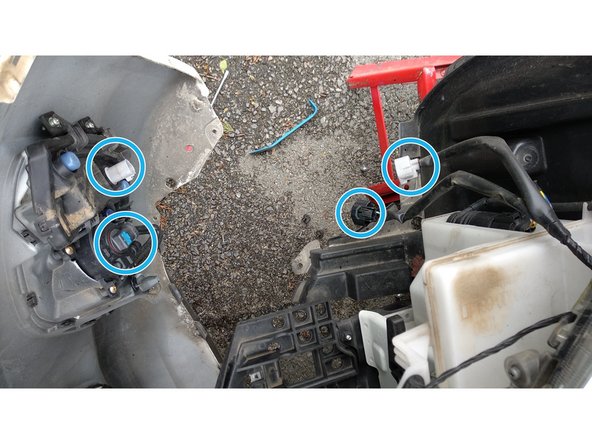

Disconnect the power cables from the front headlights and fog lights.
-
-
-
You can remove the front shield/bumper to replace the headlight or the defective bulb.
-
-
-

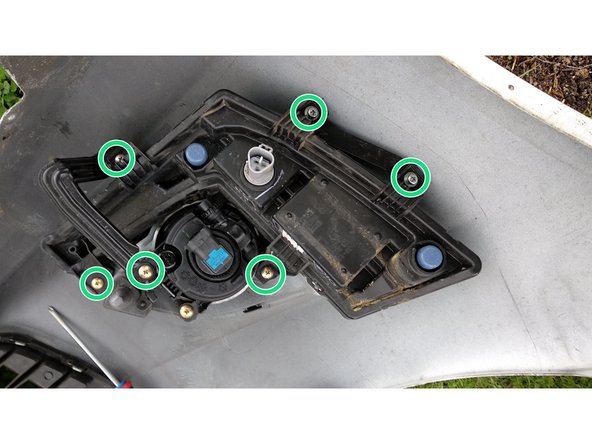

You have to unscrew the LED daytime running lights to be able to remove the fog light.
-

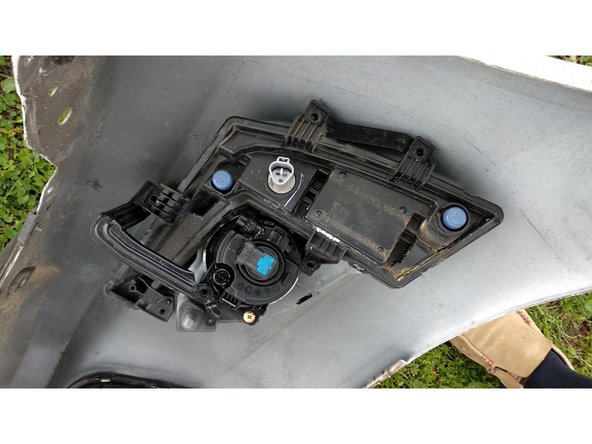

Unscrew the screws using a Phillips screwdriver.
-

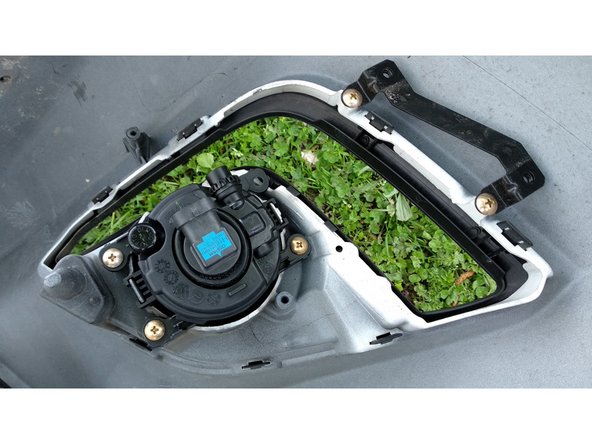

Remove the LED daytime running light.
-
-
-
Once the LED daytime running light is removed, you can access the 4 fog light screws.
-

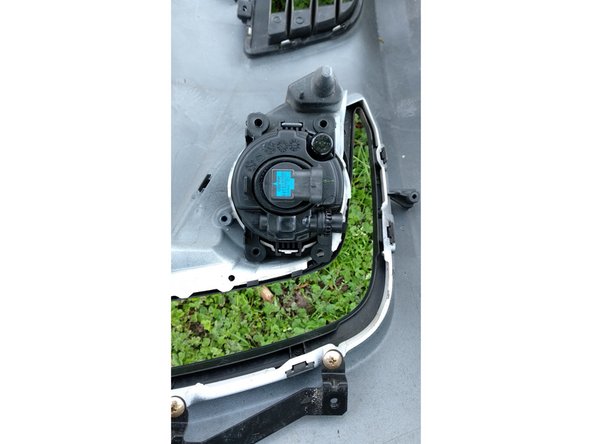

Remove the 3 fog light mounting screws
-
-
-

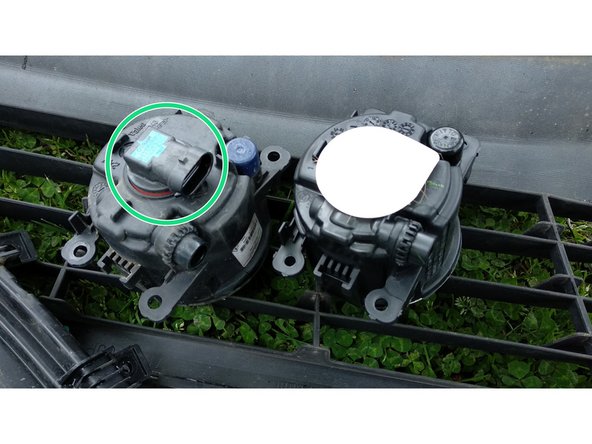

Compare the old and new fog lights to verify part match. Check part number and fixings.
-
Retrieve the fog light socket and bulb and install it on the new headlight.
-

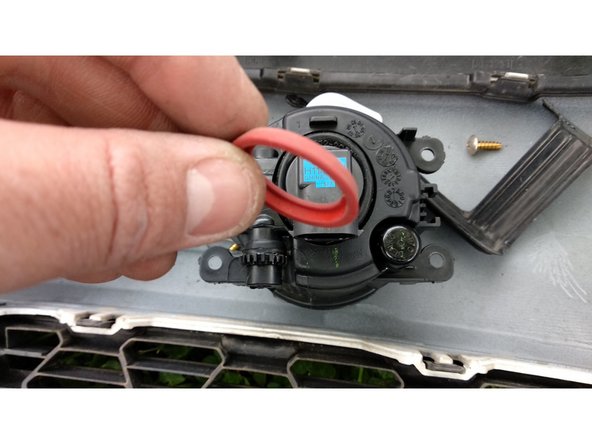

The instructions for the new projector (sold on oscaro) indicate that the original red rubber seal must be removed before installing the socket in the new projector.
-
-
-
Replace the new fog light on the bumper.
-

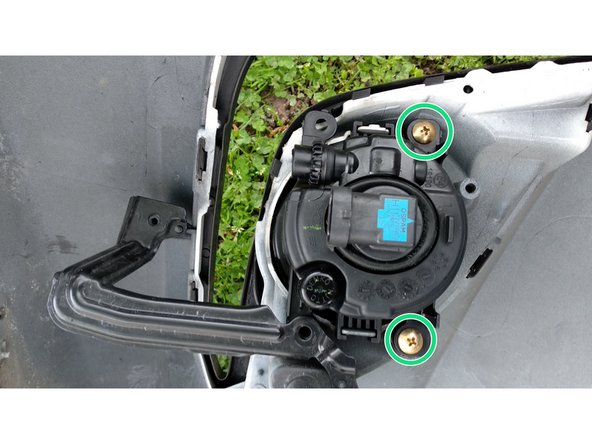

First, only tighten the 2 fixing screws.
-
-
-

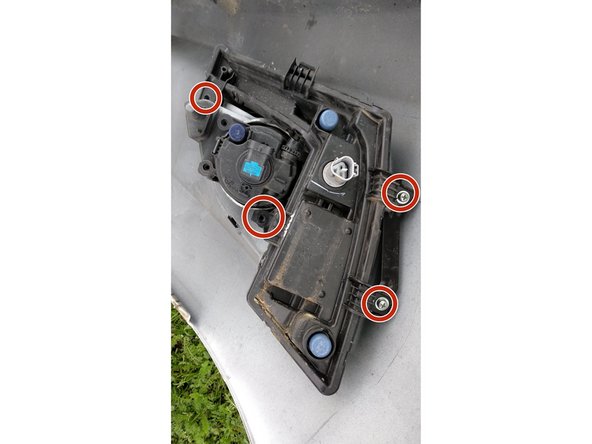

Replace the LED daytime running light and tighten the screws.
-

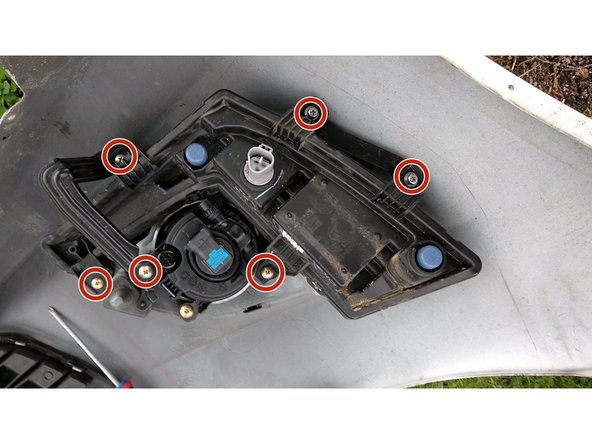

Do not forget to replace the fixing bracket correctly and the 3rd fog light fixing screw.
-
-
-

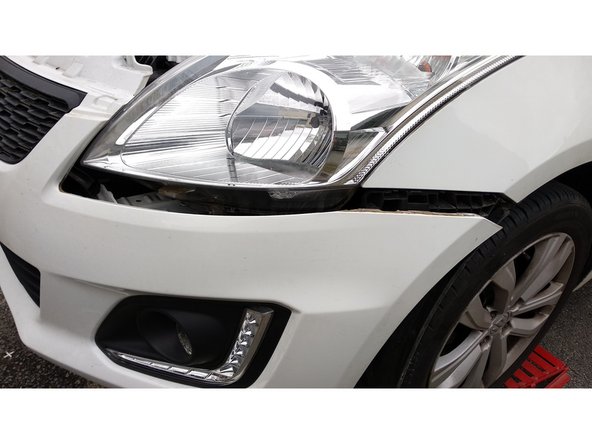

All you have to do is follow all the steps in reverse order to reassemble the bumper (starting from step 8):
-

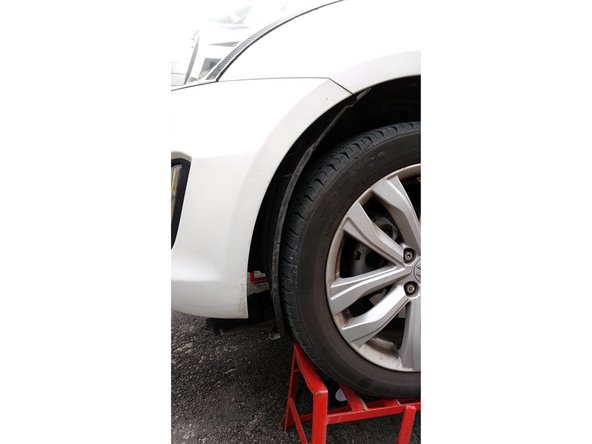

reconnect the 4 projectors
-
clip the shield at the wings and at the top.
-
Replace the clips that hold the shield to the wheel arches.
-
Tighten the screws under the bumper, the 2 screws in the wheel arches and the 4 screws on top of the shield.
-
Remember to check that the lights are working properly after your intervention before setting off. Also check the beam adjustment and its height so as not to dazzle other drivers.
-
